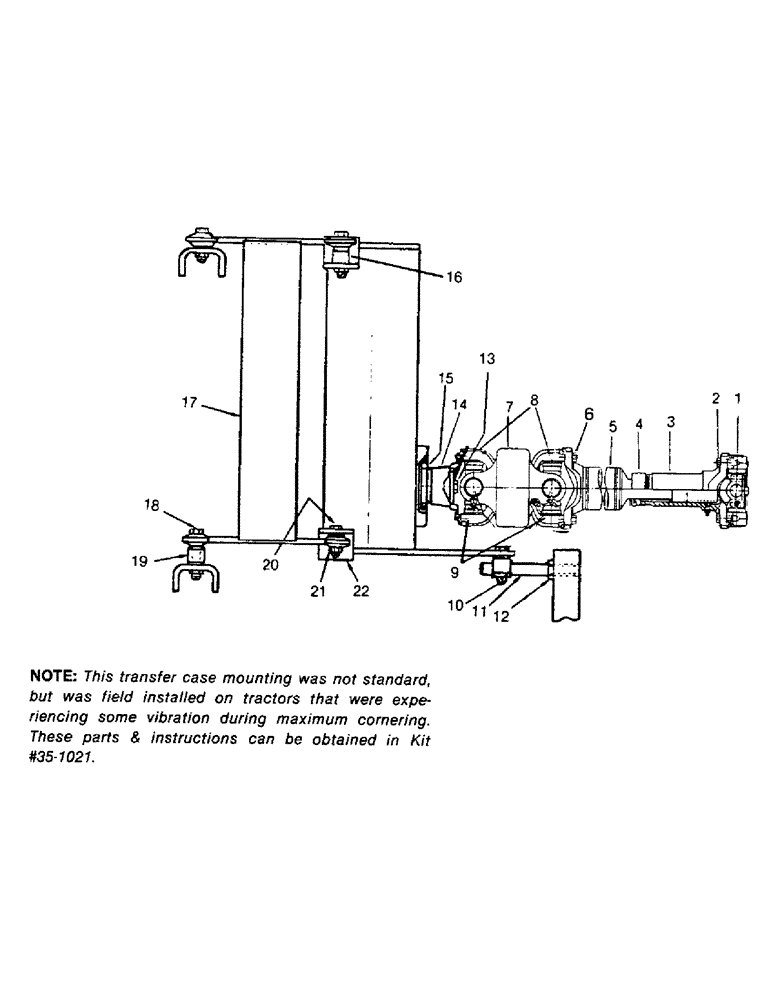

Запчасти Case IH STEIGER (04-57) - TRANSFER CASE MOUNTING, PARALLEL ARM SYSTEM WITH CONSTANT VELOCITY DRIVESHAFT (04) - Drive Train

1-9

1-2159

CV DRIVESHAFT

1шт.

7-9

1-1929

CV DOUBLE U.J. ASSY., Includes: Ref. 1 - 9

1шт.

1

17-201

BEARING

U.J. ASSY.

1шт.

2

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW

4шт.

3-4

2-1161

SLIP YOKE ASSY.

1шт.

4

02-384351

DUST CAP KIT

1шт.

5

2-1162

TUBE ASSY.

1шт.

6

9427614

CAPSCREW

4шт.

7

2-1158

COUPLING YOKE (Outer)

1шт.

8

2-1158

YOKE ASSY. (Both inner yokes)

1шт.

9

2-1159

U.J. KIT

2шт.

10

232-4136

LOCK NUT,3/8"-16, GC

CAPSCREW

2шт.

11

1-2157

ROD, steering

1шт.

12

19-1006

NUT

jam

1шт.

13

19-1122

WASHER

1шт.

42-25

GASKET

1шт.

14

1-1930

YOKE

1шт.

15

1-2622

SEAL

1шт.

16

1-2156

SPACER

2шт.

17

1-2151

ARM, mounting

2шт.

18

19-325

BOLT,Hex, 3/4" - 10 x 4", Gr 8

CAPSCREW

4шт.

19

1-2155

SPACER

4шт.

20

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

CAPSCREW

4шт.

21

19-832

BOLT

NUT

10шт.

22

1-2154

BRACKET

2шт.

23

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

CAPSCREW (6 on top & 6 on bottom of case) (Not illustrated)

12шт.

24

1-2158

SHIM (On rear axle) (Not illustrated)

2шт.

25

19-1121

BOLT,Hex, 1" - 8 x 10", Gr 8

CAPSCREW, rear axle mount (Not illustrated)

8шт.
