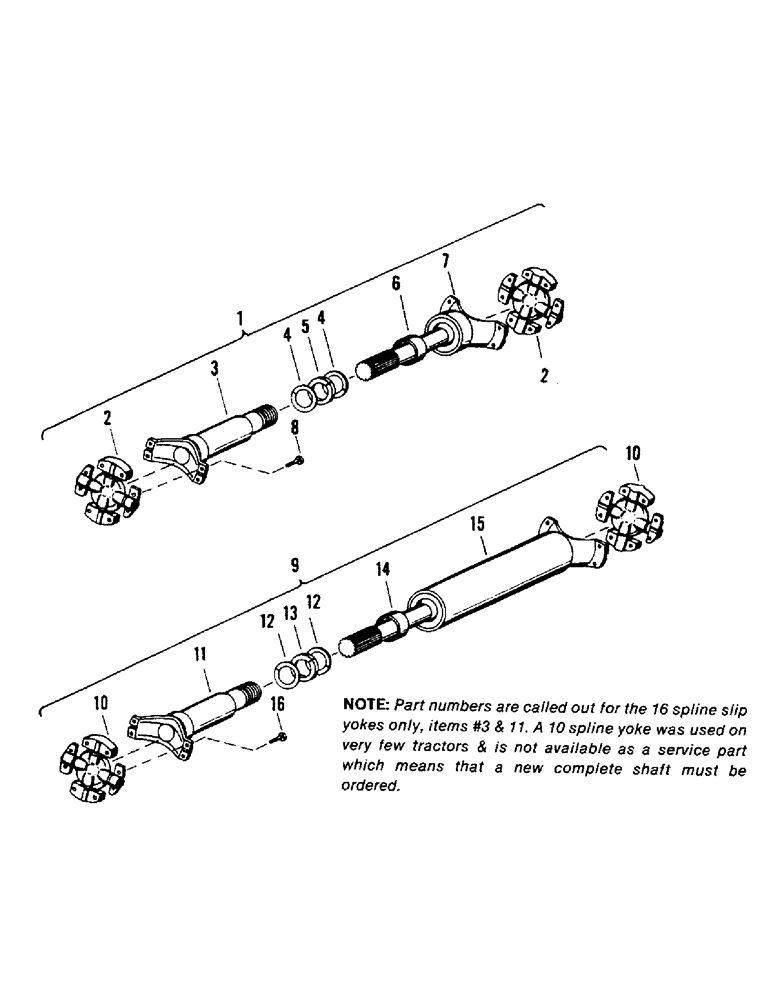

Запчасти Case IH STEIGER (04-56) - DRIVESHAFTS, MECHANICS, LATE SERIES I AND ALL SERIES II (04) - Drive Train

1

17-140

DRIVE SHAFT

DRIVESHAFT, top (Cougar & Panther)

1шт.

17-134

SHAFT

DRIVESHAFT, top (Tiger)

1шт.

2

17-156

BEARING

SPIDER & BEARING KIT

2шт.

3

17-203

SHAFT

SLIP YOKE (16 spline) (See note)

1шт.

Ref: 4,5 & 6 all part of Kit # 02-3842T1

1шт.

4

17-161

SEAL

WASHER

2шт.

5

17-162

SEAL

felt

1шт.

6

17-160

SEAL

CAP

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE ASSY.

1шт.

8

17-163

BOLT,Hex, 7/16" - 20 x 1.25", Gr 8

CAPSCREW

8шт.

9

17-137

DRIVESHAFT, bottom front (All)

1шт.

17-139

DRIVE SHAFT

DRIVESHAFT, bottom rear (Clark axles with single speed transfer case)

1шт.

17-241

DRIVE SHAFT

DRIVESHAFT, bottom rear (Use w/Dana & Raba axle w/single speed transfer case)

1шт.

17-137

DRIVESHAFT, bottom rear (Use w/clark axles w/2 speed transfer case)

1шт.

17-251

DRIVESHAFT, bottom rear (Use w/Dana & Raba axle w/2-speed transfer case)

1шт.

10

17-201

BEARING

SPIDER & BEARING KIT

2шт.

11

17-202

SLIP YOKE (16 spline) (See note)

1шт.

Ref: 12,13 & 14 all part of Kit # 02-3843T1

1шт.

12

17-171

CAP

WASHER

2шт.

13

17-172

CAP

SEAL, felt

1шт.

14

17-170

CAP

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE

1шт.

16

17-173

SCREW,Hex, 7/16" - 20 x 1.06", Gr 8

CAPSCREW

8шт.

17

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

CAPSCREW (Used to mt. spider kit to axle or transfer case flanges) (Not shown)

1шт.
