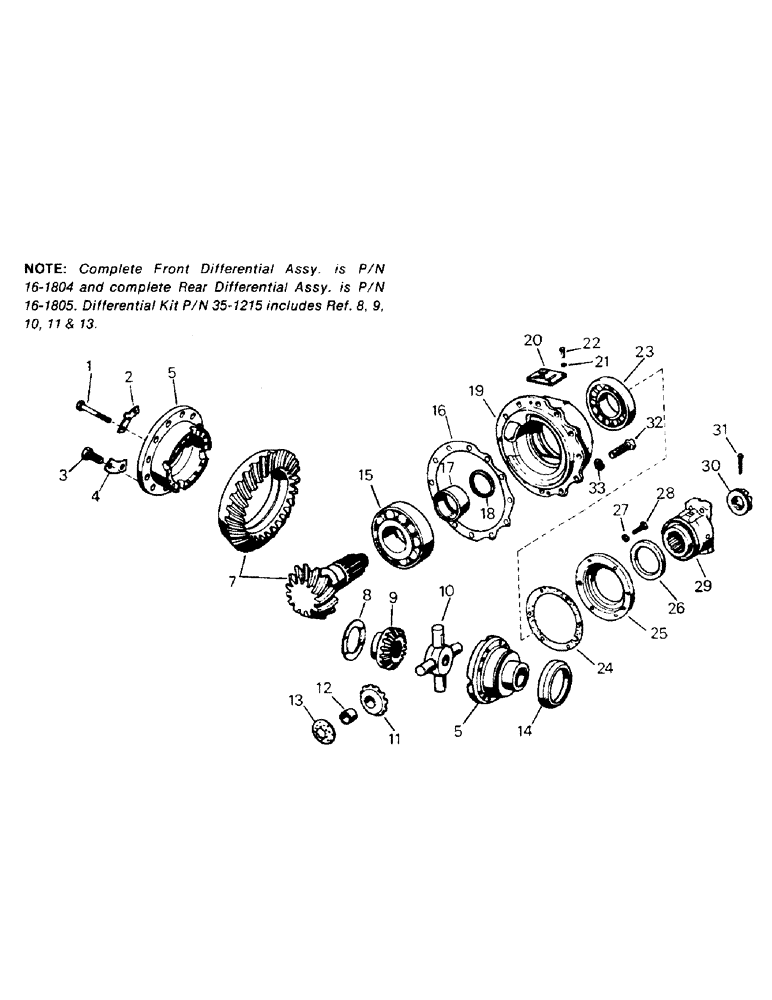

Запчасти Case IH STEIGER (04-53) - MODEL 598 DIFFERENTIAL, K-598.00/10 (04) - Drive Train

16-1547

DIFFERENTIAL

HOUSING ASSY. (Refs. 1, 2, 5, 8-14)

1шт.

1

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

HEXAGON SCREW

12шт.

2

16-1544

LARGE PLATE

LOCKING PLATE

4шт.

3

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

HEXAGON SCREW

12шт.

4

16-1546

LARGE PLATE

LOCKING PLATE

6шт.

5

16-1548

CAGE ASSY.

DIFFERENTIAL HOUSING VALVES ASSEMBLED W/REFS 1, 2, 14

1шт.

7

16-1549

GEAR

RING GEAR & PINION, rear axle, assembled w/refs 3, 4, 30, 31

1шт.

16-1550

GEAR

RING GEAR & PINION, front axle, assembled w/refs 3, 4, 30, 31

1шт.

8

16-1551

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 4.6 MM

1шт.

16-1552

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 4.7 MM

1шт.

16-1554

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 4.9 MM

1шт.

16-1555

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 5.0 MM

1шт.

16-1556

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 5.1 MM

1шт.

16-1557

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 5.2 MM

1шт.

16-1558

SPACER

RING FOR BIG DIFFERENTIAL BEVEL PINION, 5.3 MM

1шт.

9

16-1559

PINION

BIG DIFFERENTIAL BEVEL PINION

2шт.

10

16-1560

DIFF. SPIDER

SPIDER

1шт.

11

16-1561

PINION

SMALL DIFFERENTIAL PINION ASSEMBLED WITH REF. 12

4шт.

12

16-1562

BUSHING

For Small Differential Bevel Pinion

4шт.

13

16-1563

WASHER

RING FOR SMALL DIFFERENTIAL BEVEL PINION

4шт.

14

16-1564

BAFFLE

Oil, Plate

1шт.

15

16-15656

TAPERED-ROLLER BEARING

1шт.

16

16-1566

SHIM

1.00 MM

1шт.

16-1567

SHIM

.50 MM

1шт.

16-1568

SHIM

.30 MM

1шт.

16-1569

SHIM

.20 MM

1шт.

16-1570

SHIM

.25 MM

1шт.

17

16-1571

SPACER

SLEEVE

1шт.

18

16-1572

SHIM

SPACER RING FOR BEARING ADJUSTMENT, 2.05 MM

1шт.

16-1573

SPACER

RING FOR BEARING ADJUSTMENT, 2.00 MM

1шт.

16-1574

SPACER

RING FOR BEARING ADJUSTMENT, 1.00 MM

1шт.

16-1575

SPACER

RING FOR BEARING ADJUSTMENT, .50 MM

1шт.

16-1576

SPACER

RING FOR BEARING ADJUSTMENT, .20 MM

1шт.

16-1577

SPACER

RING FOR BEARING ADJUSTMENT, .10 MM

1шт.

19

16-1578

HOLDER

BEARING HOLDER

1шт.

20

16-1579

DIRECTION INDICATING PLATE

1шт.

21

16-1580

SPRING WASHER

4шт.

22

16-1581

CAPSCREW,Hex, M6 x 18mm, Gr 10.9, Full Thd

HEXAGON SCREW

4шт.

23

16-1582

TAPERED BEARING

TAPERED-ROLLER BEARING

1шт.

24

16-1583

GASKET

FOR COVER

1шт.

25

16-1584

COVER

1шт.

26

16-1585

SEALING RING

SEALING RING (83 MM inside diameter)

1шт.

1-6857

SEALING RING

SEALING RING (85 MM inside diameter)

1шт.

27

16-1586

SPRING WASHER

SPRING WASHER

6шт.

28

16-1587

CAPSCREW,Hex, M8 x 1.25 x 25mm, Gr 10.9

HEXAGON SCREW

6шт.

29

16-1588

HUB

COUPLING HUB

1шт.

1-6858

YOKE

COUPLING HUB

1шт.

30

16-1589

NUT

SLOTTED HUB

1шт.

31

16-1590

COTTER PIN,M6.3 x 63

1шт.

32

16-1591

BOLT,Hex, M14 x 1.5 x 45mm, Gr 10.9, Full Thd

HEXAGON SCREW

12шт.

33

16-1592

LOCK WASHER

SPRING WASHER

12шт.
