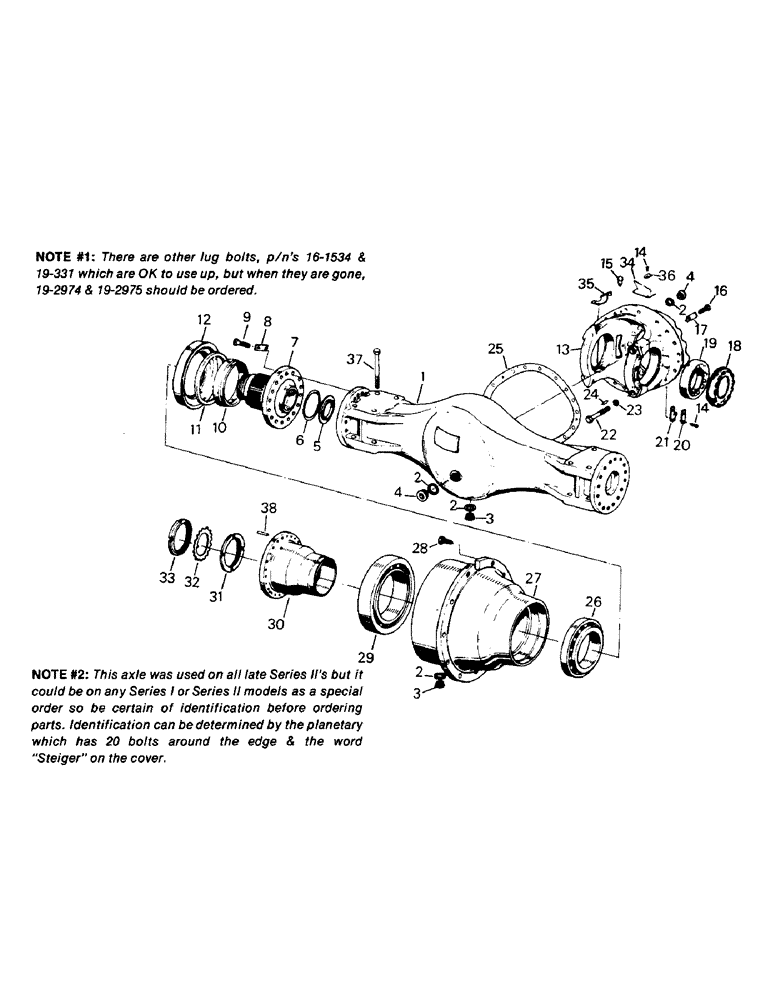

Запчасти Case IH STEIGER (04-50) - MODEL 598 AXLE ASSEMBLY, K-598.00/10 (04) - Drive Train

16-797

AXLE

FRONT AXLE ASSEMBLY

1шт.

(C) Superseded - Old part number should be used on all models prior to S/N break only. New part number should be used after S/N break. Order new part number when stock is depleted as it will work for all.

1шт.

16-798

AXLE

REAR AXLE ASSEMBLY

1шт.

(C) Superseded - Old part number should be used on all models prior to S/N break only. New part number should be used after S/N break. Order new part number when stock is depleted as it will work for all.

1шт.

16-1185

AXLE, sub-assembly (Refs. 1-9, 31-33)

1шт.

1

16-1500

AXLE HOUSING

1шт.

2

16-1501

SEALING RING

WASHER

5шт.

3

16-1502

PLUG

MAGNET SCREW PLUG

3шт.

4

16-1503

PLUG,M30 x 1.5 x 17mm

SCREW PLUG

2шт.

5

16-1504

BAFFLE PLATE

2шт.

Ref: 5 Baffle Plate is not used.

1шт.

6

16-1505

O-RING,136mm ID x 15mm Width

2шт.

7

16-1506

AXLE

STUB

2шт.

8

16-1507

WASHER

LOCKING WASHER

16шт.

9

16-1508

SCREW,Hex, M20 x 1.5 x 60mm, Cl 10.9

HEXAGON SCREW

32шт.

10

16-1509

OIL SEAL

SHOULDERING RING

2шт.

Ref: 10 Shouldering Ring includes 1-8316 Ring.

1шт.

11

16-1510

SEALING RING

SEALING RING

2шт.

12

16-1511

CASE

SEALING CASE

2шт.

13

16-1512

GEAR

DIFF. HOUSING ASSY. (Ref. 22 & 23)

1шт.

16-1513

DOWEL (Part of 16-1512)

1шт.

14

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

HEXAGON SCREW

6шт.

15

16-1518

BREATHER

THREADED VENT

1шт.

16

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

HEXAGON SCREW

18шт.

17

16-1520

WASHER

LOCKING WASHER

12шт.

16-1521

WASHER

LOCKING WASHER

6шт.

18

16-1522

SLOTTED NUT

CLAMPING RING

2шт.

19

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

TAPERED ROLLER BEARING

2шт.

20

16-1524

LARGE PLATE

LOCKING WASHER

2шт.

21

16-1525

LARGE PLATE

NOSE-TYPE LOCKING WASHER

2шт.

16-1526

LARGE PLATE

NOSE-TYPE LOCKING WASHER

2шт.

16-1527

LARGE PLATE

NOSE-TYPE LOCKING WASHER

2шт.

22

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

HEXAGON SCREW

2шт.

23

16-1529

WASHER

SPRING WASHER

2шт.

24

16-1530

DOWEL

PIN

1шт.

25

16-1531

GASKET

differential case

1шт.

26

16-1532

TAPERED BEARING,170 mm ID x 260 mm OD x 57 mm

2шт.

27

16-1533

HUB

WHEEL HUB

2шт.

28

19-2974

BOLT,Hex, 7/8" - 9 x 2 1/4", Gr 8

LUG BOLT, 7/8 x 2-1/4 UNC

20шт.

19-2975

WASHER

(Used with lug bolt) (Not shown) (See note #1)

20шт.

29

16-1535

TAPERED BEARING,220 mm ID x 340 mm OD x 76 mm

2шт.

30

16-1536

SUPPORT

RING GEAR SUPPORT ll

2шт.

31

16-1537

NUT

SHAFT END NUT

2шт.

32

16-1538

LOCK WASHER

LOCKING WASHER

2шт.

33

16-1539

NUT

SHAFT END NUT ll

2шт.

34

16-1540

OIL BAFFLING PLATE, rear

1шт.

16-1515

OIL BAFFLING PLATE, front

1шт.

35

16-1541

PLATE

BAFFLE PLATE, rear

1шт.

16-1184

PLATE

BAFFLE PLATE, front

1шт.

36

16-1542

WASHER

LOCKING WASHER

2шт.

37

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

AXLE BOLT

8шт.

19-859

LOCK NUT

axle bolt

8шт.

38

16-1514

DOWEL

PIN

8шт.

Model 598 Axle Assy is RABA.

1шт.
