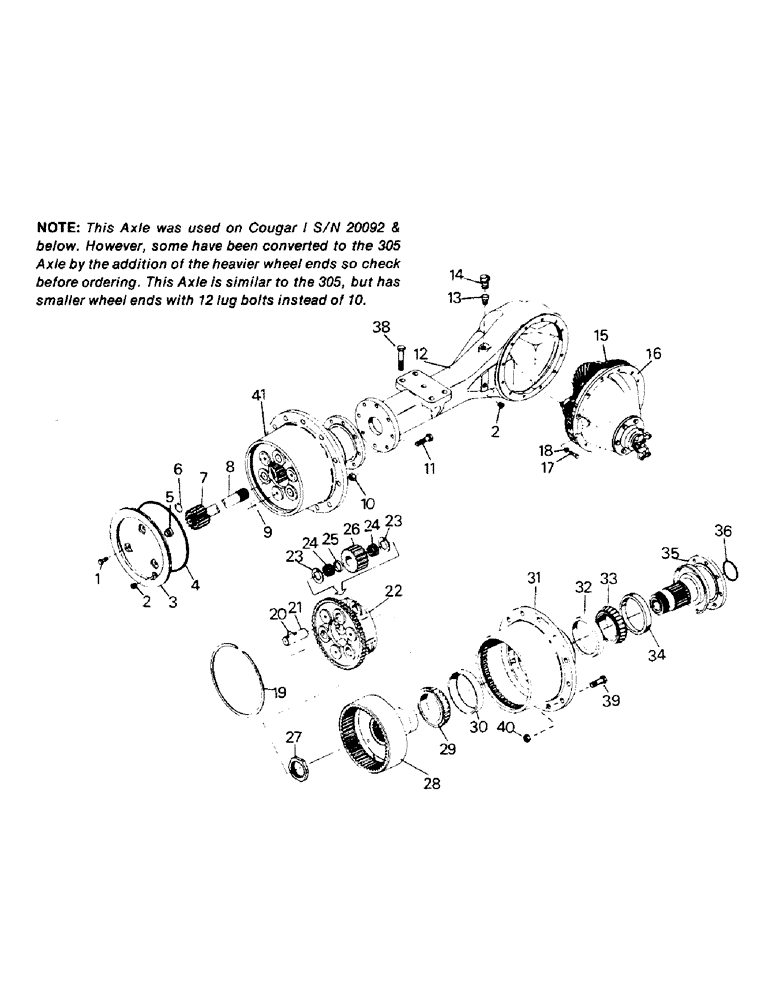

Запчасти Case IH STEIGER (04-48) - A280 AXLE ASSEMBLY (04) - Drive Train

16-501

AXLE ASSY. (6.67 CW diff. ratio)

1шт.

1

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

6шт.

2

16-383

PLUG

magnetic

4шт.

3

16-359

COVER, wheel end

2шт.

4

16-361

O-RING

wheel end cover

2шт.

5

16-360

BUTTON

thrust

2шт.

6

16-71

RING, SNAP

SNAP RING, sun gear

2шт.

7

16-598

GEAR, sun 18 teeth, 22 Splines

2шт.

8

16-597

SHAFT, axle 43 1/16" long.

2шт.

9

16-357

GASKET

wheel end

6шт.

10

19-511

NUT

LOCK NUT, 5/8 UNF

16шт.

11

19-158

BOLT,Hex, 5/8" - 18 x 2 3/4", Gr 5

CAPSCREW, 5/8 x 2-3/4 UNF

16шт.

12

16-21

AXLE HOUSING

1шт.

13

31-510

BUSHING, reducer

1шт.

14

16-22

BREATHER

1шт.

15

16-46

SCREW

GASKET, differential

1шт.

16

16-577

DIFF. ASSY., 6.67 CW ratio

2шт.

17

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

CAPSCREW, 5/8 x 1-3/4 NC

8шт.

17

19-840

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW, 5/8 x 2-1/4 NC

4шт.

18

19-120

LOCK WASHER,5/8"

5/8"

12шт.

19

16-362

SNAP RING, planetary gear carrier

2шт.

20

16-74

BALL

steel (.375 dia.)

6шт.

21

16-366

SHAFT

planetary gear

6шт.

22

16-371

CARRIER

planetary gear

2шт.

16-1801

CARRIER ASSY. (Ref. #20-26)

2шт.

23

16-367

WASHER

thrust

12шт.

24

NSS

NOT SOLD SEPARAT

BEARING, needle (Not sold separately - see Ref. 37)

336шт.

25

NSS

NOT SOLD SEPARAT

SPACER, needle bearing (Not sold separately - see Ref. 37)

6шт.

26

16-369

GEAR

planetary

6шт.

27

16-502

NUT

STAKE NUT

2шт.

28

16-372

RING GEAR

& CARRIER ASSY.

2шт.

Ref: 28 16-372 Ring Gear & Carrier Assy replaced by 90-7299t1 & 90-7300t1 Spindle with 8 holes.

1шт.

29

16-85

BEARING

CONE, bearing (Outer)

2шт.

30

16-86

BEARING, CUP

CUP, bearing (Outer)

2шт.

31

16-373

HOUSING, wheel hub

2шт.

32

16-16

BEARING

CUP, bearing (Inner)

2шт.

33

16-17

BEARING CONE

CONE, bearing (Inner)

2шт.

34

16-599

OIL SEAL

2шт.

35

16-580

SPINDLE & SLINGER ASSEMBLY

2шт.

36

16-20

O-RING

spindle

2шт.

37

35-78

SPACER

NEEDLE BEARING & SPACER KIT

6шт.

38

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

AXLE BOLT

8шт.

19-859

LOCK NUT

8шт.

39

19-584

BOLT

LUG BOLT, 7/8 x 3 UNF

24шт.

40

231-46114

LOCK NUT,7/8"-14, GB

LUG NUT, 7/8 UNF

24шт.

41

16-520

WHEEL END (Ref. #1-7, 9, 19-36)

2шт.

Wheel has 12 machined holes

1шт.
