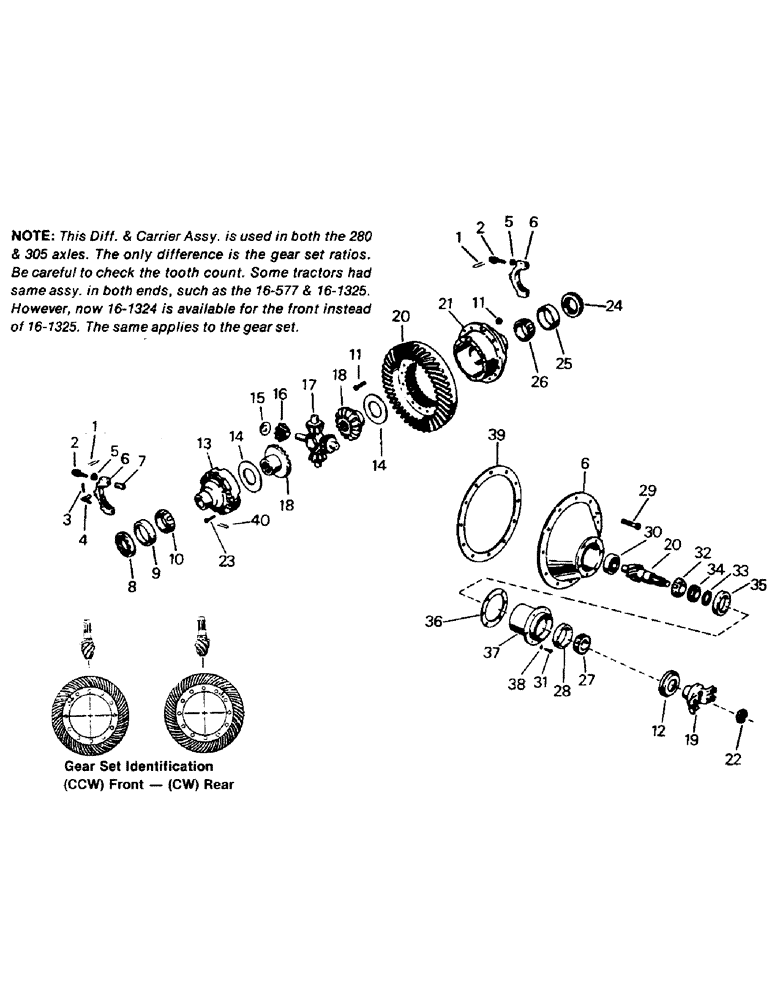

Запчасти Case IH STEIGER (04-46) - 280 AND 305 DIFFERENTIAL AND CARRIER ASSYEMBLY (04) - Drive Train

1

NAP

LOCKWIRE

4шт.

2

16-24

CAPSCREW

4шт.

3

16-25

PIN, SPLIT (COTTER)

COTTER PIN

2шт.

4

16-26

LOCK

adjuster

2шт.

5

16-64

WASHER

4шт.

6

16-27

DIFFERENTIAL CARRIER (with caps)

1шт.

16-419

SCREW (Not shown)

2шт.

16-1192

TROUGH (Not shown) (Used on 16-1325 only)

1шт.

16-1193

TROUGH (Not shown) (Used on 16-1324 only)

1шт.

7

16-65

BUSHING

2шт.

8

16-28

ADJUSTER

bearing R.H.

1шт.

9

16-29

BEARING

CUP, bearing

1шт.

10

16-30

CONE

bearing

1шт.

11

16-40

KIT

BOLT & NUT KIT

1шт.

12

16-60

SEAL

oil

1шт.

13

16-32

WASHER

CASE, differential (Plain)

1шт.

Ref: 13 & 21 Should be ordered only as a pair.

1шт.

14

16-33

THRUST WASHER

thrust

2шт.

15

16-35

THRUST WASHER

thrust

4шт.

35-1214

KIT

(14-18) KIT, diff. nest

1шт.

Ref: 14-18 Available with 10 & 18 teeth or 16 & 9 teeth.

1шт.

19

17-210

YOKE (Mechanics style) (Illustrated)

1шт.

16-61

YOKE (Spicer style) (Not illustrated) (Used on earlier series l only)

1шт.

20

16-41

GEAR-SET

GEAR SET (6 x 40 CW) (16-577 diff.)

2шт.

16-858

GEAR SET (7 x 38 CW) (16-577 diff.)

1шт.

16-857

GEAR SET (7 x 38 CCW) (16-847 diff.)

1шт.

16-859

GEAR SET (6 x 37 CW) (16-848 diff.)

1шт.

16-860

GEAR SET (6 x 37 CCW) (16-849 diff.)

1шт.

16-861

GEAR SET (8 x 39 CW) (16-1325 diff.)

1шт.

16-1195

RING

GEAR SET (8 x 39 CCW) (16-1324 diff.)

1шт.

21

16-38

CASE

diff. (Flanged)

1шт.

Ref: 13 & 21 Should be ordered only as a pair.

1шт.

22

1-1967

NUT

(Replaces 16-063 nut & 16-062 cotter pin)

1шт.

23

16-42

BOLT,9/16" x 3 5/16"

CAPSCREW

12шт.

24

16-45

ADJUSTER, bearing L.H.

1шт.

25

16-44

BEARING

CUP, bearing

1шт.

26

16-43

ROLLER BEARING

CONE, bearing

1шт.

27

16-57

CONE

bearing

1шт.

28

16-56

BEARING CUP

CUP, bearing

1шт.

29

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

CAPSCREW, 5/8 x 2 UNC

8шт.

19-58

BOLT,5/8" - 11 x 2 1/4", Gr 5

CAPSCREW, 5/8 x 2-1/4 UNC

4шт.

30

16-47

ROLLER BEARING

BEARING

1шт.

31

16-55

BOLT,Hex, 5/8" - 11 x 1.75", Gr 5

CAPSCREW

6шт.

32

16-48

CONE, bearing

1шт.

33

16-218

WASHER

SPACER (.176)

1шт.

16-219

WASHER

SPACER (.177)

1шт.

16-220

WASHER

SPACER (.178)

1шт.

16-221

WASHER

SPACER (.179)

1шт.

16-222

WASHER

SPACER (.180)

1шт.

16-223

WASHER

SPACER (.181)

1шт.

16-224

WASHER

SPACER (.182)

1шт.

16-225

WASHER

SPACER (.183)

1шт.

16-226

WASHER

SPACER (.184)

1шт.

16-227

WASHER

SPACER (.185)

1шт.

16-228

WASHER

SPACER (.186)

1шт.

16-229

WASHER

SPACER (.187)

1шт.

16-230

WASHER

SPACER (.188)

1шт.

16-231

WASHER

SPACER (.189)

1шт.

16-232

WASHER

SPACER (.190)

1шт.

16-233

WASHER

SPACER (.191)

1шт.

16-234

WASHER

SPACER (.192)

1шт.

16-235

WASHER

SPACER (.193)

1шт.

16-236

WASHER

SPACER (.194)

1шт.

16-237

WASHER

SPACER (.195)

1шт.

34

16-50

SPACER

1шт.

35

16-51

BEARING

CUP, bearing

1шт.

36

16-52

SHIM

(.003)

1шт.

16-245

SHIM

(.005)

1шт.

16-246

SHIM

(.010)

1шт.

16-247

SHIM

(.020)

1шт.

16-248

SHIM

(.030)

1шт.

37

16-53

CAGE

(With cups)

1шт.

38

16-54

LOCK WASHER

LOCK WASHER

6шт.

39

16-46

SCREW

GASKET, carrier

1шт.

40

NAP

LOCKWIRE

1шт.
