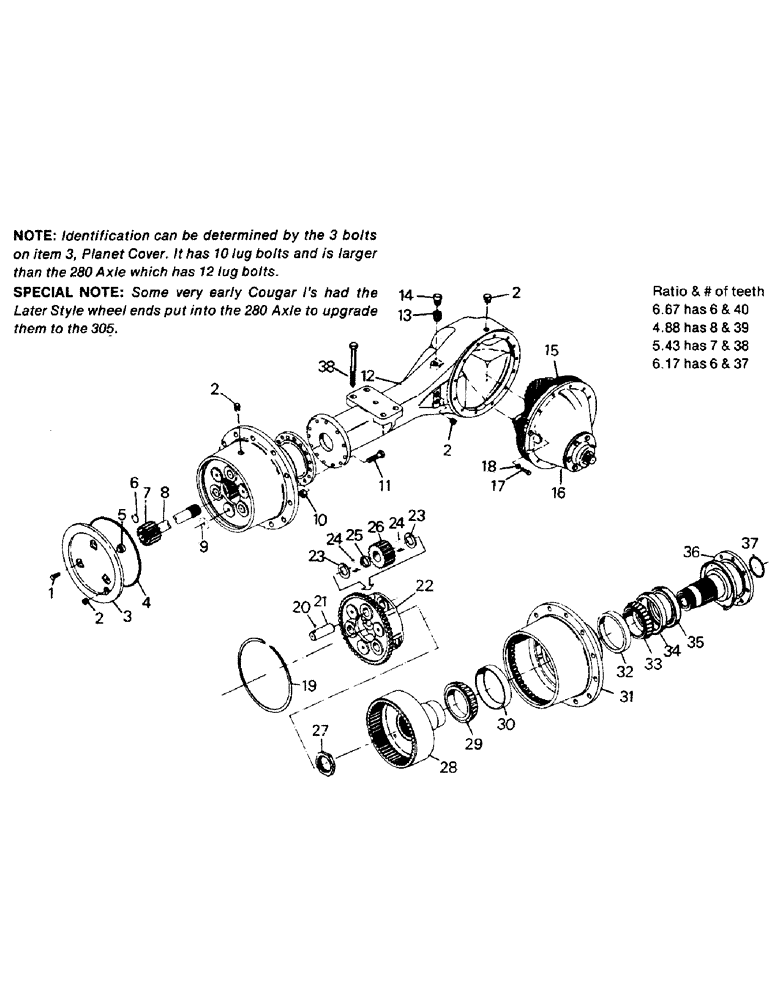

Запчасти Case IH STEIGER (04-43) - A305 AXLE ASSEMBLY (04) - Drive Train

16-14

AXLE ASSY., 6.67 CW gear set ratio

2шт.

16-862

AXLE ASSY., 4.88 CW gear set ratio

2шт.

16-1385

AXLE ASSY., 6.17 CCW gear set ratio

1шт.

16-1386

AXLE ASSY., 6.17 CW gear set ratio

1шт.

16-1387

AXLE ASSY., 5.43 CCW gear set ratio

1шт.

16-1388

AXLE ASSY., 5.43 CW gear set ratio

1шт.

1

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

6шт.

2

16-383

PLUG

magnetic

9шт.

3

16-842

COVER

wheel end (Replaces 16-067)

2шт.

4

16-69

O-RING

wheel end cover

2шт.

5

16-360

BUTTON

thrust

2шт.

6

16-71

RING, SNAP

SNAP RING, sun gear

2шт.

7

16-601

GEAR

sun

2шт.

8

16-73

SHAFT, axle, 44.25" long with 22 teeth and has a 2 1/4 shaft Dia.

2шт.

9

16-357

GASKET

planet pins

3шт.

10

19-511

NUT

LOCKNUT, 5/8 UNF

24шт.

231-46112

LOCK NUT,3/4"-16, GB

LOCKNUT, 3/4 UNF

24шт.

11

19-158

BOLT,Hex, 5/8" - 18 x 2 3/4", Gr 5

CAPSCREW, 5/8 x 2-3/4 UNF

24шт.

19-838

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 8

CAPSCREW, 3/4 x 2-3/4 UNF

24шт.

12

16-21

HOUSING (Used 5/8" spindle mt. bolt)

1шт.

16-843

HOUSING (Used 3/4" spindle mt. bolt) (If 16-021 is not available, 16-843 can be used but should use 3/4" bolts & drill out holes in spindle)

1шт.

13

31-510

BUSHING

1шт.

14

16-22

BREATHER

1шт.

15

16-46

SCREW

GASKET

1шт.

16

16-577

DIFF. ASSY., 6.67 CW ratio (Cougar I, Tiger I & Early Tiger II, both axles)

1шт.

16-845

DIFFERENTIAL

DIFF. ASSY., 4.88 CW ratio

1шт.

16-1324

DIFFERENTIAL

DIFF. ASSY., 4.88 CCW ratio (Early Panther II only) (Some had CW in both axles but CCW should be ordered for servicing the front)

1шт.

16-846

DIFF. ASSY., 5.43 CW ratio

1шт.

16-847

DIFF. ASSY., 5.43 CCW ratio (Later Panther II only)

1шт.

16-848

DIFF. ASSY., 6.17 CW ratio

1шт.

16-849

DIFF. ASSY., 6.17 CCW ratio (Later series II Tiger)

1шт.

17

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

CAPSCREW, 5/8 x 1-3/4 UNC

8шт.

19-840

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW, 5/8 X 2-1/4 UNC

4шт.

18

19-120

LOCK WASHER,5/8"

5/8"

12шт.

19

16-70

SNAP RING, planetary gear carrier

2шт.

16-1800

PLANET CARRIER

(20-26) PLANETARY ASSEMBLY, Includes: Ref. 20 - 26

1шт.

20

16-74

BALL

steel (.375 dia.)

6шт.

21

16-75

SHAFT

planetary gear

6шт.

22

16-602

CARRIER

planetary gear

2шт.

23

16-76

WASHER

thrust

12шт.

24

16-77

BEARING

needle

312шт.

25

16-79

SPACER

needle bearing

6шт.

26

16-600

GEAR

planetary

6шт.

27

16-502

NUT

STAKE NUT

2шт.

28

16-84

RING GEAR & CARRIER ASSY. (Early style)

2шт.

16-851

RING ASSY.

RING GEAR & BARRIER ASSY. (Later style) (See note #1)

2шт.

29

16-85

BEARING

CONE, bearing

2шт.

30

16-86

BEARING, CUP

CUP, bearing

2шт.

31

16-852

HOUSING, wheel hub (Replaces earlier #16-015)

2шт.

Ref. 31 subs to 90-7302T1 and 90-7301T1 - per vendor, has 20 bolt holes with a 20-1/8" bolt circle. Older style may have had 10 bolt holes but will work - just have to line up holes properly and use 10 bolts instead of 20.

1шт.

32

16-16

BEARING

CUP, bearing

1шт.

33

16-17

BEARING CONE

CONE, bearing (Early style)

2шт.

16-853

BEARING, ROLLER

CONE, bearing (Later style, used only when Ref. 35 is also used)

2шт.

34

16-18

OIL SEAL

.625 wide

2шт.

16-599

OIL SEAL

1.25 wide

2шт.

35

16-854

SPACER

(Used only on later style axle)

2шт.

36

16-19

SPINDLE (Early style) 12 machined holes

2шт.

16-855

SPINDLE (Later style) 12 machined holes

2шт.

37

16-20

O-RING

spindle

2шт.

38

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

axle mount

8шт.

19-859

LOCK NUT

axle mount

8шт.

39

16-1666

WHEEL END (Incl. 1-7, 9, 19-37)

2шт.

19-260

BOLT,Hex, 7/8" - 14 x 3", Gr 8

LUG BOLT, 7/8 x 3 UNF (Not shown)

20шт.

231-46114

LOCK NUT,7/8"-14, GB

LUG NUT, 7/8 UNF (Not shown)

20шт.
