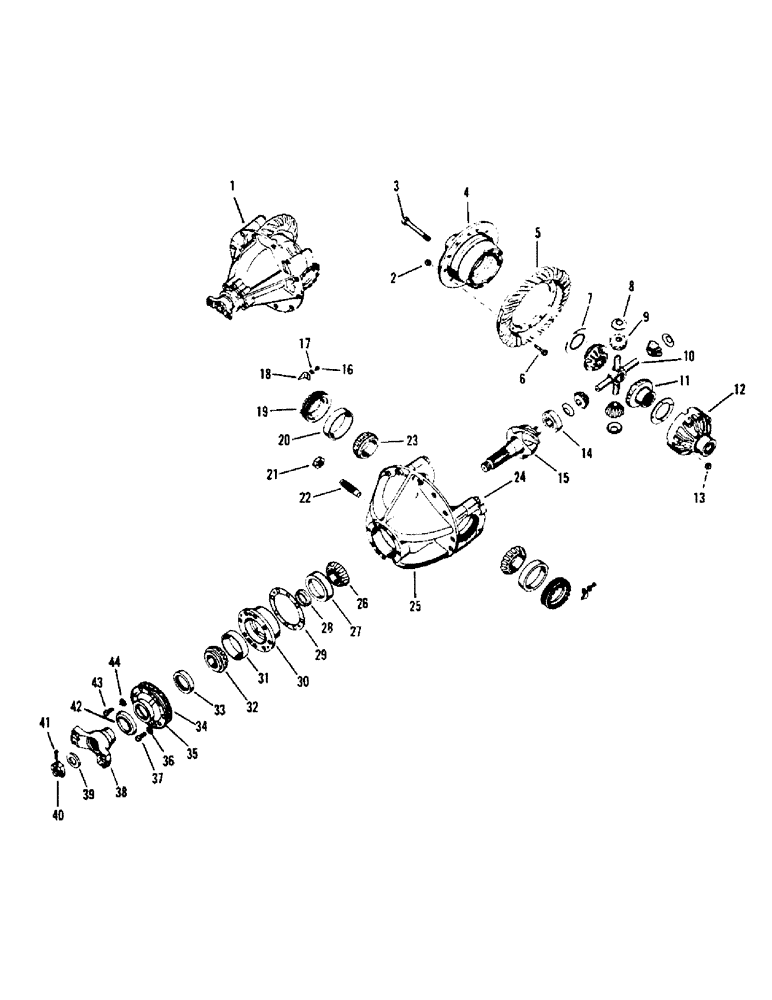

Запчасти Case IH STEIGER (04-41) - DIFFERENTIAL AND CARRIER ASSEMBLY, CLARK (04) - Drive Train

1

16-1201

DIFF. & CARRIER ASSY., front

1шт.

16-1201

DIFF. & CARRIER ASSY., rear (6 x 38 gear set ratio & 27 spline side gears)

1шт.

35-1057

DIFFERENTIAL ASSY

DIFF. & CARRIER ASSY., front

1шт.

35-1056

DIFF. & CARRIER ASSY., rear (8 x 37 gear set ratio w/27 spline side gears)

1шт.

16-758

DIFF. & CARRIER ASSY., front

1шт.

16-778

DIFF. & CARRIER ASSY., rear (8 x 37 gear set ratio w/46 spline side gears) (Cougar II 20620 & up)

1шт.

2

16-145

NUT

ring gear

12шт.

3

16-1235

CAPSCREW

8шт.

Are not in kit.

1шт.

4

NSS

NOT SOLD SEPARAT

See ref. 48

1шт.

5

NSS

NOT SOLD SEPARAT

See ref. 47

1шт.

6

16-148

BOLT

ring gear

12шт.

7

16-1236

WASHER, thrust

2шт.

8

16-1237

WASHER

pinion thrust

4шт.

9

16-1238

GEAR

KIT, pinion

1шт.

10

16-1239

SPIDER, diff.

1шт.

11

16-1240

GEAR

SIDE GEAR (27 spline)

2шт.

16-763

GEAR

SIDE GEAR (46 spline)

2шт.

12

NSS

NOT SOLD SEPARAT

See ref. 48

1шт.

13

16-1242

NUT

8шт.

14

16-1243

BEARING

inner pinion

1шт.

15

NSS

NOT SOLD SEPARAT

See ref. 47

1шт.

16

16-555

BOLT

CAPSCREW

2шт.

17

16-554

LOCKWASHER

2шт.

18

16-139

LOCK, adjusting

2шт.

19

19-1266

NUT, diff. adjusting

2шт.

20

16-1233

BEARING

CUP

2шт.

21

16-184

NUT

1шт.

22

16-183

SCREW

thrust

1шт.

23

16-1234

CONE

bearing

2шт.

24

16-556

CAPSCREW, carrier cap

4шт.

16-1245

LOCKWASHER

4шт.

25

16-1246

CARRIER ASSY. (W/ref. 24)

1шт.

26

16-1247

BEARING, ROLLER

CONE, bearing

1шт.

27

16-1248

CUP, bearing

1шт.

28

16-1249

SPACER

KIT, pinion bearing spacer

1шт.

29

16-1250

SHIM

thin

1шт.

16-1360

SHIM

medium

1шт.

16-1359

SHIM, thick

1шт.

30

16-1253

CAGE ASSY.

1шт.

31

16-1254

BEARING, CUP

CUP, bearing

1шт.

32

16-1255

BEARING, CONE

CONE, bearing

1шт.

33

16-1256

OIL SEAL

SEAL, oil

1шт.

34

NA

NOT SERVICED

GASKET (Use Permatex)

1шт.

35

16-1264

RETAINER, oil seal

1шт.

36

16-299

LOCKWASHER

7шт.

37

16-1257

CAPSCREW

7шт.

38

17-136

YOKE (Mechanics style)

1шт.

16-1262

YOKE (Spicer style) (Early series I)

1шт.

39

16-1261

WASHER, flange

1шт.

40

16-1259

NUT, pinion

1шт.

41

16-1260

KEY, cotter

1шт.

42

16-1258

SHIELD, dust

1шт.

43

16-1263

CAPSCREW

1шт.

44

16-180

WASHER

LOCKWASHER

1шт.

45

16-1267

DIFF. ASSY. (Not stocked)

1шт.

46

16-1268

DIFF. BODY SUB ASSY. (3, 4, 6-13)

1шт.

47

16-1269

GEAR SET, front (6 x 38 ratio)

1шт.

16-1272

GEAR SET, rear (6 x 38 ratio)

1шт.

16-1356

GEAR SET, front (8 x 37 ratio)

1шт.

16-1357

GEAR SET, rear (8 x 37 ratio)

1шт.

48

16-1270

KIT

CASE KIT (3, 4, 7, 8, 12 & 13)

1шт.
