(04-40) - PLANETARY SPIDER ASSEMBLY, CLARK, LATER STYLE, COUGARS AND TIGERS

Запчасти Case IH STEIGER (04-40) - PLANETARY SPIDER ASSEMBLY, CLARK, LATER STYLE, COUGARS AND TIGERS (04) - Drive Train

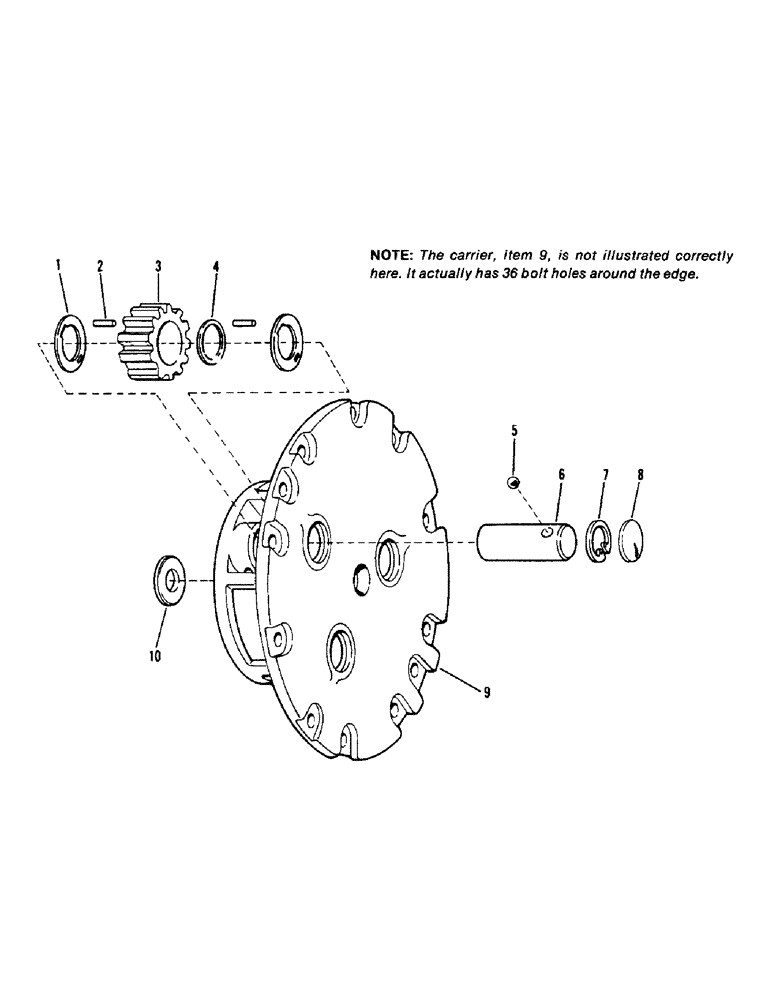

Схема запчастей Case IH STEIGER - (04-40) - PLANETARY SPIDER ASSEMBLY, CLARK, LATER STYLE, COUGARS AND TIGERS (04) - Drive Train
1
5
7
6
10
8
4
9
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

16-751

CARRIER

ASSY., planet carrier

1шт.

1

16-769

THRUST WASHER

6шт.

2

16-770

ROLLER

NEEDLE, roller

186шт.

3

16-771

GEAR, planet pinion

3шт.

4

16-772

SPACER

3шт.

5

16-773

LOCK

BALL

3шт.

6

16-774

SHAFT

planet pinion

3шт.

7

16-775

SNAP RING

3шт.

8

16-776

PLUG

3шт.

9

16-777

CARRIER, planet

1шт.

10

16-574

WASHER

thrust

1шт.

Выбрано товаров: 11
