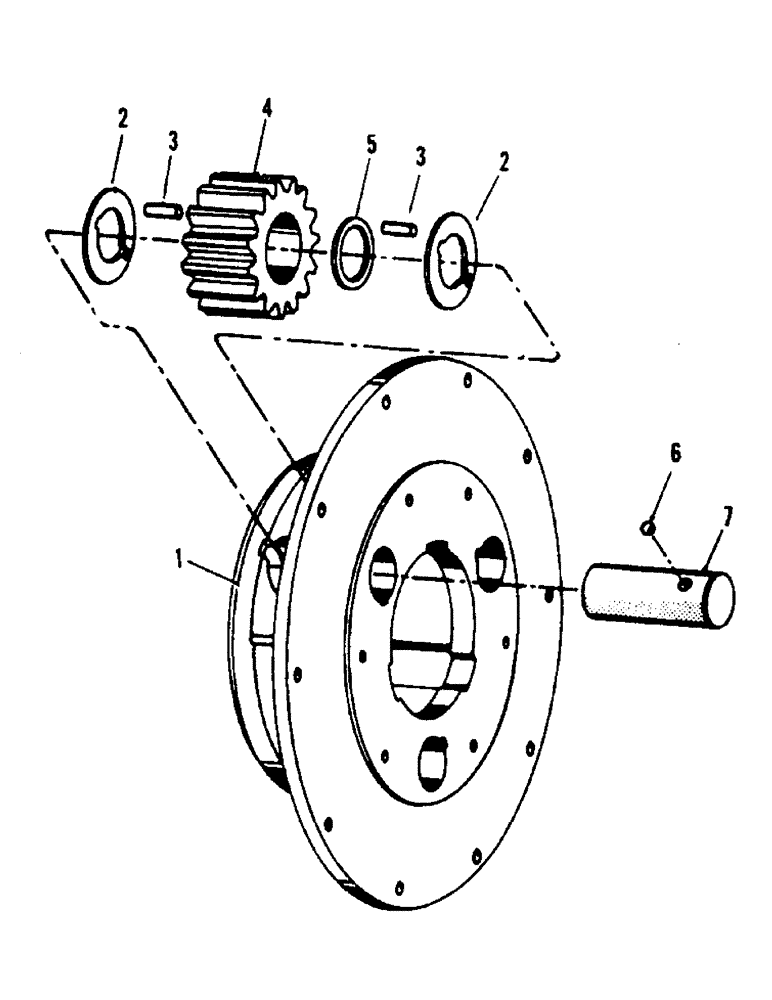

/ / / / / / / / (04-39) - PLANETARY SPIDER ASSEMBLY, CLARK, EARLY STYLE, COUGARS AND TIGERS
Запчасти Case IH STEIGER (04-39) - PLANETARY SPIDER ASSEMBLY, CLARK, EARLY STYLE, COUGARS AND TIGERS (04) - Drive Train
7
4
2
5
3
1
2
3
6
16-1212
PLANET CARRIER
ASSY., planet carrier
1шт.
1
16-190
CARRIER
SPIDER, planet
2шт.
2
16-191
RETAINER
WASHER, thrust
12шт.
3
16-192
ROLLER
ROLL, needle
300шт.
4
16-1271
PINION
planet
6шт.
5
16-194
SPACER
roll
6шт.
6
16-195
LOCK
BALL, lock
6шт.
7
16-196
SHAFT
pinion
6шт.
