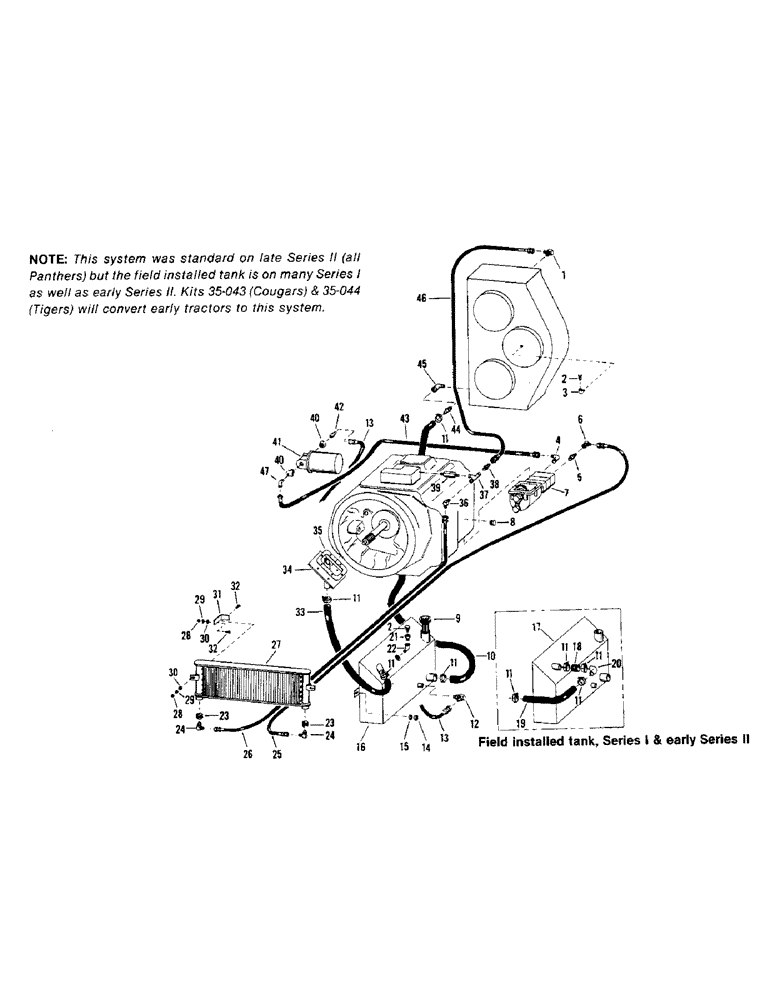

Запчасти Case IH STEIGER (04-33) - TRANSMISSION AND TRANSFER CASE COOLING (04) - Drive Train

1

31-490

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

1шт.

2

31-303

BREATHER

1шт.

3

31-219

ELBOW

ST. ELBOW

1шт.

4

31-466

PIPE

ADAPTER

1шт.

5

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER

1шт.

6

31-473

FITTING

ADAPTER (Drilled for oil press line)

1шт.

31-515

ELBOW

brass (Goes on 31-473)

1шт.

7

PUMP (See trans,. sec. 4)

1шт.

8

12-1487

PLUG

1шт.

9

6-1506

DIPSTICK

GAUGE, oil level

1шт.

10

32-158

HOSE

suction

1шт.

11

1-1348

CLAMP,#32, 1.87"-2.18", T-Bolt

hose

4шт.

12

18-587

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

1шт.

13

32-202

HOSE

1шт.

14

280129

NUT,1/4"-20

NUT, 1/2" NC lock

3шт.

15

19-119

LOCK WASHER,1/2"

1/2"

3шт.

16

1-371

TANK (W/Standard clutch)

1шт.

1-343

TANK (W/Oil clutch)

1шт.

17

1-350

TANK (Field installed on some early Cougars & Tigers)

1шт.

18

32-251

HOSE, suction

1шт.

19

32-250

HOSE, suction

1шт.

20

31-509

ELBOW

1шт.

21

31-73

BUSHING

1шт.

22

31-220

ADAPTER

ST. ELBOW

1шт.

23

31-175

FITTING,1"-11 1/2" Male NPTF x 1/2"-14 Female NPTF

BUSHING

2шт.

24

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

25

18-541

HOSE ASSY.

HOSE

1шт.

26

32-172

HOSE

1шт.

27

10-12

COOLER

OIL COOLER

1шт.

28

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

4шт.

29

19-117

LOCK WASHER,3/8"

3/8"

4шт.

30

19-107

WASHER

3/8 flat

4шт.

31

51-173

BRACKET, oil cooler

2шт.

32

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 NC x 3/4

4шт.

33

32-192

HOSE

suction, Serial Range: (Cut-fit)

1шт.

34

PLATE, drain (See trans. case & parts)

1шт.

35

2-2769

GASKET

(Repl. 12-1705)

1шт.

(E) Superseded - Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

36

31-320

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

1шт.

37

31-31

TEE,3/8"-18 Female

1шт.

38

18-1084

ADAPTER,3/4"-16, 37 Degree x 3/8"-18, NPTF

1шт.

39

18-1039

NIPPLE, LUBE

NIPPLE, .156 orifice

1шт.

40

31-12

REDUCER

BUSHING

1шт.

41

12-1665

FILTER

ASSY.

1шт.

18-502

FILTER CARTRIDGE

ELEMENT, filter

1шт.

12-1664

BRACKET

filter mt.

1шт.

42

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

ADAPTER

1шт.

43

12-1663

HOSE,SAE 100R1

SAE 100R1

1шт.

44

31-373

PIPE

ADAPTER

1шт.

45

31-475

ELBOW

ST. ELBOW, reducing

1шт.

46

32-216

HOSE

1шт.

47

31-12

REDUCER

ELBOW, 3/4 pipe

1шт.
