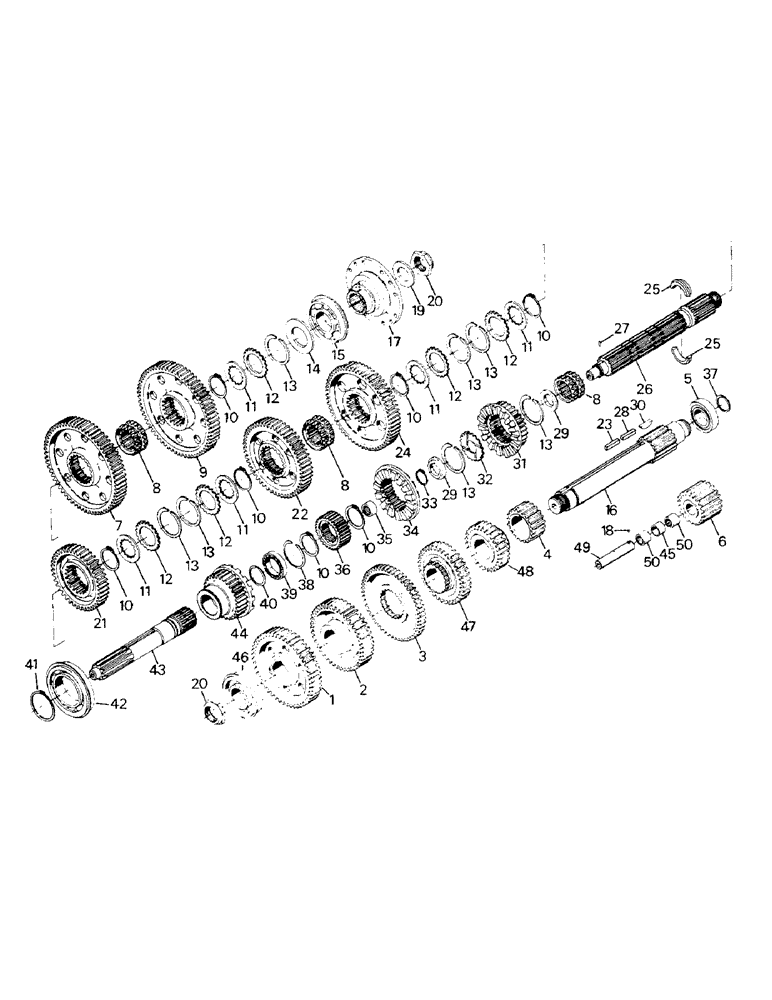

Запчасти Case IH STEIGER (04-24) - GEARS AND RELATED PARTS, EARLY VERSION (04) - Drive Train

1

12-1438

GEAR

C/S lo splitter (54T)

2шт.

2

12-1440

GEAR

C/S hi splitter (49T)

2шт.

3

12-1441

GEAR

P.T.O. drive (51T)

1шт.

4

12-1445

GEAR

C/S (3rd & 4th) (20T)

2шт.

5

12-1447

SPHERICAL BEARING,44.99mm ID x 85mm OD x 23mm W

BEARING, C/S rear

2шт.

6

12-1451

GEAR

reverse idler (21T)

2шт.

7

12-1426

GEAR

M/S (1st & 2nd) (64T)

1шт.

8

12-1418

CLAMP

COLLAR, M/S (1st, 2nd & reverse)

3шт.

9

12-1427

GEAR

M/S (Reverse) (64T)

1шт.

10

12-1420

SNAP RING

7шт.

11

12-1421

THRUST WASHER

THRUST WASHER

5шт.

12

12-1422

THRUST WASHER

THRUST WASHER

5шт.

13

12-1417

RING

SNAP RING

7шт.

14

12-1429

THRUST WASHER

THRUST WASHER

1шт.

15

12-1430

BALL BEARING,59.98mm ID x 130mm OD x 31mm W

BEARING, M/S rear

1шт.

16

12-1436

SHAFT

COUNTERSHAFT (Service with 12-2069 in later version) (Includes Ref. 45)

1шт.

17

55-74

FLANGE

(Use w/spicer driveshafts, series I only)

1шт.

17-133

FORK

FLANGE (Use w/mechanics driveshafts, late series I & all series II)

1шт.

18

12-1450

BALL

reverse idler shaft

2шт.

19

12-1434

WASHER

1шт.

20

12-2056

THIN NUT,3/4"-12, Thin

NUT

3шт.

21

12-1419

GEAR

M/S (7th & 8th) (40T)

1шт.

22

12-1423

GEAR

M/S (5th & 6th) (50T)

1шт.

23

12-1439

KEY

(Use 12-2065 from late style)

2шт.

24

12-1425

GEAR

M/S (3rd & 4th) (52T)

1шт.

25

12-1428

RING

SPLIT RING, M/S rear bearing

1шт.

26

12-1411

SHAFT

MAINSHAFT

1шт.

27

12-1415

PIN

M/S thrust washer

2шт.

28

12-1444

KEY

(Not needed if 12-2065 from late style is ordered)

2шт.

29

12-1414

THRUST WASHER

THRUST WASHER

2шт.

30

12-1446

KEY

2шт.

31

12-1412

GEAR

M/S (9th & 10th) (30T)

1шт.

32

12-1416

THRUST WASHER

THRUST WASHER

1шт.

33

12-1413

RING, SNAP

SNAP RING

1шт.

34

12-1408

COLLAR

(Splitter)

1шт.

35

12-1407

ROLLER BEARING

BEARING, input shaft pocket

1шт.

36

12-1409

GEAR

CLUTCH (Splitter) (30T)

1шт.

37

12-1448

OIL SEAL

SNAP RING

2шт.

38

12-1406

SNAP RING

1шт.

39

12-1405

BEARING,54.99mm ID x 80mm OD x 13mm W

input shaft (Rear)

1шт.

40

12-1404

OIL SEAL

SNAP RING

1шт.

41

12-1402

RING, SNAP

SNAP RING

1шт.

42

12-1403

BEARING,84.98mm ID x 150mm OD x 28mm W

input shaft (Front)

1шт.

43

12-1400

SHAFT

INPUT SHAFT, 1-3/4" (Cougar & Tiger dry clutch)

1шт.

12-1731

INPUT SHAFT (Oil clutch)

1шт.

13-195

SHAFT

INPUT SHAFT (Panther, dry clutch)

1шт.

44

12-1401

GEAR

DRIVE GEAR COMPOSITE (26T)

1шт.

45

12-1453

SPACER

reverse idler shaft bearing

2шт.

46

12-1437

BALL BEARING,2.1654" ID x 5.097" OD x 1.1417"

BEARING, C/S (Front)

2шт.

47

12-1442

GEAR

LH C/S (7th & 8th)

1шт.

12-2066

GEAR

RH C/S (7th & 8th)

1шт.

48

12-1443

GEAR

C/S (5th & 6th) (31T)

2шт.

49

12-1449

SHAFT

reverse idler

2шт.

50

12-1452

BEARING

reverse idler shaft

4шт.

Spicer Trans. - 1010

1шт.
