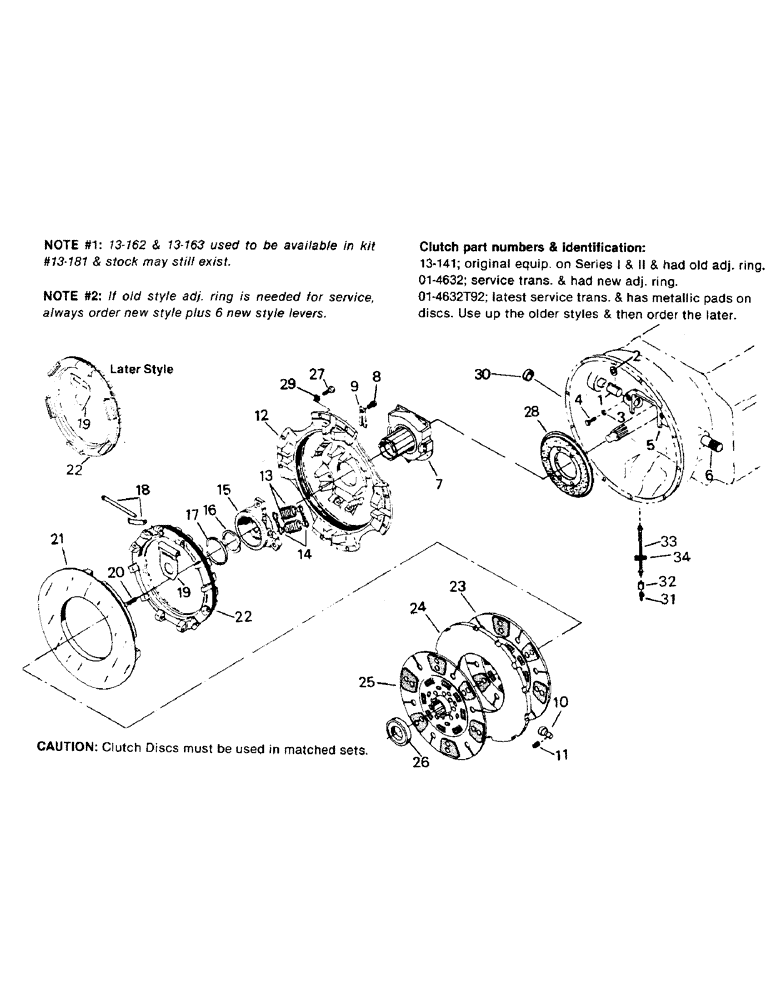

Запчасти Case IH STEIGER (04-16) - 14" CLUTCH ASSEMBLY, COUGAR AND TIGER (04) - Drive Train

1

13-130

SHAFT

SHORT SHAFT

1шт.

2

13-129

WASHER

2шт.

3

19-118

LOCK WASHER,7/16"

7/16"

2шт.

4

19-348

SCREW

CAPSCREW

2шт.

5

13-79

YOKE

RELEASE YOKE

1шт.

6

13-204

SHAFT

LONG SHAFT (9")

1шт.

13-131

SHAFT

LONG SHAFT (10")

1шт.

13-139

PLATE

PRESSURE PLATE ASSY., Includes: Ref. 7 - 22

1шт.

7

13-179

KIT

BEARING & SLEEVE ASSEMBLY

1шт.

8

13-160

BOLT & LOCK WASHER

1шт.

9

13-159

STRIP

LOCK

1шт.

10

13-167

PIN

DRIVE PIN

6шт.

11

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

12шт.

12

13-155

OIL SEAL

RING, flywheel

1шт.

13

13-165

SPRING

pressure

1шт.

14

13-166

PIVOT

pressure spring

6шт.

15

13-164

BOLT

RETAINER, release sleeve

1шт.

16

13-52

OIL SEAL

RING, sleeve

2шт.

17

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

RING, snap

1шт.

18

13-162

PIN (On old style only) (See note #1)

6шт.

13-163

CLIP (On old style only)

3шт.

19

13-161

LEVER

(Old style) (See note #2)

6шт.

1-4629

LEVER

(New style)

6шт.

20

13-154

SPRING

4шт.

21

13-153

LARGE PLATE

PRESSURE PLATE

1шт.

22

13-158

OIL SEAL

RING, adjusting (Old style) (See note #2)

1шт.

1-4630

GASKET

RING, adjusting (New style)

1шт.

23

13-147

DISC

rear (Ceramic pads)

1шт.

13-147T2

CLUTCH DISC

DISC, rear (Metallic pads)

1шт.

24

13-148

CLUTCH DISC

PLATE, intermediate

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return number - For N.A. only

1шт.

25

13-146

DISC

front (Ceramic pads)

1шт.

13-146T2

DISC

front (Metallic pads)

1шт.

26

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

pilot

1шт.

27

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8 x 1 NC

8шт.

28

13-178

BRAKE

CLUTCH BRAKE Spline is 1/750"

1шт.

29

19-117

LOCK WASHER,3/8"

3/8"

8шт.

30

31-90

PLUG

2шт.

31

31-93

FITTING

ZERK

3шт.

32

31-56

COUPLING

1/8"

1шт.

33

32-104

HOSE

grease

1шт.

34

22-95

GROMMET

1шт.

13-1002

KIT

ANTI-RATTLE SPRING KIT (Not shown)

1шт.
