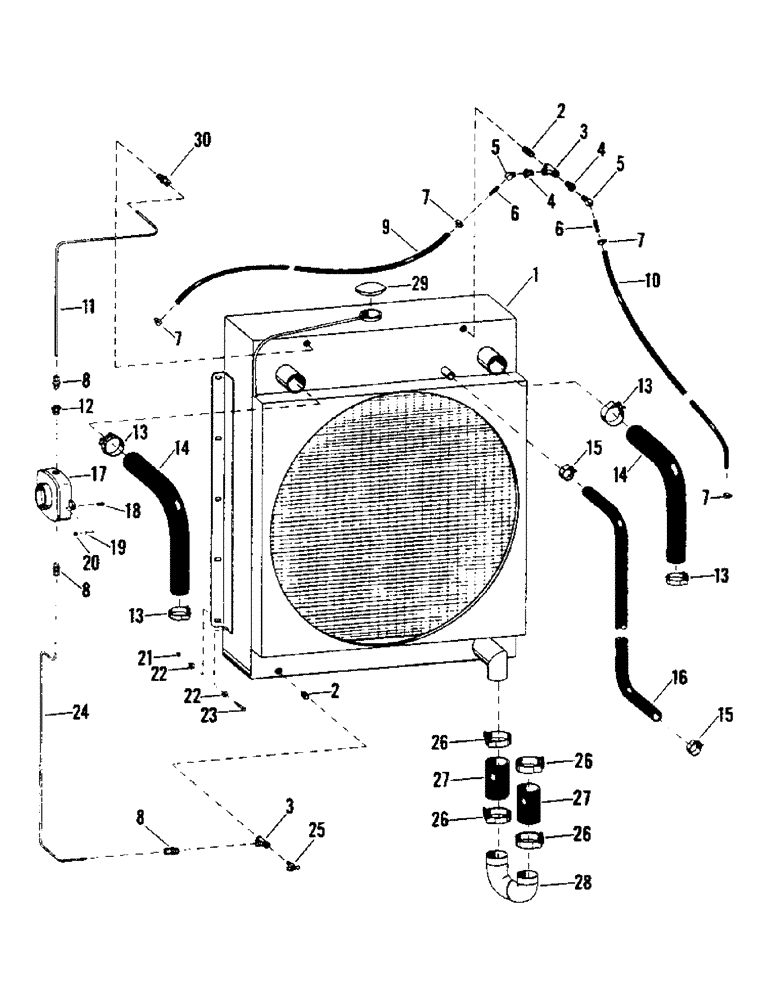

Запчасти Case IH STEIGER (04-11) - RADIATOR AND ATTACHING, TIGER I (04) - Drive Train

1

10-23

RADIATOR

1шт.

2

31-160

NIPPLE, LUBE

CLOSE NIPPLE, 1/4"

2шт.

3

31-6

TEE,1/4"-18 Female

1/4"

2шт.

4

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

BUSHING, 1/4" to 1/8"

2шт.

5

31-207

ELBOW

ST. ELBOW, 1/8" x 45 deg.

2шт.

6

31-164

CONNECTOR, ELEC

BARB FITTING

2шт.

7

32-30

HOSE CLAMP,#8, 0.50/0.91 Type M Worm

CLAMP

4шт.

8

31-255

FITTING, compression

3шт.

9

41-174

HOSE, 3/8" x 48"

1шт.

10

41-173

HOSE, 3/8" x 29"

1шт.

11

41-170

TUBING

1шт.

12

31-181

REDUCER

BUSHING, Serial Range: 1/2"-1/4"

1шт.

13

32-140

CLAMP,#34, 1.94"-2.25", T-Bolt

4шт.

14

32-65

HOSE

2-1/4" x 21"

2шт.

15

32-130

CLAMP,1.40"-1.56", T-Bolt

2шт.

16

41-175

HOSE

1шт.

17

29-18

GAUGE, shut-off

1шт.

18

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

19

19-115

LOCK WASHER,1/4"

1/4"

2шт.

20

19-76

NUT,1/4"-20, G5

1/4" N.C.

2шт.

21

232-4136

LOCK NUT,3/8"-16, GC

NUT, 3/8" N.C.

8шт.

22

19-107

WASHER

3/8"

16шт.

23

19-30

CAPSCREW, 3/8" x 1-1/2"

8шт.

24

41-171

TUBING

1шт.

25

31-159

COCK, DRAIN

DRAIN COCK

1шт.

26

32-171

CLAMP #66, 2.94"-3.25", T-Bolt

4шт.

27

41-172

HOSE, 2-3/4" x 4" long

2шт.

28

45-120

180 DEG. INLET WELDMENT

1шт.

29

10-21

CAP

radiator

1шт.

30

41-163

FITTING, compression

1шт.
