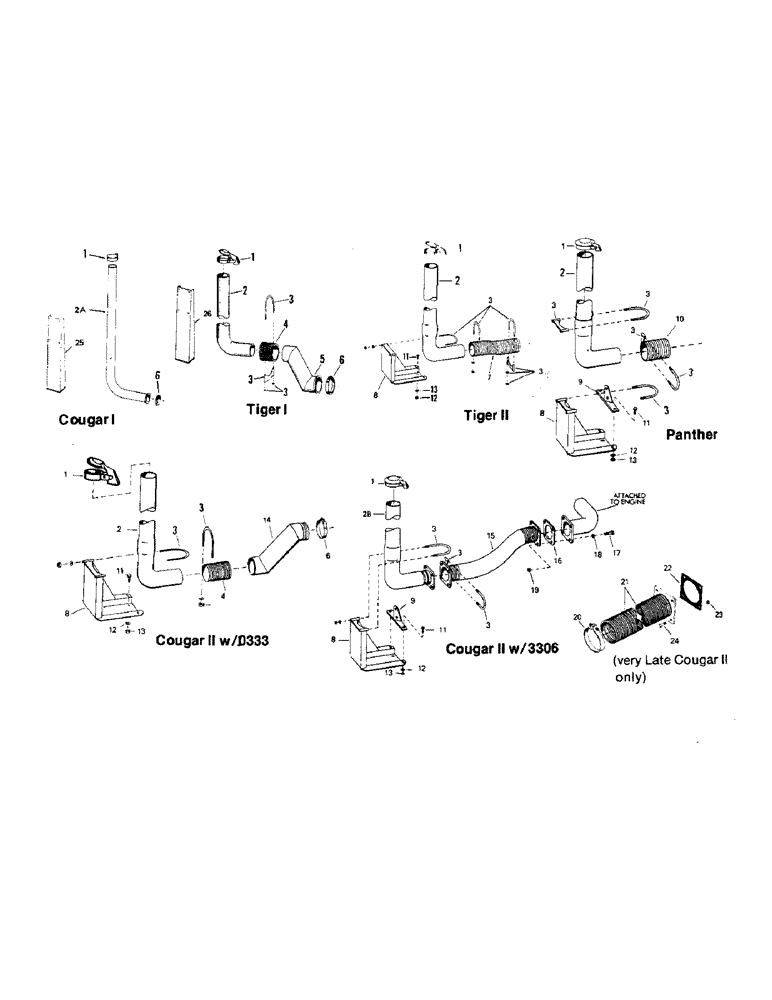

Запчасти Case IH STEIGER (04-09) - EXHAUST SYSTEMS, ALL MODELS (04) - Drive Train

1

7-35

CAP, exhaust (CI only)

1шт.

7-48

CAP

exhaust (All others)

1шт.

2

45-133

PIPE

STACK, exhaust

1шт.

2a

55-6

STACK, exhaust

1шт.

2b

51-304

PIPE, EXHAUST SYSTEM

STACK, exhaust

1шт.

3

7-32

CLAMP

(Incl. nuts & washers)

1шт.

19-77

NUT,5/16"-18, G5

7/16 NC

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

45-142

ADAPTER

FLEX TUBE

1шт.

5

45-115

EXHAUST ADAPTER

1шт.

6

7-46

CLAMP

1шт.

Cummins # 186917

1шт.

7

45-158

ADAPTER

FLEX TUBE

1шт.

8

51-236

ANCHOR

MOUNT, exhaust

1шт.

9

55-162

BRACKET, exhaust mt.

1шт.

10

45-233

TUBE

FLEX PIPE (replaces 55-162)

1шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 NC

4шт.

12

19-78

SPECIAL NUT,3/8"-16, G5

3/8 NC

4шт.

13

19-117

LOCK WASHER,3/8"

3/8"

4шт.

14

51-259

PIPE, exhaust adapter

1шт.

15

51-301

ADAPTER

FLEX PIPE ADAPTER (See Ref. 21)

1шт.

16

18-1298

GASKET

1шт.

17

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 NC x 1-1/2

4шт.

18

19-109

WASHER,1/2"

1/2

4шт.

19

19-81

NUT,1/2"-13, G5

1/2 NC

4шт.

20

31-1537

MOUNTING CLIP

CLAMP

1шт.

21

7-51

PIPE

FLEX PIPE ADAPTER

1шт.

22

18-1301

GASKET

1шт.

23

19-83

NUT,5/8"-11, G5

5/8 NC

4шт.

24

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 NC

4шт.

25

51-68

MOUNT, stack (CI)

1шт.

26

41-156

MOUNT, stack (TI)

1шт.

No mufflers on these machines

1шт.
