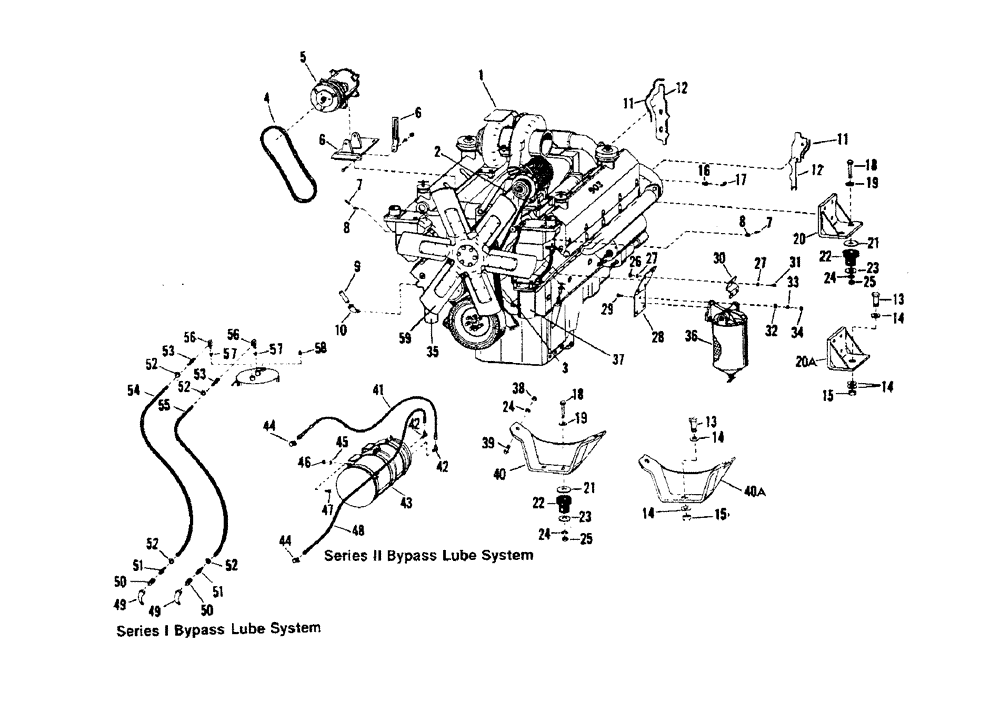

Запчасти Case IH STEIGER (04-03) - ENGINE AND ATTACHING PARTS, TIGER I AND II (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
ENGINE, 903 Cummins
1шт.
2
6-97
SET OF BELTS,0.53" W x 39.25" L
(2), Alternator 0.53" W x 39.25" L
1шт.
3
6-96
SET OF BELTS,0.53" W x 62.50" L
(3), Fan 0.53" W x 62.50" L
1шт.
4
6-66
SET OF BELTS,0.50" W x 41.00" L
V-Belt, Air cond. 0.50" W x 41.00" L
1шт.
5
COMPRESSOR, air (See climate section 3)
1шт.
6
MT. AIR COMP. (See climate section 3)
1шт.
7
31-164
CONNECTOR, ELEC
ADAPTER, 3/8 hose to 1/8 pipe
2шт.
8
31-207
ELBOW
45 degrees 1/8 pipe
2шт.
9
31-275
LUBE NIPPLE
NIPPLE, 3/4 x 3" pipe
1шт.
10
31-220
ADAPTER
ST. ELBOW, 3/4 x 45 degrees
1шт.
11
NAP
FOAM STRIPPING
1шт.
12
45-164
PLATE, dust, RH
1шт.
13
19-70
BOLT,Hex, 1" - 8 x 3", Gr 5
CAPSCREW, 1" NC x 3
3шт.
Used on Series I only
1шт.
14
19-1113
WASHER, 1" flat
8шт.
Used on Series I only
1шт.
15
19-86
NUT,1"-8, G5
1" NC
3шт.
Used on Series I only
1шт.
16
31-15
REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF
BUSHING, 1/4 x 1/8
1шт.
17
31-228
ELBOW, 1/8
1шт.
18
19-209
BOLT,Hex, 5/8" - 11 x 5", Gr 5
CAPSCREW, 5/8 NC x 5
6шт.
Used on Series II only
1шт.
19
19-111
WASHER,5/8"
5/8
6шт.
Used on Series II only
1шт.
20
45-139
MT., rear (Rubber mt.) (See note #1)
2шт.
Used on Series II only
1шт.
20a
45-14
MT., rear, LH
1шт.
Used on Series I only
1шт.
45-13
MT., rear, RH
1шт.
21
51-128
WASHER
motor mt.
6шт.
Used on Series I only
1шт.
22
6-1414
ANCHOR
MOUNT, rubber
6шт.
23
19-408
WASHER
flat
6шт.
25
19-83
NUT,5/8"-11, G5
5/8 lock
6шт.
26
19-76
NUT,1/4"-20, G5
1/4 NC
1шт.
27
19-105
WASHER,1/4", SAE
1/4 flat
1шт.
28
45-105
MOUNT, fuel filter
1шт.
29
19-38
CAPSCREW,3/8" - 24 x 1 1/2", Gr 5
3/8 NF x 1-1/2
3шт.
30
5-274
MOUNT, relay switch
1шт.
31
19-1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
CAPSCREW, 1/4 NC x 3/4
1шт.
32
19-107
WASHER
3/8 flat
3шт.
33
19-108
WASHER,7/16"
7/16 flat
3шт.
34
19-91
NUT,3/8"-24, G5
3/8 NF
3шт.
35
28-18
FILTER
ELEMENT, oil canister style
1шт.
6-99
OIL SEAL
O-RING (For 28-018)
1шт.
ENGINE OIL FILTER
FILTER ELEMENT, oil, spin-on (Not standard but may be field installed)
1шт.
36
28-19
FILTER
ELEMENT, fuel
1шт.
37
28-31
FILTER
WATER FILTER (See note #2)
1шт.
28-1000
FILTER
WATER FILTER (Pre-charged)
1шт.
38
19-83
NUT,5/8"-11, G5
5/8 NC
2шт.
39
19-61
BOLT,5/8" - 11 x 2 1/2", Gr 5
CAPSCREW, 5/8 NC x 2-1/2
2шт.
40
45-141
MOTOR MT., front (Rubber mt.) (See note #1)
1шт.
Used on Series II only
1шт.
40a
45-20
MOTOR MT., front (Solid mt.)
1шт.
Used on Series I only
1шт.
41
1-263
HOSE
ASSY.
1шт.
Used on Series II only
1шт.
42
31-528
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF
(replaces 31-547)
2шт.
Used on Series II only
1шт.
43
1-5568
FILTER
LUBER FINER (See a following page)
1шт.
28-28
FILTER, ENGINE OIL
ELEMENT
1шт.
44
31-269
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
90 degrees
2шт.
Used on Series II only
1шт.
45
19-117
LOCK WASHER,3/8"
3/8"
4шт.
Used on Series II only
1шт.
46
19-78
SPECIAL NUT,3/8"-16, G5
3/8 NC
4шт.
Used on Series II only
1шт.
47
19-17
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAPSCREW, 3/8 NC x 1
4шт.
Used on Series II only
1шт.
48
1-264
HOSE ASSY.
1шт.
Used on Series II only
1шт.
32-161
COLLAR CLAMP
CLAMP, hose mt.
1шт.
Used on Series II only
1шт.
49
31-76
ST. ELBOW, 45 degrees
2шт.
Used on Series I only
1шт.
50
31-14
BUSHING, 3/8 x 1/4
2шт.
Used on Series I only
1шт.
51
31-137
FITTING
CONNECTOR
2шт.
Used on Series I only
1шт.
52
32-69
CLAMP
4шт.
Used on Series I only
1шт.
Used on Series I only
1шт.
54
45-144
HOSE, 3/8" x 66"
1шт.
Used on Series I only
1шт.
55
45-143
HOSE, 3/8" x 44"
1шт.
Used on Series I only
1шт.
56
31-500
UNION
ADAPTER, 90 degrees
2шт.
Used on Series I only
1шт.
57
31-637
BUSHING
ADAPTER
2шт.
Used on Series I only
1шт.
58
31-35
PLUG
drain
1шт.
59
6-1597
FAN
1шт.
60
41-195
FUEL PUMP SUPORT (Not shown) (Used to support hyd. pump)
1шт.
61
5-387
WATER INLET ADAPTER (Not shown)
1шт.
Выбрано товаров: 97
