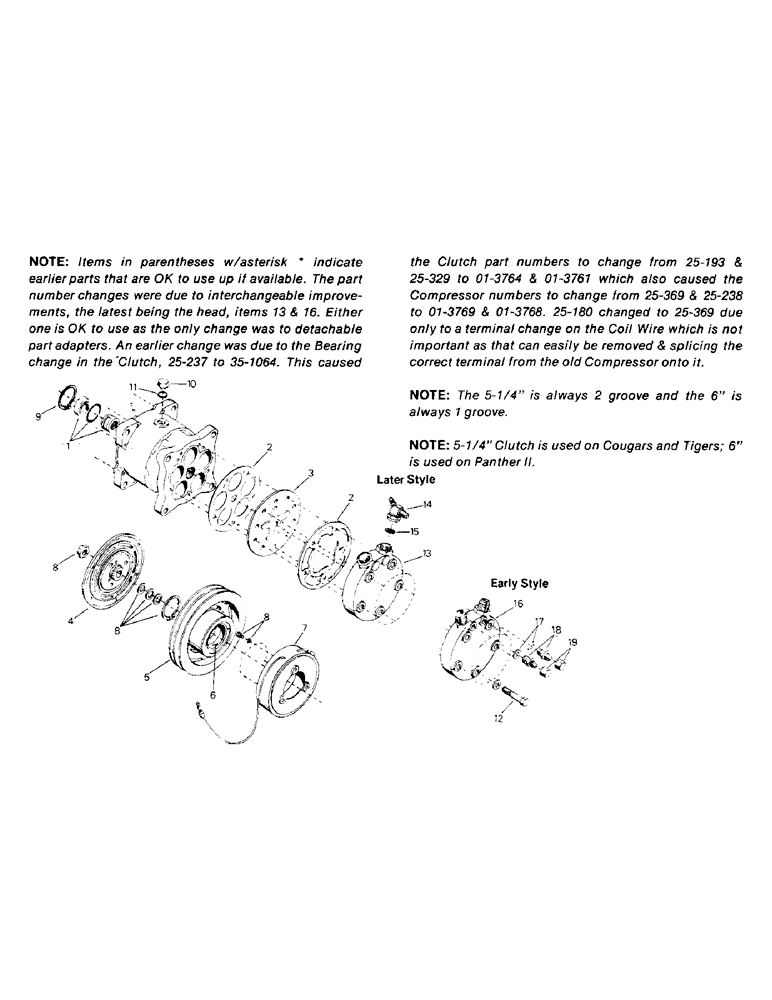

Запчасти Case IH STEIGER (03-07) - ROTARY COMPRESSOR (03) - Climate Control

35-1224T91

COMPRESSOR

ASSY. - 5-1/4" clutch, (25-180, 25-369 & 01-3769), Includes: Ref. 1 - 15

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

STEIGER SERIES I PANTHER, STEIGER SERIES I COUGAR, STEIGER SERIES II COUGAR, STEIGER SERIES II PANTHER, STEIGER SERIES I TIGER, \nSTEIGER SERIES II TIGER, All (1/73-12/75), Reman for New P/N 35-1224T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

35-1225T91

COMPRESSOR

ASSY. - 6" clutch (25-238 & 01-3768), Includes: Ref. 1 - 15

1шт.

2-1780

COMPRESSOR

ASSY. - 5-1/4" clutch, Includes: Ref. 1 - 13

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

STEIGER SERIES I PANTHER, STEIGER SERIES I COUGAR, STEIGER SERIES II COUGAR,\nSTEIGER SERIES II PANTHER, STEIGER SERIES I TIGER, STEIGER SERIES II TIGER, All (1/73-12/75), Reman for New P/N 2-1780

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

2-1781

COMPRESSOR

ASSY. - 6" clutch

1шт.

1

25-230

SEAL KIT

KIT

1шт.

2

25-231

GASKET KIT

KIT

1шт.

3

25-232

VALVE PLATE (Incl. #2)

1шт.

4-6

1-3759

CLUTCH HOUSING

PULLEY & PLATE ASSY., 5-1/4"

1шт.

1-3733

LARGE PLATE

PULLEY & PLATE ASSY., 6"

1шт.

4-8

1-3764

CLUTCH

ASSY. - 5-1/4" (25-193)

1шт.

1-3761

CLUTCH

ASSY. - 6" (25-329)

1шт.

4&5

NSS

NOT SOLD SEPARAT

ORDER ITEM 4-6

1шт.

6

35-1064

BEARING ASSY

KIT (25-237)

1шт.

7

25-237

COIL, 5-1/4"

1шт.

1-2434

COIL

6"

1шт.

8

1-2433

KIT

ACCESSORY KIT

1шт.

9

1-2435

RING, SNAP

SNAP RING

1шт.

10

A49667

PLUG

1шт.

11

1-2437

O-RING

1шт.

12

1-2438

SCREW,Hex Flg Hd

CAPSCREW

5шт.

35-1226T91

CYLINDER HEAD

HEAD ASSY., later style (25-233), Includes: Ref. 13 - 15

1шт.

13

2-1870

HEAD

later style

1шт.

14

2-1778

ADAPTER

W/O-RING (Discharge)

1шт.

2-1779

ADAPTER

W/O-RING (Suction)

1шт.

15

31-1423

O-RING

2шт.

16

25-233

HEAD

ASSY., early style

1шт.

17

1-2439

GASKET

2шт.

18

1-2440

FITTING

SERVICE POST

2шт.

19

1-2441

CAP

2шт.
