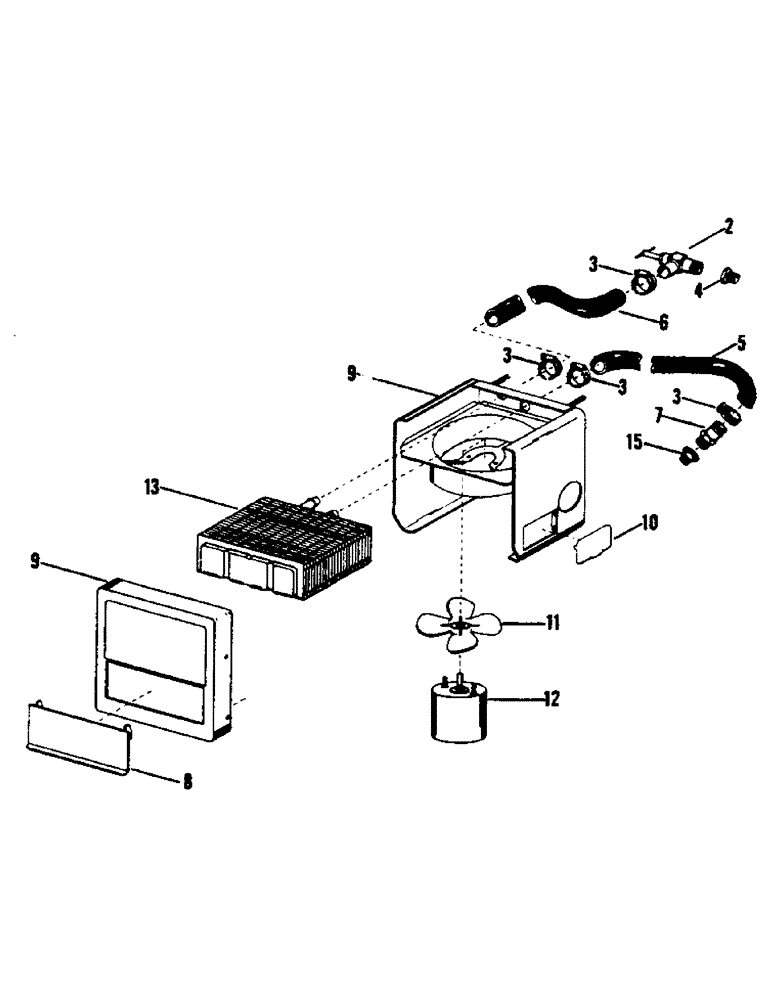

Запчасти Case IH STEIGER (03-04) - HEATER ASSEMBLY, SERIES I (03) - Climate Control

1

25-2

HEATER (Includes 2, 7-14)

1шт.

2

25-12

VALVE

1шт.

3

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

4шт.

4

31-73

BUSHING

reducer

2шт.

5

N.A.P.

HOSE

1шт.

6

N.A.P.

HOSE

1шт.

7

25-16

ADAPTER

1шт.

8

25-134

NUT

DOOR, front

1шт.

9

25-133

HOUSING

1шт.

10

25-135

SLOTTED NUT,5/16"-24, G5

DOOR, side

1шт.

11

25-132

FAN

1шт.

12

25-131

MOTOR, fan

1шт.

13

25-130

CORE

heater

1шт.

14

25-148

JAM NUT,Jam, 1/2"-13, G5

SWITCH (Not shown)

1шт.

15

31-178

BUSHING

1шт.
