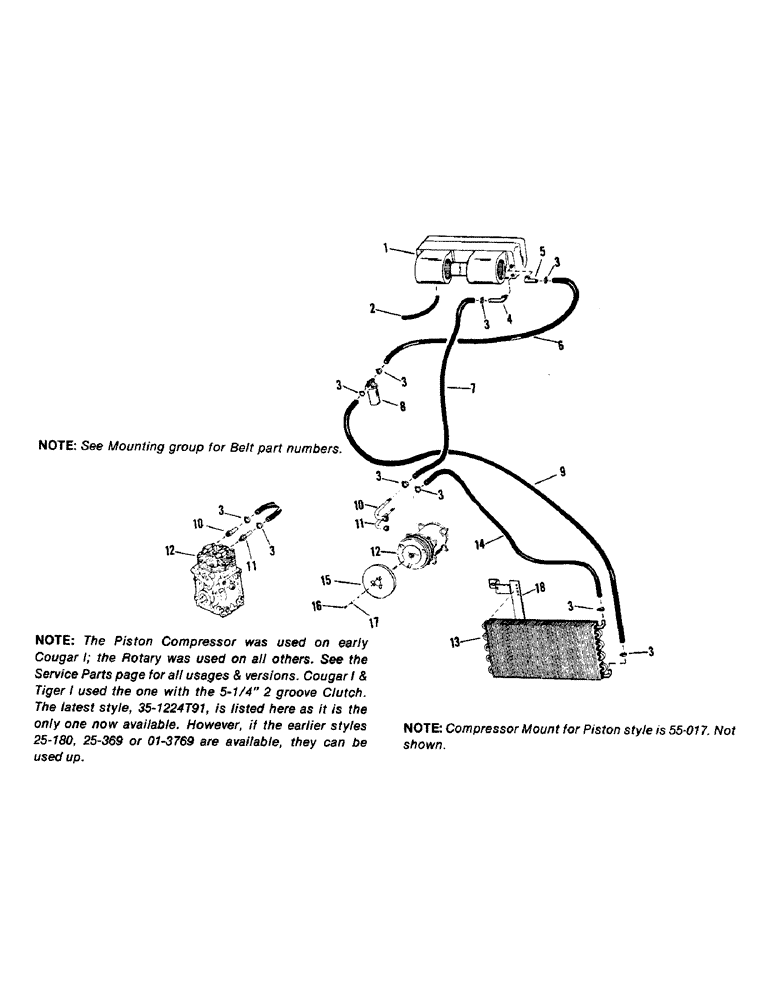

Запчасти Case IH STEIGER (03-01) - AIR CONDITIONING INSTALLATION, SERIES I (03) - Climate Control

1

25-108

NUT,1/2"-13, G5

AIR CONDITIONER

1шт.

2

25-201

HOSE, drain

1шт.

3

32-161

COLLAR CLAMP

CLAMP, hose

8шт.

4

25-47

FITTING

ADAPTER, 90 degree male

1шт.

5

25-33

ADAPTER, 90 degree female

1шт.

6

25-167

HOSE, #6, 16'

1шт.

7

25-186

HOSE, #10, 17'

1шт.

8

25-22

TANK

RECEIVER DRIER

1шт.

9

25-185

HOSE, #6 x 61"

1шт.

10

25-129

FITTING (Rotary comp)

1шт.

25-32

FITTING

(Piston comp)

1шт.

11

25-25

FITTING

(Rotary comp)

1шт.

25-24

FITTING (Piston comp)

1шт.

12

35-1224T91

COMPRESSOR

(Rotary) (See note)

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

STEIGER SERIES I PANTHER, STEIGER SERIES I COUGAR TRACTORS, STEIGER SERIES I TIGER, All (1/73-12/75), Reman for New P/N 35-1224T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

25-45

COMPRESSOR

(Piston)

1шт.

13

25-69

CONDENSER

1шт.

14

25-163

HOSE, #8, 77"

1шт.

15

25-194

DUST SHIELD, 5-1/4" 1/4"-28, G5, Thk

1шт.

16

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW, 1/4" x 1/2"

3шт.

17

19-467

LOCK WASHER,Ext Tooth, 1/4"

LOCKWASHER

3шт.

18

5-184

BRACKET

1шт.
