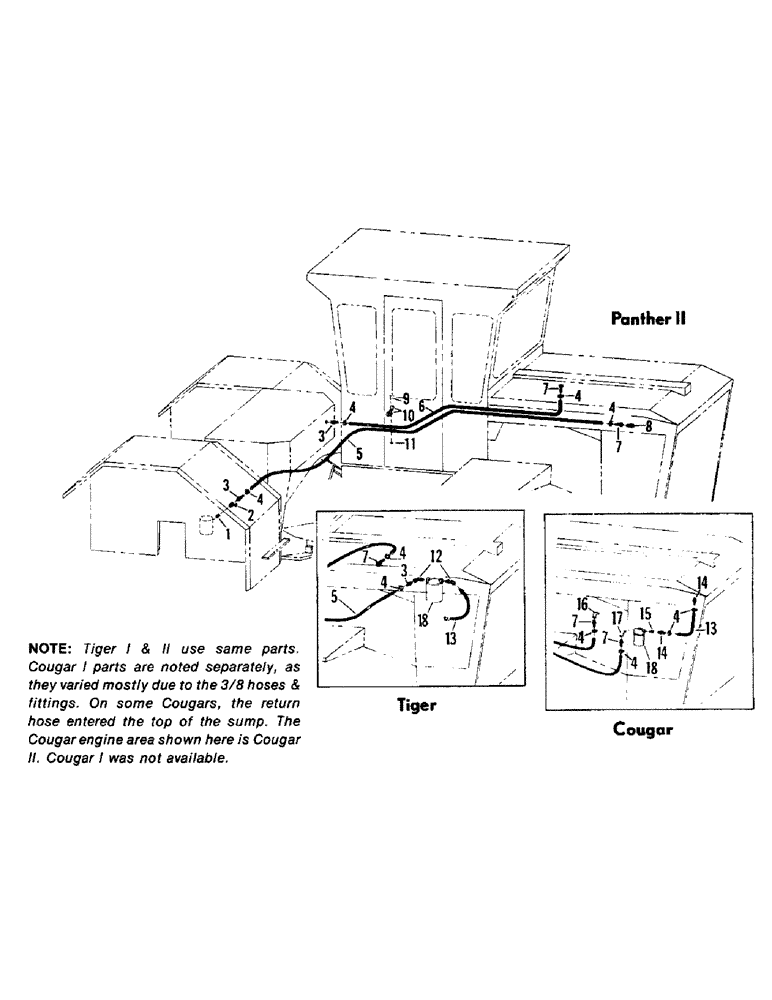

Запчасти Case IH STEIGER (07-01) - FUEL SYSTEMS (02) - FUEL SYSTEM

1

31-199

NIPPLE (Not CI)

1шт.

31-160

NIPPLE, LUBE

NIPPLE (CI only) also needs 31-014 bushing (Not shown)

1шт.

2

31-59

VALVE

(Not CI)

1шт.

31-58

VALVE

(CI only)

1шт.

3

31-271

ADAPTER, barb (Not CI)

2шт.

31-137

FITTING

ADAPTER, barb (CI) also needs 31-242 ST. EII-not shown

2шт.

4

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

6шт.

5

53-60

FUEL LINE, 1/2 x 154" (PII)

1шт.

53-63

FUEL LINE, 1/2 x 199" (CII)

1шт.

53-39

FUEL LINE, 3/8 x 168" (CI)

1шт.

32-196

FUEL LINE, 1/2 x 100" (T)

1шт.

6

53-61

FUEL LINE, 1/2 x 100" (PII)

1шт.

53-64

FUEL LINE, 1/2 x 187" (CII)

1шт.

53-39

FUEL LINE, 3/8 x 168" (CI)

1шт.

32-56

FUEL LINE, 1/2 x 126" (T)

1шт.

7

31-285

ADAPTER, barb 3/4 x 1/2 (P&T)

2шт.

31-215

ADAPTER, barb 3/8 x 1/2 (CII w/0333)

2шт.

31-553

CONNECTING ROD

ADAPTER, barb 1/4 x 1/2 (CII w/3306) (On Ref. 5 only) (CI not known)

1шт.

8

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

ADAPTER, o-ring (P)

1шт.

9

19-4

SCREW,Sltd Truss Hd, #10-24 x 1"

MACHINE SCREW

2шт.

10

32-67

CLAMP

4шт.

11

19-215

NUT

2шт.

12

31-543

LINK

ADAPTER, 45 degrees (T)

2шт.

13

35-1290T91

HOSE

FUEL LINE KIT (T)

1шт.

53-65

FUEL LINE (C)

1шт.

14

31-137

FITTING

ADAPTER 1/4 x 3/8 (C)

1шт.

15

31-19

BUSHING 3/8 x 1/4 (C)

1шт.

16

31-219

ELBOW

ST. EII, 90 degrees (CW/D333)

1шт.

6-1489

ELBOW, check, (C w/3306) (CI not known)

1шт.

17

31-76

ST. EII, 45 degrees (CII) (CI not known)

1шт.

18

28-25

ELEMENT

fuel Cougars

1шт.

28-19

FILTER

ELEMENT, fuel Tigers

1шт.

28-35

FUEL FILTER

ELEMENT, fuel Panther II

2шт.
