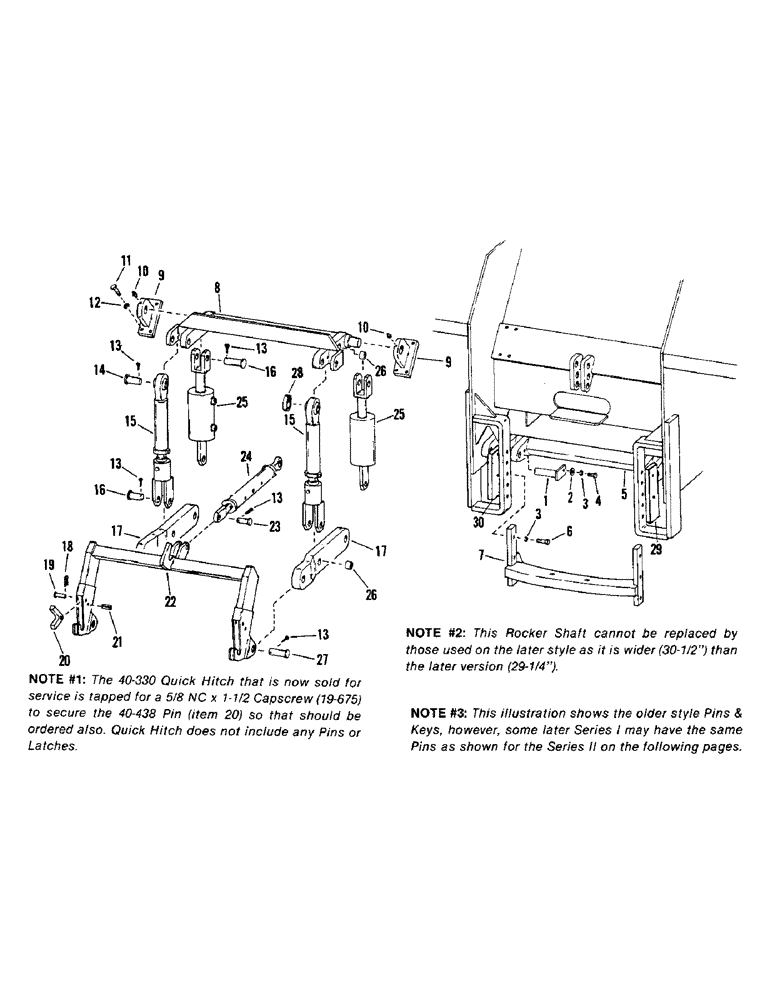

Запчасти Case IH STEIGER (10-01) - 3-POINT HITCH, SERIES I Options & Miscellaneous

1

40-183

PIN

2шт.

2

19-109

WASHER,1/2"

flat 1/2"

2шт.

3

19-119

LOCK WASHER,1/2"

1/2"

6шт.

4

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" NC x 1-1/2

2шт.

5

50-10

HITCH, lower (Weld-on)

1шт.

6

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW

4шт.

7

50-16

DRAWBAR HANGER

1шт.

8

50-5

ROCKER SHAFT (See note #2)

1шт.

9

40-126

BLOCK

PILLOW BLOCK

2шт.

10

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

11

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

CAPSCREW, 5/8 NC x 2-1/4

8шт.

12

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

LOCKWASHER, 5/8"

8шт.

13

19-226

PIN,5/16" x 3"

Split (Cotter), (See note #3) 5/16" x 3"

8шт.

14

19-330

PIN

(See note #3)

2шт.

15

50-19

ADJ. ARM

2шт.

16

19-327

ARM

PIN (See note #3)

4шт.

17

50-2

LINK

lower

2шт.

18

19-358

PIN

HAIR PIN

2шт.

19

19-257

CLEVIS PIN,1/2" x 3"

PIN, 1/2" x 3"

2шт.

20

40-327

HANDLE

(Service w/40-504)

2шт.

21

19-258

PIN, ROLL,1/2" x 2 1/2", Slotted

Pin, 1/2" x 2 1/2", Slotted

2шт.

22

40-330

HITCH ASSY, TRAILER

QUICK HITCH (Does not incl. pin or handles) (See note #1)

1шт.

23

19-328

PIN (See note #3)

1шт.

24

40-220

LOCK NUT

CENTER LINK ASSY.

1шт.

25

CYL. (See parts figure)

2шт.

26

15-21

RING RACE

BUSHING

4шт.

27

19-329

PIN (See note #3)

2шт.

28

40-400

SPACER

2шт.

29

40-401

SPACER GUIDE, RH

2шт.

30

40-402

SPACER GUIDE, LH

2шт.
