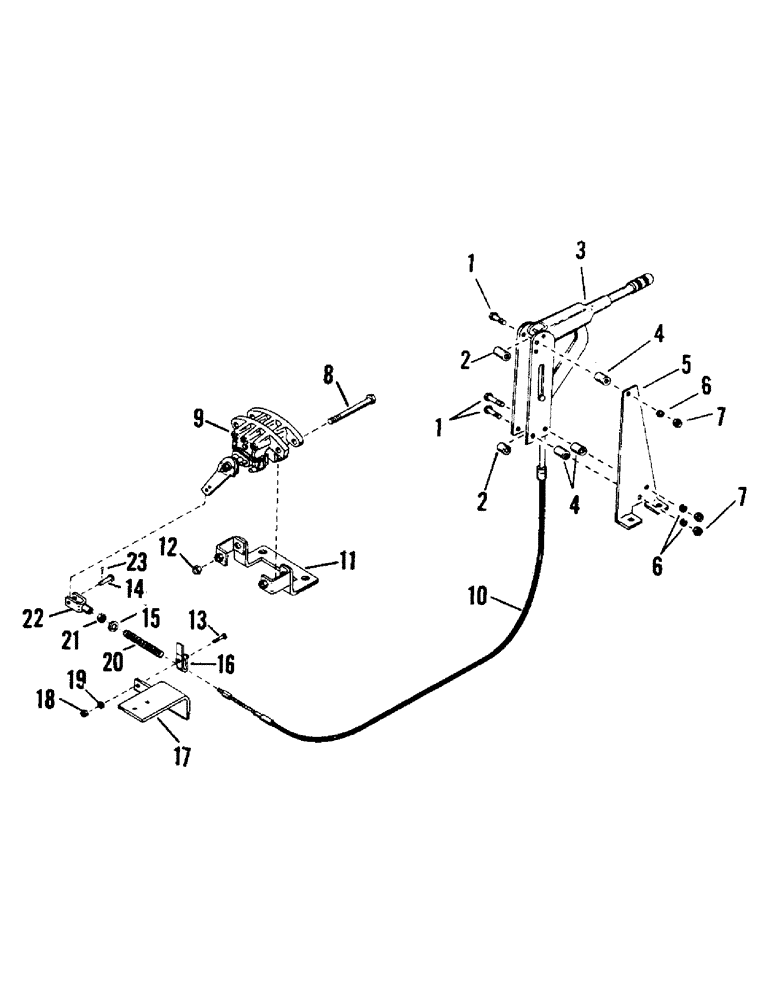

Запчасти Case IH STEIGER (05-04) - PARK BRAKE SYSTEM, SERIES I (5.1) - BRAKES

1

19-10

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

CAPSCREW, 5/16 NC x 2-1/4

3шт.

2

4-118

SPACER

2шт.

3

30-10

HANDLE

LEVER

1шт.

4

5-306

SPACER

short

3шт.

5

54-125

PLATE, mount

1шт.

6

19-116

LOCK WASHER,5/16"

5/16"

3шт.

7

19-77

NUT,5/16"-18, G5

5/16 NC

3шт.

8

19-392

BOLT,5/8" - 11 x 6", Gr 5

CAPSCREW, 5/8 NC x 6

2шт.

9

2-3188T91

BRAKE ASSY.

BRAKE, parking (Replaces 33-068)

1шт.

10

30-11

ELECTRICAL WIRE

CABLE, park brake

1шт.

11

55-128

MOUNT, park brake

1шт.

12

19-83

NUT,5/8"-11, G5

5/8 NC

1шт.

13

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW, 7/16 x 1-1/2 NC

1шт.

14

19-145

CLEVIS PIN,3/8" x 1.06"

PIN, clevis

1шт.

15

19-107

WASHER

3/8 flat

1шт.

16

33-126

CLAMP

1шт.

17

41-161

MOUNT, cable

1шт.

18

19-77

NUT,5/16"-18, G5

5/16 NC

1шт.

19

19-116

LOCK WASHER,5/16"

5/16"

1шт.

20

33-169

SPRING

1шт.

21

19-91

NUT,3/8"-24, G5

3/8 NC

1шт.

22

19-139

YOKE

clevis

1шт.
