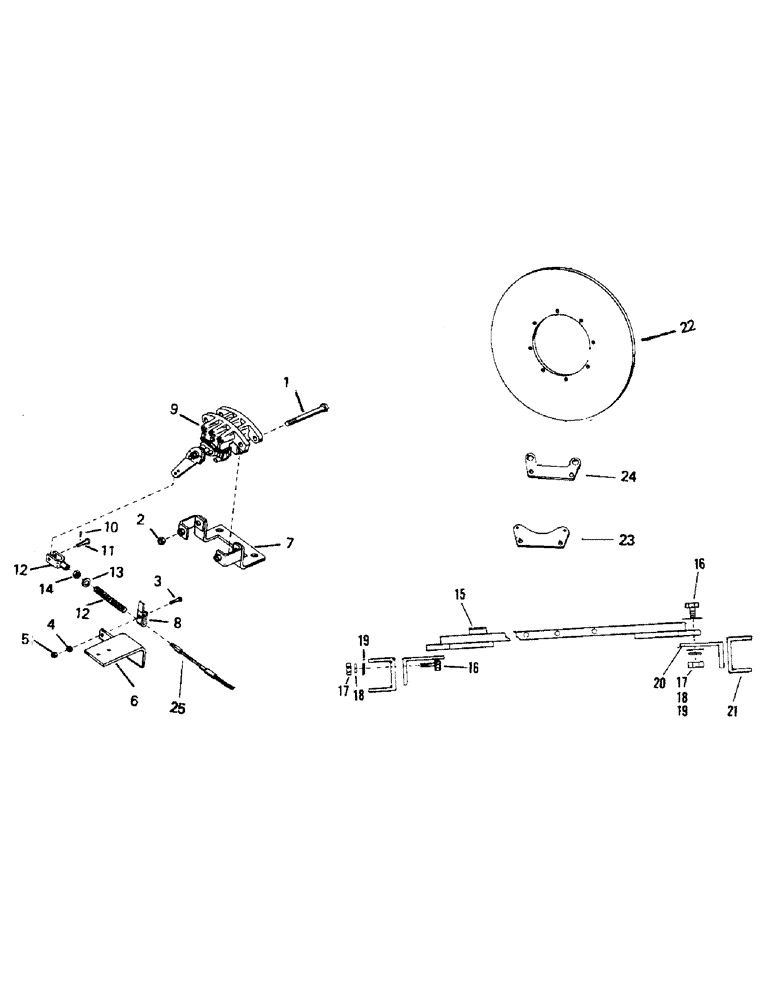

Запчасти Case IH STEIGER (05-01) - BRAKE MOUNTING, SERIES I (5.1) - BRAKES

1

19-392

BOLT,5/8" - 11 x 6", Gr 5

CAPSCREW, 5/8 NC x 6

2шт.

2

19-83

NUT,5/8"-11, G5

5/8 NC

2шт.

3

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW, 5/16 x 1-1/2

1шт.

4

19-116

LOCK WASHER,5/16"

5/16"

1шт.

5

19-77

NUT,5/16"-18, G5

5/16 NC

1шт.

6

41-161

MOUNT, cable

1шт.

7

55-128

MOUNT, park brake

1шт.

8

33-126

CLAMP

cable

1шт.

9

2-3188T91

BRAKE ASSY.

BRAKE, park

1шт.

10

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

11

19-145

CLEVIS PIN,3/8" x 1.06"

PIN, clevis

1шт.

12

33-169

SPRING

1шт.

13

19-107

WASHER

3/8 flat

1шт.

14

19-91

NUT,3/8"-24, G5

3/8 NC

1шт.

15

55-22

MOUNT BAR, brake

1шт.

16

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 NC x 2

8шт.

17

19-81

NUT,1/2"-13, G5

1/2 NC

8шт.

18

19-119

LOCK WASHER,1/2"

1/2"

8шт.

19

19-109

WASHER,1/2"

flat

16шт.

20

5-251

BRACKET, bar mt.

1шт.

21

NAP, Serial Range: (Welded-frame)

1шт.

22

55-135

DISC

brake (Use w/mechanics drivelines)

1шт.

55-73

DISC. brake (Use w//spicer drivelines)

1шт.

23

1-2946

HANGER

MT., brake, large hole (33-109)

1шт.

(E) Superseded - Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

24

1-2945

HANGER

MT., brake, large hole (33-108)

1шт.

(E) Superseded - Old part number is not used any longer; the new part number is to be used in all cases.

1шт.

25

30-11

ELECTRICAL WIRE

CABLE, park brake

1шт.
