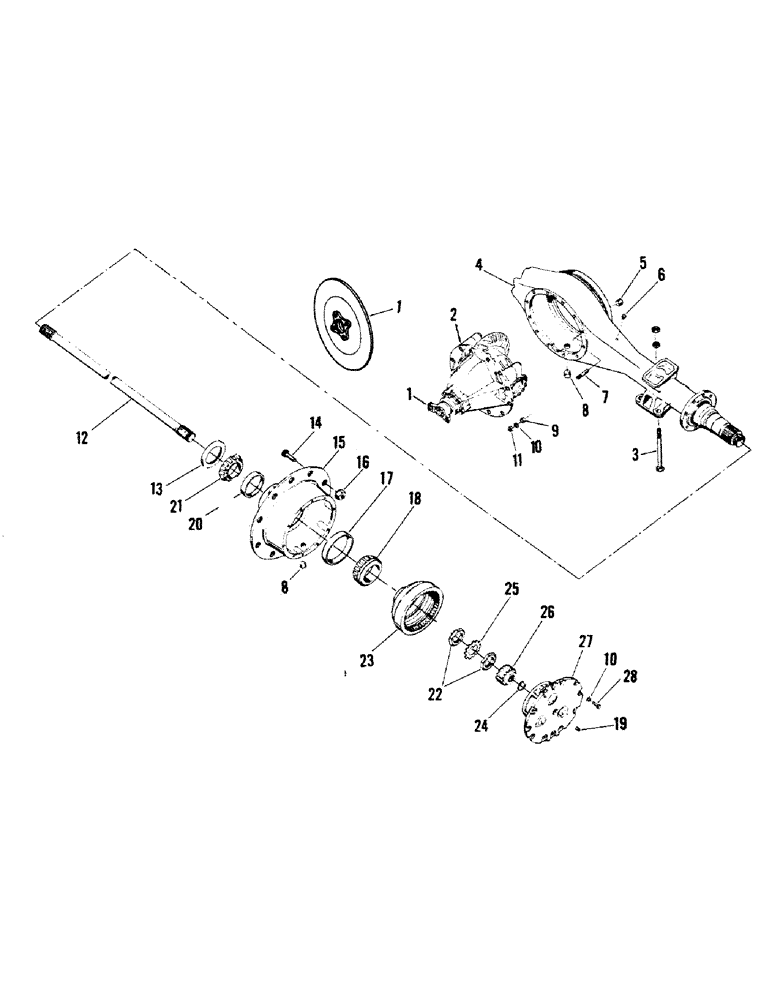

Запчасти Case IH STEIGER (04-58) - AXLE ASSEMBLY, CLARK, 1972 SWC (04) - Drive Train

1

5-259

BRAKE DISC ASSY. (front)

1шт.

16-509

COMPANION FLANGE (flat style) (rear)

1шт.

2

16-523

DIFF. & CARRIER ASSY., front

1шт.

16-524

X

DIFF. & CARRIER ASSY., rear

1шт.

3

1-217

BOLT, axle mt.

8шт.

19-148

DECAL,7/8" - 14, Gr 8

NUT, 7/8" NF

8шт.

19-180

WASHER, LOCK,7/8"

7/8"

8шт.

4

16-525

HOUSING

1шт.

5

16-89

PLUG

1шт.

6

16-116

BREATHER

1шт.

7

16-136

STUD

carrier

14шт.

8

16-716

PLUG

2шт.

9

16-134

DOWEL

3шт.

10

16-131

WASHER

14шт.

11

16-132

NUT

14шт.

12

16-593

AXLE SHAFT

2шт.

13

16-537

SEAL

oil

2шт.

16-538

SLEEVE (for 16-537)

2шт.

14

16-530

STUD

LUG BOLT (SN 8457 & down)

24шт.

CAUTION: Be certain of the identity of the axle before ordering parts. SN Break WC & SWCI SN 8394-8552

1шт.

19-584

BOLT

LUG BOLT (SN 8458-8552)

24шт.

CAUTION: Be certain of the identity of the axle before ordering parts. SN Break WC & SWCI SN 8394-8552

1шт.

15

16-531

HUB ASSY. (w/13 & 16)

2шт.

16-553

HUB ASSY. (w/13, 16 7 16-530 bolts)

2шт.

16

16-374

NUT

LUG NUT, 3/4 NF (use w/16-530)

24шт.

19-261

NUT,7/8" - 14, Gr 5

7/8 NF (use w/19-584)

24шт.

17

16-533

CUP

BEARING CUP

2шт.

18

16-534

CONE

BEARING CONE

2шт.

19

16-547

PLUG

24шт.

20

16-535

BEARING, CUP

BEARING CUP

2шт.

21

16-536

BEARING CONE

2шт.

22

16-551

NUT,2.9198" ID

spindle

4шт.

23

16-552

GEAR & HUB ASSY.

2шт.

24

16-550

SNAP RING

2шт.

25

16-540

LOCK

2шт.

26

16-541

SUN GEAR

GEAR, sun

2шт.

16-542

THRUST SLEEVE, sun gear

2шт.

27

16-543

PLANET CARRIER ASSY. (see parts figure)

2шт.

16-544

O-RING (for 16-543 - not shown)

2шт.

28

16-546

BOLT

CAPSCREW

24шт.
