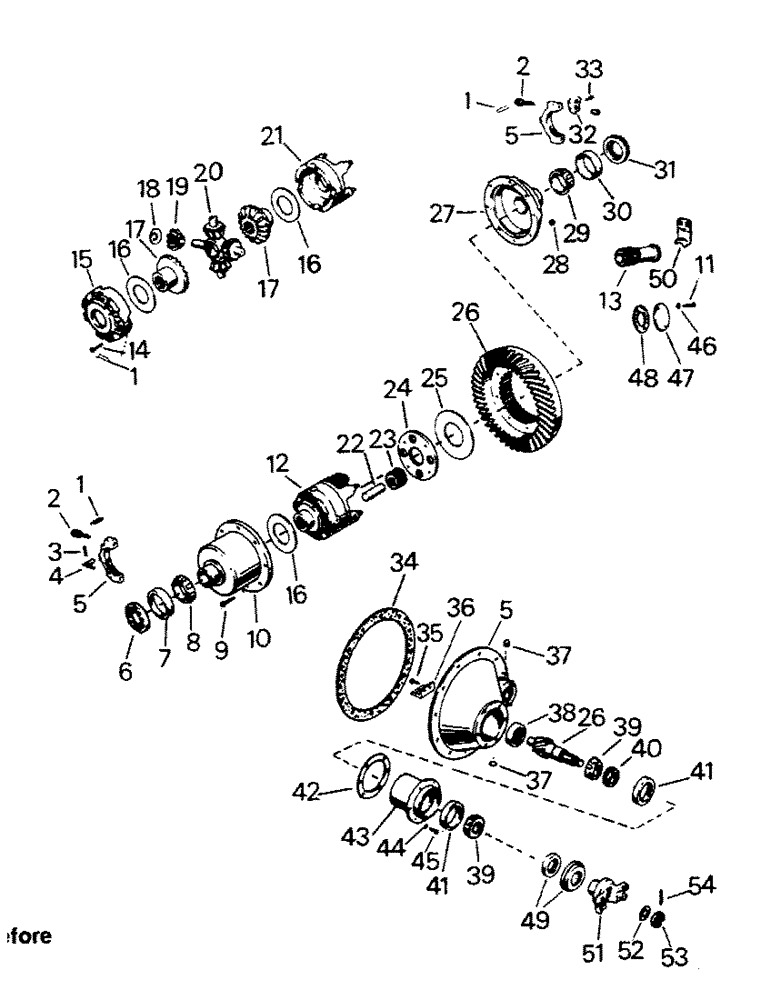

Запчасти Case IH STEIGER (04-55) - DIFF. & CARRIER ASSY. DANA A235 (04) - Drive Train

a

16-39

DIFF. & CARRIER ASSY., 6.43 cw ratio

1шт.

P/N 16-039 used in both front and rear on Series I plus Series II on and below above breaks. 16-1491 and 16-1492 were used after, except ST 225, SN 3677 to 3702 and CC225 SN 45160 to 45183, which had 16-1491, cw, in both ends. However, when ordering replacement parts for front of these, order 16-1492 parts, gear set is only differing part, CC indicates "Canadian Coop"

1шт.

b

16-1491

DIFF. & CARRIER ASSY., 6.34 cw ratio

1шт.

b

16-1492

DIFF. & CARRIER ASSY., 6.34 cw ratio

1шт.

1

NAP

LOCKWIRE

1шт.

2

16-476

BOLT,Hex, 3/8" - 16 x 4 41/64", Gr 5

CAPSCREW

4шт.

3

16-477

COTTER PIN

1шт.

4

16-478

LOCK, adjuster, R.H.

1шт.

5a

16-479

ASSY., diff. carrier and caps, optional used in 16-39

1шт.

5b

16-1488

ASSY., diff. carrier and caps, optional used in 19-1491 and 16-1492

1шт.

6

16-480

ADJUSTER, bearing R.H.

1шт.

7

16-481

BEARING CAP

CUP, bearing R.H.

1шт.

8

16-482

BEARING

CONE, bearing R.H.

1шт.

9

16-391

BOLT

8шт.

10

16-392

CASE, R.H.

1шт.

11

16-474

CAPSCREW

2шт.

12

16-394

DIFF. ASSY.

1шт.

13

16-1484

SUN GEAR

replaces 16-469, optional used in 16-1491 and 16-1492

1шт.

14

16-396

SCREW

BOLT, diff. case

8шт.

15

16-397

CASE

diff. R.H.

1шт.

16

16-393

WASHER

thrust

3шт.

17

16-398

GEAR

diff. side

2шт.

18

16-399

WASHER

pinion gear

4шт.

19

16-400

KIT

GEAR, pinion

4шт.

20

16-401

KIT

SPIDER

1шт.

21

16-404

CASE

DIFF. CASE

1шт.

22

16-405

PIN

idler pinion

4шт.

23

16-406

PINION

IDLER

4шт.

24a

16-407

PLATE, clutch, optional used in 16-39

1шт.

24b

16-1487

PLATE, clutch, optional used in 16-1491 and 16-1492

1шт.

25

16-408

WASHER

clutch plate

1шт.

26a

16-409

GEAR SET, 6.43 cw ratio, optional used in 16-39

1шт.

26b

16-1489

GEAR SET, 6.34 cw ratio, optional used in 16-1491 and 16-1492

1шт.

26b

16-986

GEAR SET, 6.34 cw ratio, optional used in 16-1491 and 16-1492

1шт.

27

16-410

CASE, gear LH

1шт.

28

16-411

NUT, case bolt

8шт.

29

16-412

BEARING

CONE, diff. bearing LH

1шт.

30

16-413

BEARING

CUP, diff. bearing LH

1шт.

31a

16-414

ADJUSTER DIFF. BEARING LH, optional used in 16-39

1шт.

31b

16-1483

ADJUSTER, diff. bearing LH, optional used in 16-1491 and 16-1492

1шт.

32

16-416

LOCK, LH

1шт.

33

16-417

CAPSCREW

2шт.

34

16-418

SCREW

GASKET, carrier

1шт.

35

16-419

CAPSCREW, oil pick up through

2шт.

36a

16-420

TROUGH, oil pick up, optional used in 16-39

1шт.

36b

16-1490

TROUGH, oil pick up, optional used in 16-1491 and 16-1492

1шт.

37

16-421

PLUG

EXPANSION

1шт.

38

16-424

BEARING PINION INNER

1шт.

39a

16-425

BEARING, CONE

CONE, pinion bearing, optional used in 16-39

1шт.

39b

16-1481

CONE

PINION BEARING, optional used in 16-1491 andd 16-1492

1шт.

40a

16-445

SPACER, pinion bearing (.521), optional used in 16-39

1шт.

16-446

SPACER, pinion bearing (.522)

1шт.

16-447

SPACER, pinion bearing (.523)

1шт.

16-448

SPACER, pinion bearing (.524)

1шт.

16-449

SPACER, pinion bearing (.525)

1шт.

16-450

SPACER, pinion bearing (.526)

1шт.

16-451

SPACER, pinion bearing (.527)

1шт.

16-452

SPACER, pinion bearing (.528)

1шт.

16-453

SPACER, pinion bearing (.529)

1шт.

16-454

SPACER, pinion bearing (.530)

1шт.

16-455

SPACER, pinion bearing (.531)

1шт.

16-456

SPACER, pinion bearing (.532)

1шт.

16-457

SPACER, pinion bearing (.533)

1шт.

16-458

SPACER, pinion bearing (.534)

1шт.

16-459

SPACER, pinion bearing (.535)

1шт.

16-460

SPACER, pinion bearing (.536)

1шт.

16-461

SPACER, pinion bearing (.537)

1шт.

40b

16-1412

SPACER

pinion bearing (.632), optional used in 16-1491 and 16-1492

1шт.

16-1413

SPACER

pinion bearing (.633)

1шт.

16-1414

SPACER, pinion bearing (.634)

1шт.

16-1416

SPACER

pinion bearing (.635)

1шт.

16-1418

SPACER

pinion bearing (.636)

1шт.

16-1422

SPACER

pinion bearing (.637)

1шт.

16-1426

SPACER

pinion bearing (.638)

1шт.

16-1430

SPACER

pinion bearing (.639)

1шт.

16-1434

SPACER

pinion bearing (.640)

1шт.

16-1438

SPACER

pinion bearing (.641)

1шт.

16-1440

SPACER

pinion bearing (.642)

1шт.

41a

16-427

BEARING

CUP, pinion bearing, optional uised in 16-39

2шт.

41b

16-1493

BEARING, CUP

CUP, pinion bearing, optional used in 16-1491 and 16-1492

2шт.

42a

16-428

SHIM, cage (.003), optional used in 16-39

1шт.

16-429

SHIM

cage (.005)

1шт.

16-430

SHIM

cage (.010)

1шт.

16-431

SHIM, cage (.020)

1шт.

16-432

SHIM, cage (.030)

1шт.

42b

16-1485

SHIM, cage (.003), optional used in 16-1491 and 16-149*2

1шт.

16-1497

SHIM, cage (.005)

1шт.

16-1496

SHIM, cage (.010)

1шт.

16-1495

SHIM, cage (.020)

1шт.

16-1494

SHIM, cage (.030)

1шт.

43a

16-433

CAGE

AND CUP ASSY., optional used in 16-39

1шт.

43b

16-1486

CAGE AND CUP ASSY., optional used in 16-1491 and 16-1492

1шт.

44

16-434

WASHER, LOCK

LOCKWASHER

6шт.

45

16-435

CAPSCREW

6шт.

46

16-473

WASHER

LOCKWASHER

2шт.

47

16-472

COVER, shift fork

1шт.

48

16-471

GASKET COVER

1шт.

49a

16-984

OIL SEAL

SEAL & RETAINER ASSY., optional used in 16-39

1шт.

49b

16-985

OIL SEAL

SEAL & RETAINER ASSY., optional used in 16-1491 and 16-1492

1шт.

50

16-470

RETAINER, sun gear

1шт.

51

17-84

COMPANION FLANGE, use with spicer driveshafts, all Series I except very latest

1шт.

5-177

BRAKE DISC, same as above, on front only

1шт.

17-240

COMPANION FLANGE, mechanics, very late Series I & all Series II

1шт.

52

16-485

WASHER

1шт.

53a

16-486

NUT

pinion, optional used in 16-39

1шт.

53b

19-877

LOCK NUT

pinion, optional used in 16-1491 and 16-1492

1шт.

54

16-487

COTTER PIN

1шт.
