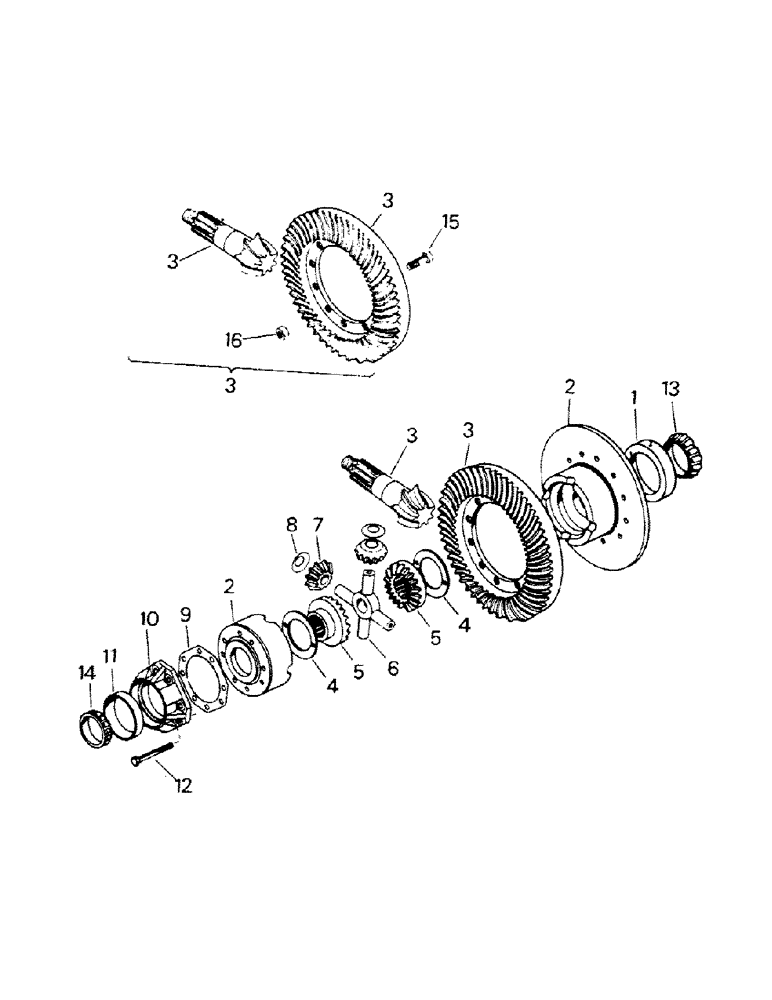

Запчасти Case IH STEIGER (04-53) - DIFFERENTIAL ASSEMBLY - ADJUSTABLE AXLE (04) - Drive Train
16
4
15
5
8
11
1
2
13
2
3
9
3
12
3
3
3
14
10
5
7
6
4
№
Артикул
Название
Примечание
Количество
16-639
DIFFERENTIAL & PINION ASSY., front axle, consists of ref. nos. 1-12
1шт.
16-705
DIFFERENTIAL & PINION ASSY., rear axle
1шт.
1
16-640
BEARING CUP
1шт.
2
16-655
DIFFERENTIAL CASE ASSEMBLY (includes ref. 1)
1шт.
3
16-650
GEAR & PINION SET, front
1шт.
16-706
GEAR & PINION SET, rear
1шт.
4
16-646
WASHER
2шт.
5
16-645
GEAR
2шт.
6
16-647
SPIDER
1шт.
7
16-648
PINION
4шт.
8
16-649
WASHER
4шт.
9
16-644
SHIM
1шт.
10
16-642
ADAPTER, differential gear case (includes ref. 11)
1шт.
11
16-643
BEARING, CUP
BEARING CUP
1шт.
12
16-641
BOLT
16шт.
13
16-621
BEARING, ROLLER
BEARING CONE
1шт.
14
16-622
TAPERED BEARING
BEARING CONE
1шт.
15
16-651
BOLT
12шт.
16
16-652
NUT
12шт.
Выбрано товаров: 19
