Запчасти Case IH STEIGER (04-50) - PLANETARY & HUB - ADJUSTABLE AXLE (04) - Drive Train

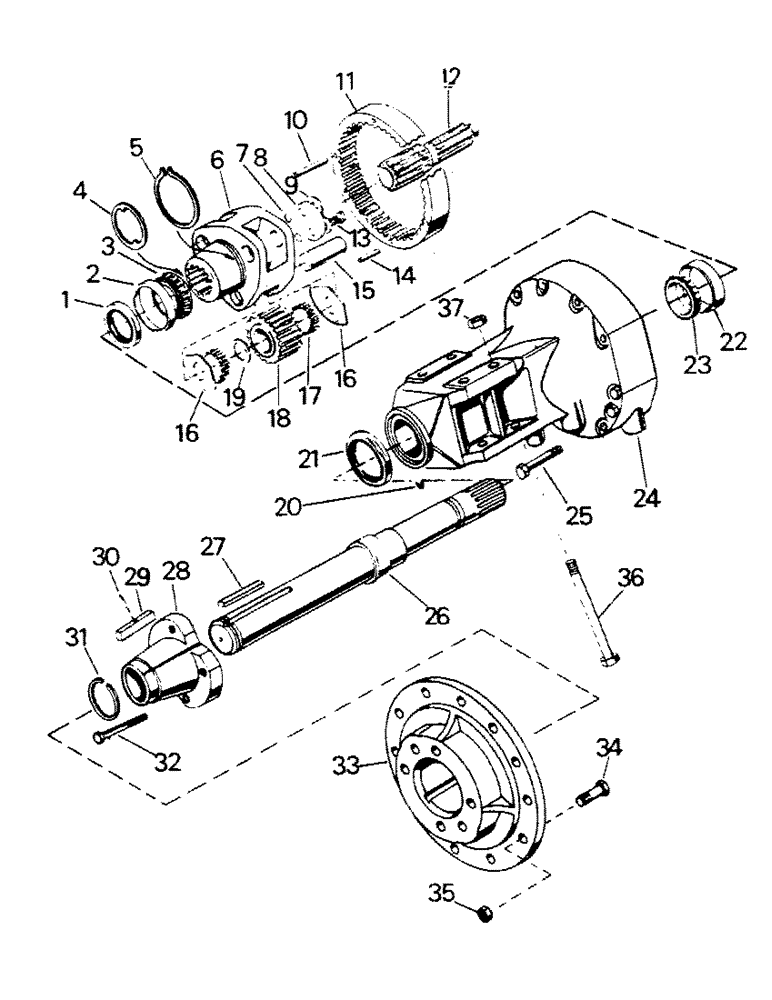

Схема запчастей Case IH STEIGER - (04-50) - PLANETARY & HUB - ADJUSTABLE AXLE (04) - Drive Train
11
36
23
15
13
18
26
14
21
28
17
35
1
4
25
30
29
9
22
10
20
32
6
24
5
37
34
16
31
33
27
16
12
8
19
3
2
7

Артикул

Название

Примечание

Количество

16-1780

AXLE ASSY., std. shafts, less hubs, front

1шт.

16-1196

AXLE ASSY., std. shafts, less hubs, rear

1шт.

16-1782

AXLE ASSY., long shafts, less hubs, front

1шт.

16-1783

AXLE ASSY., long shafts, less hubs, rear

1шт.

1

16-678

OIL SEAL

oil

2шт.

2

16-677

BEARING

CUP

2шт.

3

16-676

BOLT (SPREADER)

BEARING CONE

2шт.

4

16-662

WASHER

2шт.

5

16-668

RING, pinion shaft retaining

1шт.

6

16-661

CARRIER, planetary pinion

2шт.

7

16-672

SHIM (.002)

1шт.

16-673

SHIM

(.005)

1шт.

16-674

SHIM

(.101)

1шт.

16-675

SHIM

(.018)

1шт.

8

16-671

CAP

axle shaft retaining

2шт.

9

16-670

RETAINER

2шт.

10

16-658

PIN, dowel

8шт.

11

16-707

GEAR, ring (part of 24)

2шт.

12

16-684

SHAFT

2шт.

13

16-669

BOLT, cap lock

2шт.

14

16-657

PIN, dowel

8шт.

15

16-667

SHAFT, planetary pinion

6шт.

16

16-666

WASHER

12шт.

17

16-664

BEARING, roller needle

300шт.

18

16-663

PINION, planetary drive

6шт.

19

16-665

SPACER

6шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

16-682

OIL SEAL

oil (triple lip)

2шт.

22a

16-680

BEARING CUP (27620)

2шт.

22b

16-983

CUP

BEARING CUP (JM716610)

2шт.

22c

16-1233

BEARING

CUP (47620)

2шт.

A heavy duty bearing kit #35-1101 is available & has been used to upgrade the earlier axles to heavier outboard bearings & are shown as 22C & 23C. Be sure to check bearing numbers (shown in parentheses behind 22 & 23) to assure getting the correct ones.

1шт.

23a

16-681

BEARING CONE

(27690)

2шт.

23b

16-982

BEARING

CONE (JM716649)

2шт.

23c

1-6053

CONE

BEARING CONE (47688)

2шт.

A heavy duty bearing kit #35-1101 is available & has been used to upgrade the earlier axles to heavier outboard bearings & are shown as 22C & 23C. Be sure to check bearing numbers (shown in parentheses behind 22 & 23) to assure getting the correct ones.

1шт.

24a

16-656

HOUSING (incl. 10, 11, 14)

1шт.

24b

16-921

HOUSING (incl. 10, 11, 14)

1шт.

25

16-660

BOLT, 5/8

26шт.

26a

16-679

AXLE SHAFT, 35-1/4"

2шт.

24a

1-6975

AXLE SHAFT, 44"

2шт.

26b

16-981

AXLE SHAFT, 35-1/4"

2шт.

26b

16-922

AXLE SHAFT, 44"

2шт.

35-37

KIT, axle hub, consists of ref. nos. 27-33

1шт.

27

16-687

KEY

2шт.

28

16-605

HUB

right hand

1шт.

16-606

HUB

left hand

1шт.

29

16-689

KEY

2шт.

30

16-690

ROLL PIN

2шт.

31

16-688

RING

2шт.

32

16-691

BOLT

3/4 x 6-1/2 UNC

8шт.

33

16-1781

HUB (16-708) (B)

2шт.

34

19-584

BOLT

LUB BOLT, 7/8 NF x 3 (19-260) (A)

24шт.

16-709

LUG BOLT, 3/4 NF x 2-1/2 (used on early Series I only, that had wheels w/countersunk holes) (Replaces 16-708)

24шт.

35

19-261

NUT,7/8" - 14, Gr 5

LUG NUT, 7/8 NF (use w/19-584

24шт.

16-374

NUT

LUG NUT, 3/4 NF (use w/16-708)

24шт.

36

19-811

BOLT,Hex, 3/4"-10 x 10", G5

AXLE MT. BOLT (3/4 NC x 10)

8шт.

Both NC & NF axle bolts are shown even though NF may have been only one used except on very latest Series II; however, NC is recommended replacement. A: Error Correction - New P/N is correct for all uses. B: Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

19-313

BOLT,Hex, 3/4" - 10 x 10", Gr 5

AXLE MT. BOLT (3/4 NF x 10)

8шт.

37

19-85

LOCK NUT

3/7 NC

8шт.

19-97

NUT,3/4"-16, G5

3/4 NF

8шт.

35-1101

KIT

HD BEARING KIT (incl. 1 ea. of 1, 7, 21, 22C, 23C, & 16-618 gasket) (this kit requires some modification to Ref. 24)

2шт.

Выбрано товаров: 62
