Запчасти Case IH STEIGER (04-49) - DIFF. & CARRIER ASSY., ROCKWELL, (BC I SN 2019 & BELOW) (04) - Drive Train

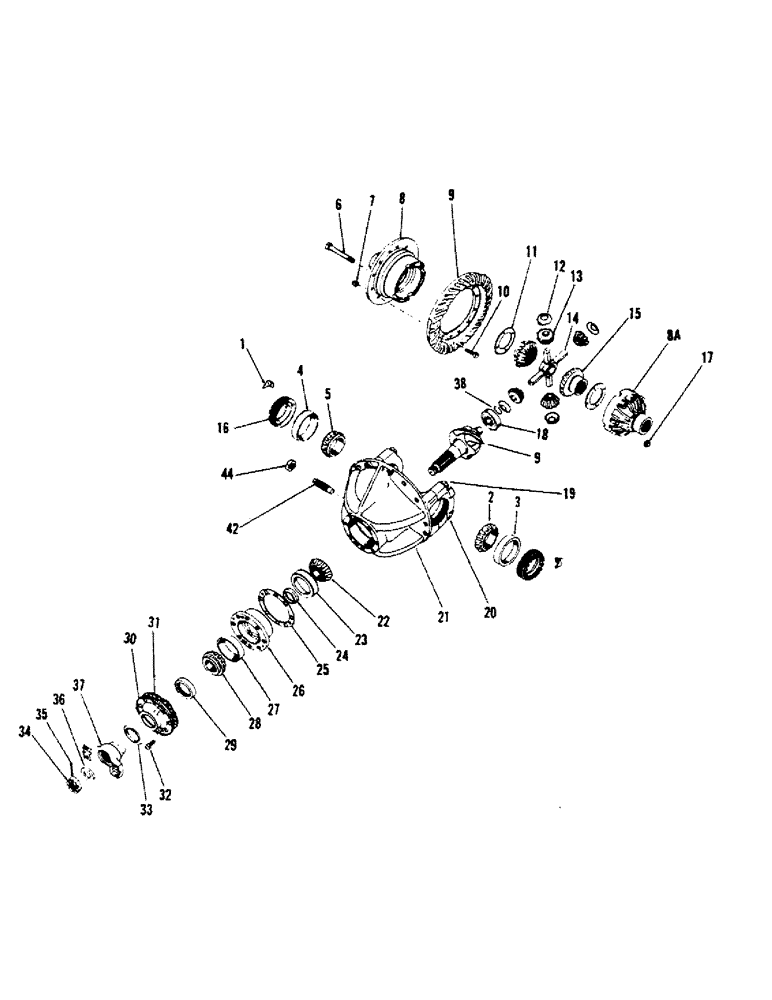

Схема запчастей Case IH STEIGER - (04-49) - DIFF. & CARRIER ASSY., ROCKWELL, (BC I SN 2019 & BELOW) (04) - Drive Train
38
34
31
30
15
8a
28
9
4
37
8
26
5
29
2
18
32
10
12
11
23
3
7
25
21
27
24
6
14
44
22
16
13
9
42
35
19
17
33
1
36
20

Артикул

Название

Примечание

Количество

1

16-1142

LOCK

2шт.

16-1145

BEARING CONE

consists of ref. nos. 2&5

2шт.

16-1146

CONE

BEARING CUP, consists of ref. nos. 3&4

2шт.

6

16-1147

BOLT, case, short

4шт.

16-1148

BOLT, case, long

8шт.

7

NAP

SEE #10

1шт.

8

16-1149

CASE, flange, half

1шт.

8a

16-1154

CASE, plain, half

1шт.

9

16-1197

RING GEAR & PINION SET

1шт.

10

16-1139

RIVET

12шт.

35-1041

KIT

diff. parts, consists of

1шт.

11

16-1157

WASHER

THRUST WASHER

2шт.

12

16-1153

WASHER

THRUST WASHER

4шт.

13

16-1150

PINION

GEAR, pinion

4шт.

14

16-1152

DIFF. SPIDER

SPIDER

1шт.

15

16-1156

GEAR

side

2шт.

16

16-1144

NUT, adjusting

2шт.

17

16-1155

NUT

12шт.

18

16-1162

BEARING

pinion pilot

1шт.

19

16-1143

BOLT, carrier cap

4шт.

20

NSS

NOT SOLD SEPARAT

CAP, carrier (part of #21)

2шт.

21

16-1161

CARRIER ASSY. (incl. 19-20)

1шт.

16-1160

PISTON

PLUG, check (in #21)

1шт.

22

16-1138

CONE

BEARING CONE

1шт.

23

16-1136

CUP

BEARING CUP

1шт.

24

SPACER (any size spacer can be ordered starting at .500, part #16-1163, .501 part #16-1163, etc. up to .534, part #16-1197)

1шт.

25

16-1133

SHIM

(.005)

1шт.

16-1134

SHIM

(.010)

1шт.

16-1135

SHIM

(.003)

1шт.

26

16-1137

CAGE (incl. 23 & 27)

1шт.

27

16-1136

CUP

BEARING CUP

1шт.

28

16-1130

CONE

BEARING CONE

1шт.

29

16-1095

OIL SEAL

SEAL

1шт.

30

16-1198

COVER

1шт.

31

16-1132

GASKET

1шт.

32

16-1131

CAPSCREW

8шт.

33

16-1129

SLINGER

1шт.

34

16-1126

NUT

1шт.

35

16-1041

COTTER PIN

1шт.

36

16-1127

WASHER

1шт.

37

16-1128

YOKE, rear

1шт.

37a

5-119

BRAKE DISC, front

1шт.

38

16-1159

RING, SNAP

RING, lock

1шт.

16-1199

RETAINER

(use w/#38)

1шт.

Выбрано товаров: 44
