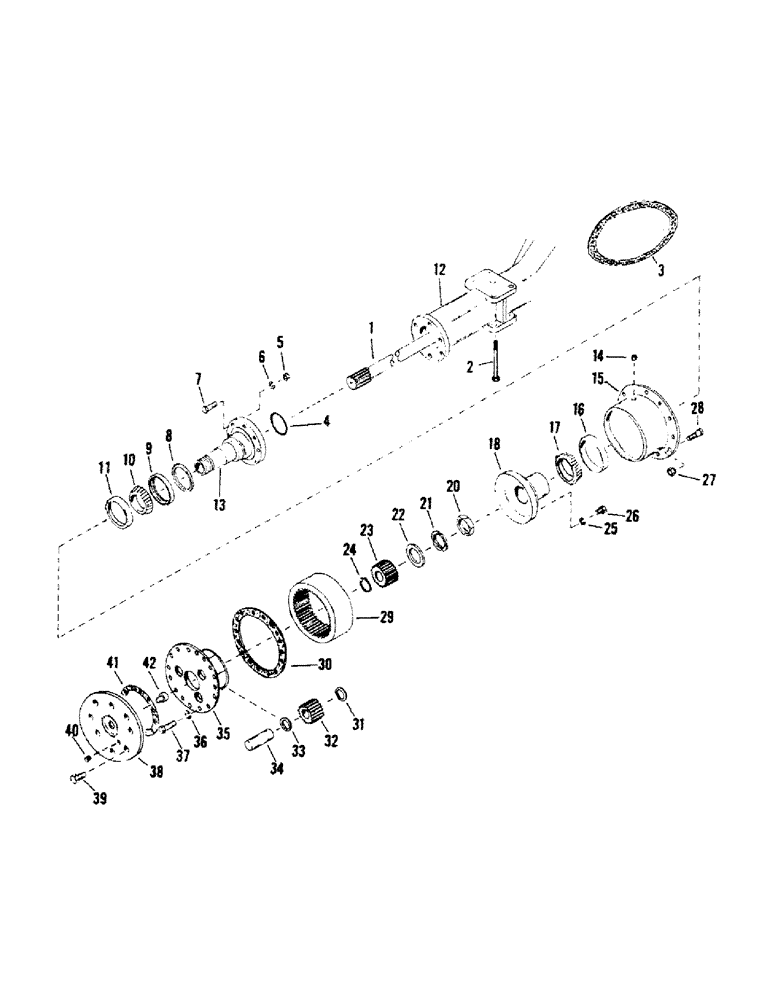

Запчасти Case IH STEIGER (04-43) - AXLE ASSEMBLY - ROCKWELL, UPDATE VERSION, (WC & SWC, SN 8350 & BELOW) (04) - Drive Train

1

16-1275

SHAFT, axle, rear

2шт.

This part is different than the standard version on preceding Figure

1шт.

16-1276

SHAFT, axle, front

2шт.

This part is different than the standard version on preceding Figure

1шт.

2

19-65

SCREW,Hex, 3/4"-10 x 9", G5

BOLT, axle mt., 3/4 NC x 9

8шт.

19-84

NUT,3/4"-10, G5

3/4 NC

8шт.

3

16-1078

GASKET

housing

1шт.

4

16-1035

SEAL

O-RING

2шт.

5

16-38

CASE

NUT

28шт.

6

16-39

WASHER

28шт.

7

16-1273

CAPSCREW

28шт.

16-944

SEAL & RETAINER ASSY., consists of ref. nos. 8-9

2шт.

10

16-1002

BEARING, CONE

BEARING CONE

2шт.

11

16-1003

CONE

BEARING CUP

2шт.

12

16-1057

HOUSING, axle

1шт.

13

16-1034

SPINDLE

2шт.

14

16-1009

PLUG

2шт.

15

16-1010

HUB

2шт.

16

16-1004

X

BEARING CONE

2шт.

17

16-1005

X

BEARING CUP

2шт.

18

16-945

HUB, ring gear

2шт.

This part is different than the standard version on preceding Figure

1шт.

20

16-1014

NUT

2шт.

21

16-1018

LOCKNUT

4шт.

22

16-1019

WASHER

sun gear

2шт.

23

16-1278

SUN GEAR, 17 tooth

2шт.

This part is different than the standard version on preceding Figure

1шт.

24

16-1279

SNAP RING

2шт.

This part is different than the standard version on preceding Figure

1шт.

25

16-952

LOCK

8шт.

This part is different than the standard version on preceding Figure

1шт.

26

16-953

CAPSCREW

16шт.

This part is different than the standard version on preceding Figure

1шт.

27

16-374

NUT

LUG NUT

24шт.

28

16-1007

STUD

LUG BOLT

24шт.

29

16-950

RING GEAR, 55 tooth

2шт.

30

16-1101

BOLT

GASKET (or use permatex)

2шт.

16-1281

PLANET SPIDER ASSY., consists of ref. nos. 31-35

2шт.

This part is different than the standard version on preceding Figure

1шт.

31

16-951

WASHER

THRUST WASHER, inner

6шт.

This part is different than the standard version on preceding Figure

1шт.

32

16-948

PLANET GEAR, 19 tooth

6шт.

This part is different than the standard version on preceding Figure

1шт.

33

16-1024

WASHER

THRUST WASHER, outer

6шт.

34

16-949

SHAFT

pinion

6шт.

This part is different than the standard version on preceding Figure

1шт.

35

16-946

SPIDER

2шт.

This part is different than the standard version on preceding Figure

1шт.

36

16-1027

LOCKWASHER

32шт.

37

16-1026

CAPSCREW

32шт.

38

16-947

COVER

2шт.

This part is different than the standard version on preceding Figure

1шт.

39

16-1023

CAPSCREW

16шт.

40

16-1020

PLUG

2шт.

41

16-1025

GASKET

2шт.

42

16-1017

THRUST BUTTON

2шт.
