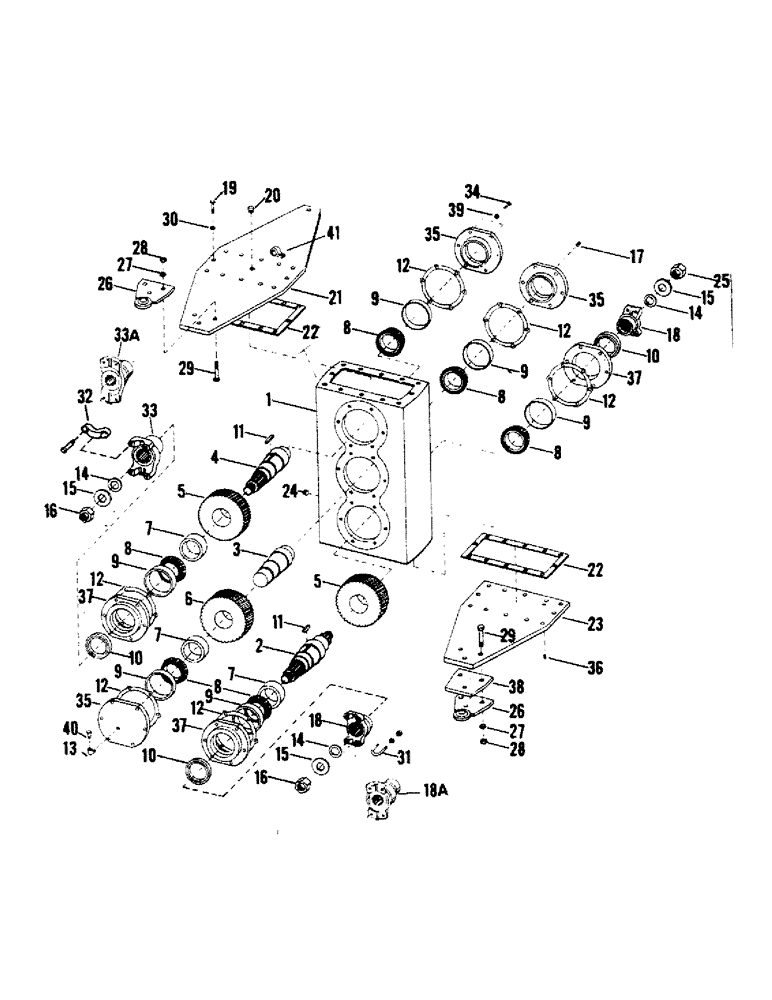

Запчасти Case IH STEIGER (04-41) - TRANSFER CASE W/TAPERED BEARINGS (04) - Drive Train

1-2612

CATALOG

CASE ASSY. (Spicer Yokes), consists of ref. nos. 1-41

1шт.

1-1431

CASE ASSY. (Mechanics Yokes), consists of Ref. 1-41

1шт.

1

2-92

BOX

machined

1шт.

P/N 02-092 Box replaces 65-019, as only difference is size of check hole which is 1-1/4" pipe, to be adaptable to cooling system, so if required for tractor without cooling, order 31-011 bushing also. 02-091 is case assy. without covers, mounting hardware and yokes and can be used as repair for 02-075 and 02-066.

1шт.

2

65-24

SHAFT

bottom

1шт.

3

65-23

SHAFT

middle

1шт.

4

65-22

SHAFT

top

1шт.

5

14-30

GEAR WHEEL

GEAR, top & bottom

2шт.

6

14-29

GEAR

middle

1шт.

7

65-25

SPACER

3шт.

8

65-29

BEARING

cone

6шт.

9

65-40

CUP

BEARING, cup

6шт.

10

69367C1

SEAL

SEAL, replaces 14-68T1

3шт.

11

2-70

KEY

2шт.

12

65-26

SHIM

GASKET, shim, .005, blue

1шт.

65-33

SHIM

GASKET, shim, .0075, clear

1шт.

65-34

SHIM

GASKET, shim, .020, yellow

1шт.

13

31-219

ELBOW

3/8" pipe

1шт.

14

2-39

GASKET

3шт.

15

2-34

WASHER

3шт.

16

14-59T1

NUT

RH

2шт.

17

31-36

PLUG

3/8" sq. hd

1шт.

18

65-43

FORK

YOKE, bottom, spicer

2шт.

18a

17-110

NO LONGER SERVICED

YOKE, bottom, mechanics

2шт.

19

19-221

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" NC x 1-1/2"

28шт.

20

31-35

PLUG

pipe 1/2" sq. hd

1шт.

21

65-35

LINK

top

1шт.

22

65-46

GASKET

link

2шт.

23

65-47

LINK

bottom

1шт.

24

31-33

PLUG

pipe, 1" sq. hd

1шт.

25

65-30

NUT

LH

1шт.

26

63-56

PLATE

bearing, replaced 02-004

1шт.

27

19-121

LOCK WASHER,3/4"

3/4"

6шт.

28

19-97

NUT,3/4"-16, G5

3/4" NF

6шт.

29

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4" NF x 3

6шт.

30

19-119

LOCK WASHER,1/2"

1/2"

28шт.

31

17-19

BOLT

U-BOLT W/WASHER & NUT

4шт.

32

17-52

CAP ASSY.

U-BOLT W/WASHER & NUT

2шт.

33

65-42

YOKE

top, spicer

1шт.

33a

17-112

YOKE, top, mechanics

1шт.

34

19-213

CAPSCREW, 7/16" NC x 1-3/4"

36шт.

35

65-100

CAP

bearing

3шт.

36

31-37

PLUG

1/4" sq. hd

1шт.

37

65-21

CAP

bearing

3шт.

38

2-47

SHIM

1шт.

39

19-118

LOCK WASHER,7/16"

7/16"

36шт.

40

31-303

BREATHER

in top cover on some

1шт.

41

32-70

CLAMP

1шт.
