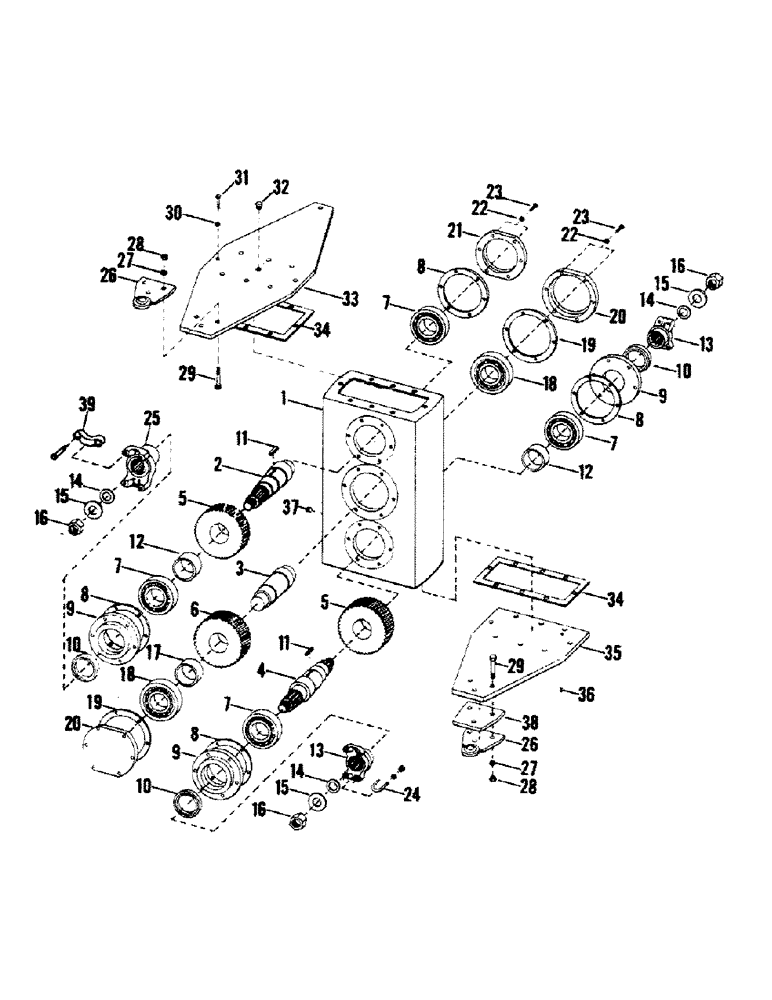

Запчасти Case IH STEIGER (04-40) - TRANSFER CASE ASSEMBLY - 02-075 (04) - Drive Train

1

2-64

SPARE PART Machined

1шт.

2

2-68

SHAFT

Top

1шт.

3

2-67

SHAFT

Middle

1шт.

4

2-69

SHAFT

Bottom

1шт.

5

14-30

GEAR WHEEL

Tops & bottom

2шт.

6

14-29

GEAR

Middle

1шт.

7

14-14

BEARING

4шт.

8

14-85

GASKET

Bearing cap

4шт.

9

2-55

BEARING CAP,3.62" ID x 7" OD x 1.25"

CAP, bearing

3шт.

10

69367C1

SEAL

(Replaces 14-68T1)

3шт.

11

2-70

KEY

2шт.

12

2-74

SPACER

Top & bottom

2шт.

13

65-43

FORK

YOKE, bottom (14-052) (B)

2шт.

14

2-39

GASKET

3шт.

15

2-34

WASHER

3шт.

16

14-59T1

NUT

3шт.

17

2-71

SPACER

Middle

1шт.

18

14-90

BALL BEARING,2.5591" ID x 5.5118" OD x 1.2998"

2шт.

19

14-86

GASKET

Bearing cap

2шт.

20

2-53

SPARE PART

2шт.

21

2-54

SPARE PART CAP, bearing

1шт.

22

19-118

LOCK WASHER,7/16"

36шт.

23

19-214

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

36шт.

24

17-19

BOLT

"U"

2шт.

25

65-42

YOKE

UNIVERSAL JOINT YOKE Top (14-053) (B)

1шт.

26

65-56

PLATE, bearing (02-004) (B)

2шт.

27

19-121

LOCK WASHER,3/4"

6шт.

28

19-97

NUT,3/4"-16, G5

6шт.

29

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

6шт.

30

19-119

LOCK WASHER,1/2"

16шт.

31

19-221

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

16шт.

32

14-34

SPARE PART VENT, air

1шт.

33

2-60

LARGE PLATE

PLATE, LARGE LINK, top

1шт.

34

2-61

GASKET

SPARE PART Link

2шт.

35

2-58

SPARE PART Bottom

1шт.

36

31-37

PLUG

1/4" sq. HD. pipe

1шт.

37

31-34

PLUG

3/4" sq. HD. pipe

1шт.

38

2-47

SHIM

1шт.

39

17-52

CAP ASSY.

U-BOLT

1шт.
