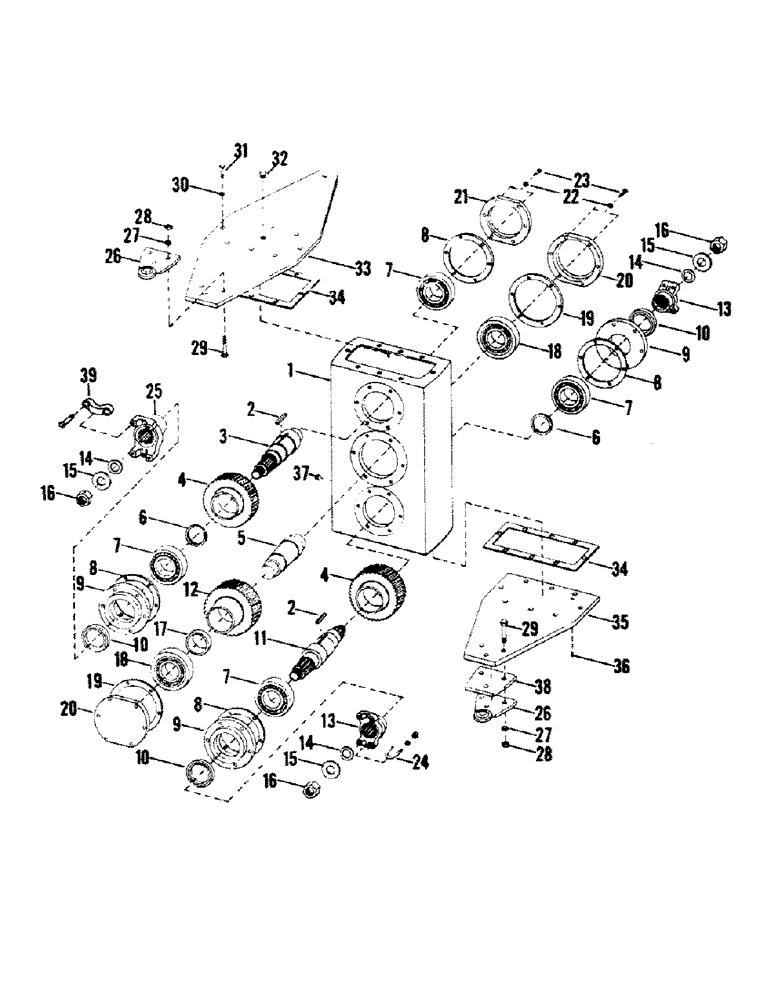

Запчасти Case IH STEIGER (04-39) - TRANSFER CASE ASSEMBLY - 02-066 (04) - Drive Train

1

2-64

BOX, machined

1шт.

2

2-65

KEY

2шт.

3

2-18

SHAFT

top

1шт.

4

14-61

GEAR

top & bottom

2шт.

5

2-52

SHAFT

middle

1шт.

6

14-71

RING, SNAP

2шт.

7

14-14

BEARING

4шт.

8

14-85

GASKET

bearing cap

4шт.

9

2-55

BEARING CAP,3.62" ID x 7" OD x 1.25"

CAP, bearing

3шт.

10

69367C1

SEAL

SEAL(replaces 14-68T1)

3шт.

11

2-56

SHAFT

bottom

1шт.

12

14-60

GEAR

middle (14-052) (B)

1шт.

13

65-43

FORK

YOKE, bottom

2шт.

14

2-39

GASKET

drive yoke

3шт.

15

2-34

WASHER

drive yoke

3шт.

16

14-59T1

NUT

3шт.

17

2-51

SPACER

1шт.

18

14-90

BALL BEARING,2.5591" ID x 5.5118" OD x 1.2998"

2шт.

19

14-86

GASKET

bearing cap

2шт.

20

2-53

CAP, bearing

2шт.

21

2-54

CAP, bearing

1шт.

22

19-118

LOCK WASHER,7/16"

7/16"

36шт.

23

19-214

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

CAPSCREW, 7/16" NF x 1-3/4"

36шт.

24

17-19

BOLT

U-BOLT

4шт.

25

65-42

YOKE

top (14-053) (B)

1шт.

26

65-56

PLATE, bearing (02-004) (B)

2шт.

27

19-121

LOCK WASHER,3/4"

3/4"

6шт.

28

19-97

NUT,3/4"-16, G5

3/4" N.F.

6шт.

29

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4" N.F. x 3"

6шт.

30

19-119

LOCK WASHER,1/2"

1/2"

16шт.

31

19-221

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" N.C. x 1-1/2"

16шт.

32

14-34

VENT, air

1шт.

33

2-57

LINK

top

1шт.

34

2-61

GASKET

link

2шт.

35

2-58

LINK, bottom

1шт.

36

31-37

PLUG

1/4" sq. HD. pipe

1шт.

37

31-34

PLUG

3/4" sq. HD. pipe

1шт.

38

2-47

SHIM

1шт.

39

17-52

CAP ASSY.

U-BOLT

2шт.
