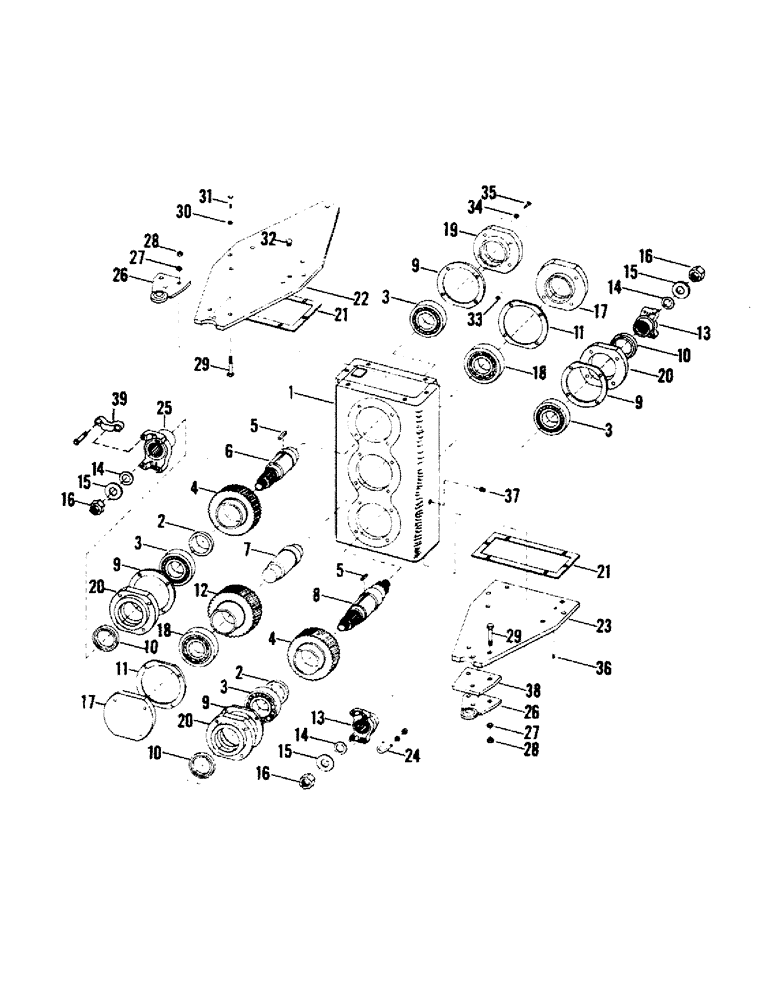

Запчасти Case IH STEIGER (04-38) - TRANSFER CASE ASSEMBLY - 02-043 (04) - Drive Train

1

2-26

CASE, weldment

1шт.

2

2-30

SPACER

2шт.

3

14-14

BEARING

ball

4шт.

4

14-61

GEAR

top & bottom

2шт.

5

2-42

KEY

2шт.

6

2-29

SHAFT, top

1шт.

7

2-35

SHAFT, middle

1шт.

8

2-38

SHAFT, bottom

1шт.

9

2-33

GASKET

4шт.

10

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

SEAL

3шт.

SHOULD BE 14-68T1, WHICH SUBS TO 69367C1 HW.

1шт.

11

2-37

GASKET, middle cap

2шт.

12

14-60

GEAR

middle

1шт.

13

65-43

FORK

YOKE, bottom (14-052)

2шт.

Superseded, old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

14

2-39

GASKET

drive yoke

3шт.

15

2-34

WASHER

drive yoke

3шт.

16

14-59

BOLT,Hex, 5/16" - 24 x 9/16", Gr 5

NUT

3шт.

Should be 14-59T1 Tech. Notes

1шт.

17

2-36

CAP, bearing

2шт.

18

14-90

BALL BEARING,2.5591" ID x 5.5118" OD x 1.2998"

2шт.

19

2-32

CAP, bearing

1шт.

20

2-31

CAP, bearing

3шт.

21

2-40

GASKET

link

2шт.

22

2-27

LINK, top

1шт.

23

2-28

LINK, bottom

1шт.

24

17-19

BOLT

U-BOLT, washer & nut

2шт.

25

65-42

YOKE

(14-053) (B)

1шт.

26

65-56

PLATE, bearing (02-004) (B)

2шт.

Some Series II tractors with 3208 engines have had different exhaust manifolds installed that have a round outlet requiring a V-Clamp, P/N 31-1038, rather the square flange shown here. These require different header pipes, Ref. 5, 01-9376T1, RH and 01-9375T1, LH. These 2 pipes and 2 clamps are also available in kit P/N 35-1164T91

1шт.

27

19-121

LOCK WASHER,3/4"

3/4"

6шт.

28

19-84

NUT,3/4"-10, G5

N.C.

6шт.

29

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

CAPSCREW, 3/4" x 3" N.F.

6шт.

30

19-119

LOCK WASHER,1/2"

1/2"

12шт.

31

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" x 1-1/2" N.C.

12шт.

32

14-34

VENT, air

1шт.

33

19-78

SPECIAL NUT,3/8"-16, G5

3/8" N.C.

24шт.

34

19-117

LOCK WASHER,3/8"

3/8"

24шт.

35

19-24

BOLT,3/8" - 16 x 2 1/4", Gr 5

CAPSCREW, hex hd.

24шт.

36

31-37

PLUG

1/4" sq. hd. pipe

1шт.

37

31-34

PLUG

3/4" sq. hd. pipe

1шт.

38

2-47

SHIM

1шт.

39

17-52

CAP ASSY.

U-BOLT

1шт.

FOOTNOTE

1шт.

REF. 10 SHOULD BE 14-68T1, WHICH SUBS TO 69367C1 HW.

1шт.

FOOTNOTE

1шт.

Ref. 16 - Should be 14-59T1 Tech. Notes

1шт.
