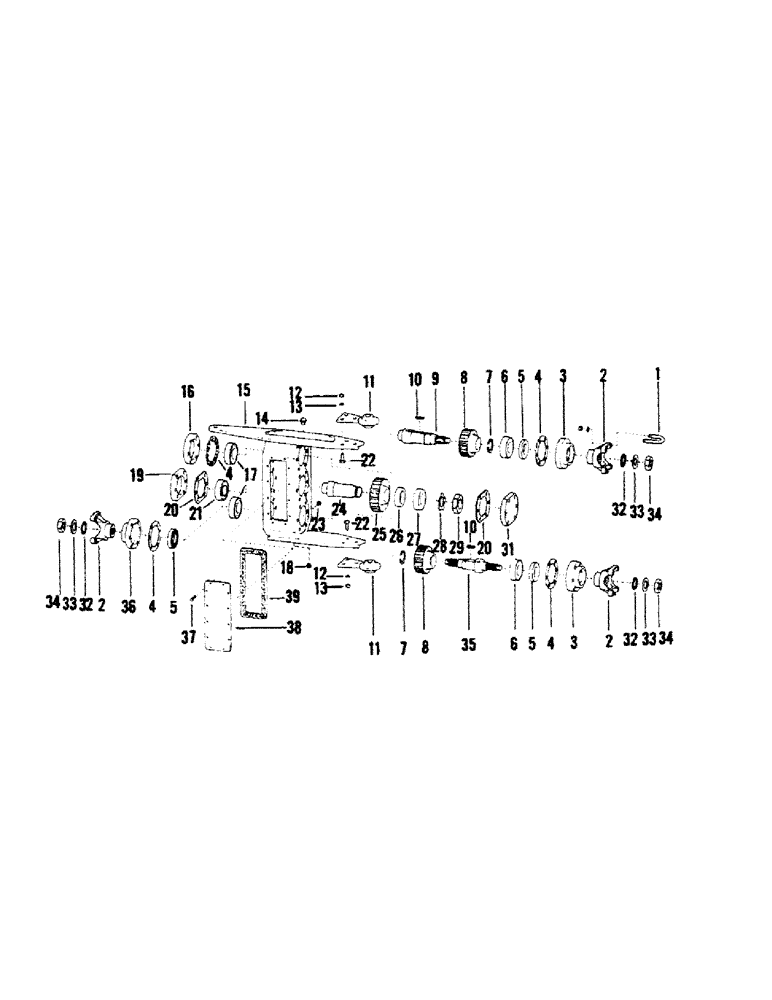

Запчасти Case IH STEIGER (04-37) - TRANSFER CASE - 14-001, USED ON EARLY SERIES I WC & SWC (04) - Drive Train

1

17-19

BOLT

U-BOLT w/LOCKWASHER & NUT

3шт.

2

65-43

FORK

YOKE (repl. 14-052)

3шт.

3

2-55

BEARING CAP,3.62" ID x 7" OD x 1.25"

CAP, top and bottom front

2шт.

4

14-85

GASKET

cap

4шт.

5

14-70

SEAL

3шт.

6

14-14

BEARING

2шт.

7

14-71

RING, SNAP

2шт.

8

14-61

GEAR

(36T)

2шт.

9

2-18

SHAFT

top

1шт.

10

2-70

KEY

2шт.

11

63-56

PLATE

bearing (02-004) (B)

2шт.

12

19-121

LOCK WASHER,3/4"

3/4"

6шт.

13

19-97

NUT,3/4"-16, G5

3/4" N.F.

6шт.

14

31-303

BREATHER

1шт.

15

14-2

BOX, drop

1шт.

16

2-54

CAP, top rear

1шт.

17

14-14

BEARING

2шт.

18

31-35

PLUG

drain

1шт.

19

14-103

CAP, middle rear

1шт.

20

14-86

GASKET

COVER

2шт.

21

14-90

BALL BEARING,2.5591" ID x 5.5118" OD x 1.2998"

1шт.

22

19-68

BOLT,Hex, 3/4" - 16 x 3", Gr 5

3/4" x 3 N.F. hex

6шт.

23

31-34

PLUG

check

1шт.

24

2-52

SHAFT

middle

1шт.

25

14-60

GEAR

middle

1шт.

26

2-51

SPACER

1шт.

27

14-90

BALL BEARING,2.5591" ID x 5.5118" OD x 1.2998"

1шт.

28

14-83

WASHER, lock

1шт.

29

14-82

BOLT

NUT

1шт.

31

2-53

CAP, front middle

1шт.

32

14-57

SEAL

O-RING

3шт.

33

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

WASHER

3шт.

34

14-59T1

NUT

3шт.

35

2-56

SHAFT

bottom

1шт.

36

14-104

COVER

CAP, bottom rear

1шт.

37

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8" x 1 N.C.

24шт.

38

14-3

COVER

1шт.

39

14-84

GASKET, cover

1шт.
