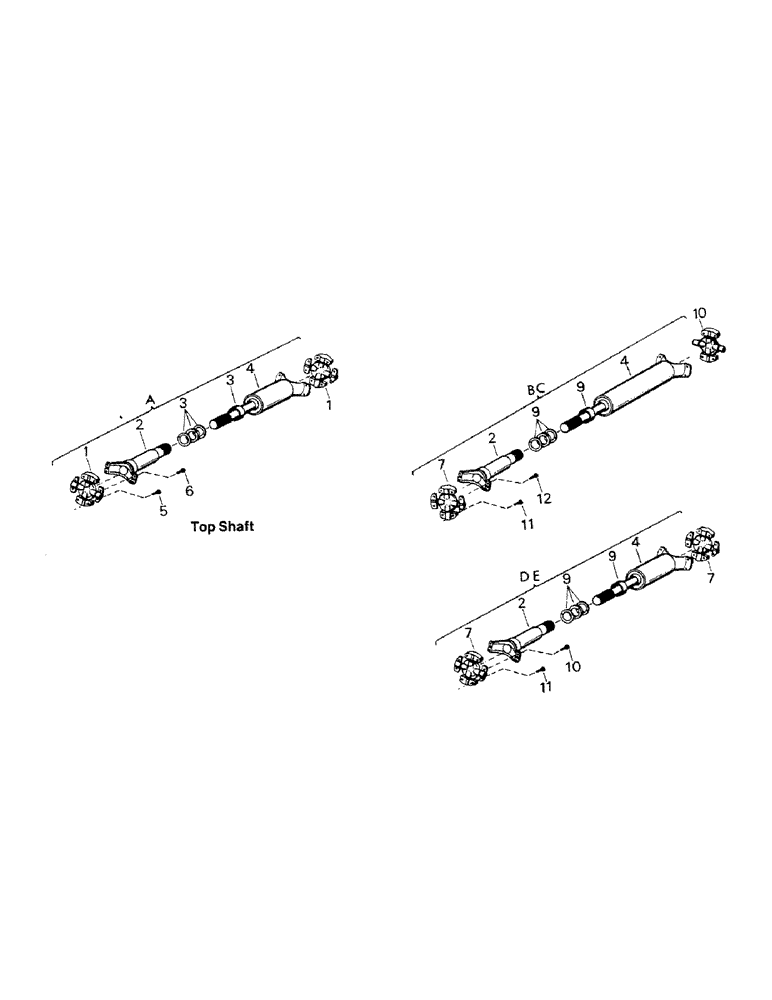

Запчасти Case IH STEIGER (04-36) - DRIVESHAFTS, MECHANICS STYLE (04) - Drive Train

a

17-130

DRIVESHAFT, top (BCI 2799 & up & all Series II except models w/fuller trans. or adj. axle)

1шт.

b

17-221

DRIVESHAFT, bottom front (BCI 2799 & up to BC II 3027, WC-SWC I 8630 to 8675 except adj. axle)

1шт.

P/N 17-221 & 17-222 are the same as 17-111 and 17-109 except that the axle end has an adapter style U.J. Kit, 17-145, which is half mechanics and half Spicer. These were used when the Transfer Case had mechanics style yokes and axle had Spicer style. It is suggested that to avoid problems, order 17-109 or 17-111 along with 2 of 17-145 adapter as this will allow servicing tractors with 05-054 or 05-162 as well as 17-221 and 17-222, on preceding page, by subbing the adpater joints as neeeded.

1шт.

c

17-222

DRIVESHAFT, rear (same usage as B)

1шт.

P/N 17-221 & 17-222 are the same as 17-111 and 17-109 except that the axle end has an adapter style U.J. Kit, 17-145, which is half mechanics and half Spicer. These were used when the Transfer Case had mechanics style yokes and axle had Spicer style. It is suggested that to avoid problems, order 17-109 or 17-111 along with 2 of 17-145 adapter as this will allow servicing tractors with 05-054 or 05-162 as well as 17-221 and 17-222, on preceding page, by subbing the adpater joints as neeeded.

1шт.

d

17-111

DRIVE SHAFT

DRIVESHAFT, bottom front (all Series II except BC 3001-3027 & all w/adj. axle)

1шт.

e

17-109

DRIVESHAFT, rear (same usage as D)

1шт.

1

17-201

BEARING

U.J. KIT

1шт.

2

NSS

NOT SOLD SEPARAT

SLIP YOKES

1шт.

Slip yokes and Tube assys. are not offered as service parts due to balancing problems and variances in splines. Complete shaft must be ordered.

1шт.

3

2-3843T1

RING, SET

CAP & SEAL KIT

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE ASSYS

1шт.

Slip yokes and Tube assys. are not offered as service parts due to balancing problems and variances in splines. Complete shaft must be ordered.

1шт.

5

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

CAPSCREW, 1/2" NF x 2"

8шт.

6

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW, 7/16" NF x 1-1/16"

7шт.

7

17-175

U-JOINT SPIDER

U.J. KIT

1шт.

8

17-145

SPIDER ASSY.

U.J. KIT

1шт.

P/N 17-221 & 17-222 are the same as 17-111 and 17-109 except that the axle end has an adapter style U.J. Kit, 17-145, which is half mechanics and half Spicer. These were used when the Transfer Case had mechanics style yokes and axle had Spicer style. It is suggested that to avoid problems, order 17-109 or 17-111 along with 2 of 17-145 adapter as this will allow servicing tractors with 05-054 or 05-162 as well as 17-221 and 17-222, on preceding page, by subbing the adpater joints as neeeded.

1шт.

9

2-3829T1

SEAL RETAINER

CAP & SEAL KIT

1шт.

10

19-921

BOLT,Hex, 3/8" - 24 x 1", Gr 8

CAPSCREW, 3/8" NF x 1"

8шт.

11

19-536

BOLT,3/8" - 24 x 1 3/4", Gr 8

CAPSCREW, 3/8" NF x 1-3/4"

8шт.
