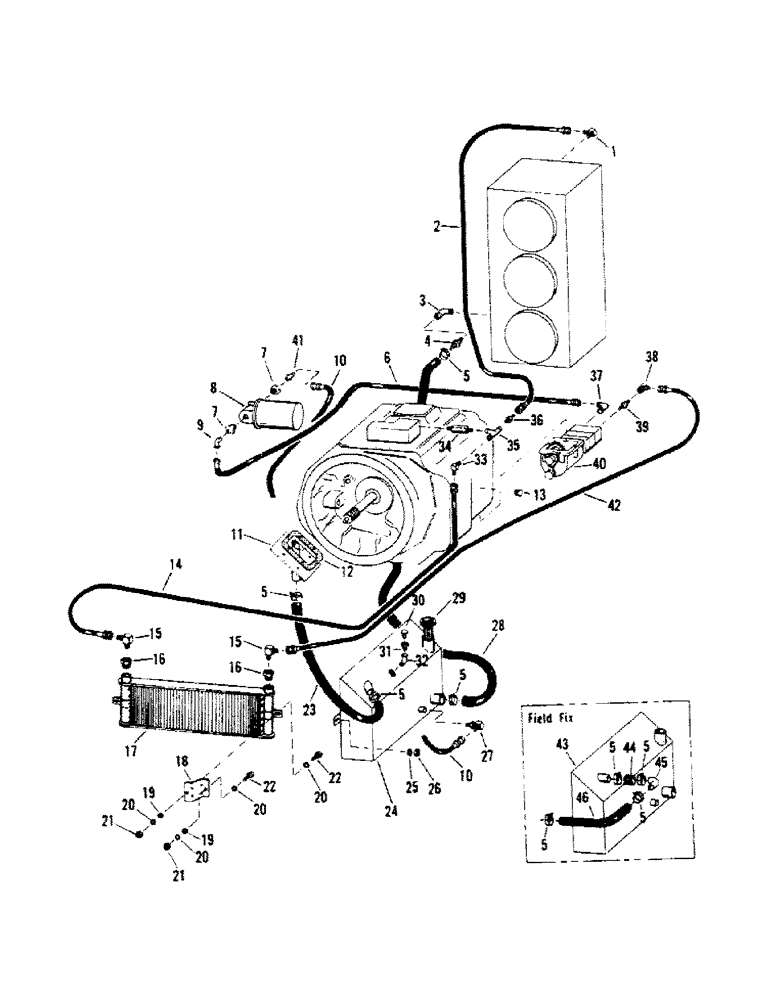

Запчасти Case IH STEIGER (04-33) - TRANSMISSION & TRANSFER CASE COOLING - SPICER (04) - Drive Train

1

31-490

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

1шт.

2

32-216

HOSE ASSEMBLY

1шт.

3

31-475

ELBOW

REDUCER, st. elbow

1шт.

4

31-373

PIPE

BARB, fitting

1шт.

5

32-140

CLAMP,#34, 1.94"-2.25", T-Bolt

HOSE CLAMP

4шт.

6

12-1663

HOSE,SAE 100R1

SAE 100R1

1шт.

7

31-12

REDUCER

BUSHING

2шт.

8

18-501

FILTER

ASSEMBLY

1шт.

18-502

FILTER CARTRIDGE

ELEMENT, replacement

1шт.

12-1664

BRACKET

filter

1шт.

9

31-21

ELBOW

ST. ELBOW, 3/4"

1шт.

10

32-202

HOSE

ASSEMBLY

1шт.

11

12-1704

PLATE

drain (can use 12-1990 & 1/4" pipe plug)

1шт.

12

2-2769

GASKET

1шт.

13

12-1487

PLUG

1шт.

14

32-173

HOSE ASSEMBLY

1шт.

15

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

16

31-175

FITTING,1"-11 1/2" Male NPTF x 1/2"-14 Female NPTF

BUSHING

2шт.

17

10-12

COOLER

oil

1шт.

18

5-154

BRACKET

2шт.

19

19-107

WASHER

3/8"

6шт.

20

18-117

LOCKWASHER, 3/8"

6шт.

21

19-78

SPECIAL NUT,3/8"-16, G5

3/8" UNC

4шт.

22

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8" x 1" UNC

6шт.

23

32-248

SUCTION HOSE

1шт.

24

1-371

TANK ASSEMBLY

1шт.

25

19-223

WASHER,1/4"

3/4"

3шт.

26

280129

NUT,1/4"-20

NUT, 1/2" 2-way lock

3шт.

27

18-587

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

1шт.

28

32-249

HOSE SUCTION

1шт.

29

6-1506

DIPSTICK

GAUGE

1шт.

30

31-303

BREATHER

1шт.

31

31-73

BUSHING

REDUCER BUSHING

1шт.

32

31-220

ADAPTER

STREET ELBOW, 45 deg., 3/4"

1шт.

33

31-320

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

1шт.

34

18-1039

NIPPLE, LUBE

NIPPLE, 3/8", .156 orifice

1шт.

35

31-31

TEE,3/8"-18 Female

3/8" pipe

1шт.

36

18-84

FITTING, external pipe

1шт.

37

31-466

PIPE

FITTING, external pipe

1шт.

38

31-473

FITTING

(tapped w/1/8" NPT)

1шт.

31-515

ELBOW

1/8" x 90 deg. brass

1шт.

39

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

FITTING, 3/8" pipe - 7/8" JIC

1шт.

40

PUMP ASSEMBLY (see figure 4-28)

1шт.

41

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

FITTING, external pipe

1шт.

42

32-172

HOSE ASSEMBLY

1шт.

43

1-350

TANK

1шт.

44

32-251

SUCTION HOSE, 3" lg.

1шт.

45

31-509

ELBOW, 1-1/2", 90 deg.

1шт.

46

32-250

SUCTION HOSE, 11" lg.

1шт.
