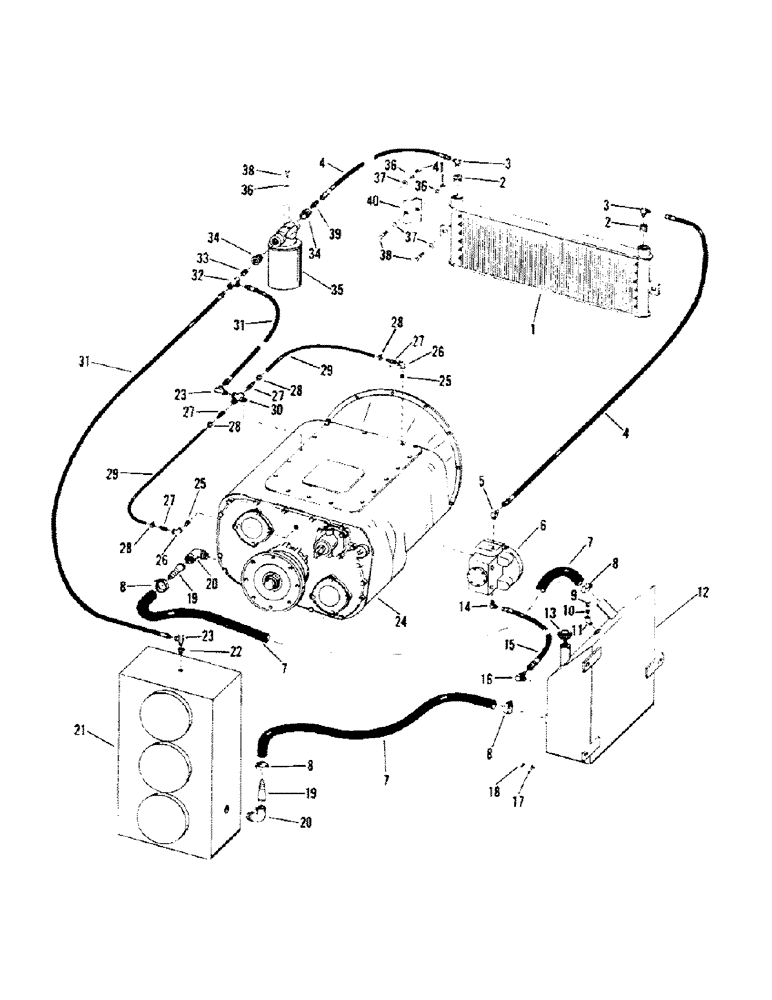

Запчасти Case IH STEIGER (04-32) - TRANSMISSION & TRANSFER CASE COOLING - FULLER (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
10-12
COOLER
OIL COOLER
1шт.
2
31-175
FITTING,1"-11 1/2" Male NPTF x 1/2"-14 Female NPTF
BUSHING, 1/25" x 1"
2шт.
3
31-340
ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF
FITTING, 90 deg.
2шт.
4
32-147
HOSE
2шт.
5
18-1155
FITTING
1шт.
31-515
ELBOW
FITTING (oil pressure)
1шт.
6
12-1709
PUMP
1шт.
7
32-158
HOSE
2шт.
8
32-134
CLAMP,#28, 1.75"-2.00", T-Bolt
HOSE CLAMP
4шт.
9
31-149
BREATHER
1шт.
10
31-73
BUSHING
3/4" - 3/8"
1шт.
11
31-220
ADAPTER
STREET ELBOW, 45 deg., 3/4"
1шт.
12
1-350
OIL TANK
1шт.
13
6-1506
DIPSTICK
GAUGE
1шт.
14
31-320
ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF
FITTING, 90 deg.
1шт.
16
18-587
ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF
FITTING, 90 deg.
1шт.
17
19-223
WASHER,1/4"
1/4
3шт.
18
280129
NUT,1/4"-20
NUT, 1/4 - 2-way lock
3шт.
19
31-1
PIPE
KING NIPPLE, 1-1/2"
2шт.
20
31-475
ELBOW
STREET ELBOW, 90 deg.
2шт.
21
2-85
DROP BOX ASSEMBLY
1шт.
22
31-178
BUSHING
1/2" - 3/8"
1шт.
23
31-500
UNION
FITTING, 90 deg.
2шт.
24
TRANSMISSION, fuller
1шт.
25
31-160
NIPPLE, LUBE
CLOSE NIPPLE, 1/4" pipe
2шт.
26
31-41
ELBOW
90 deg. 1/4" pipe
2шт.
27
31-137
FITTING
HOSE ADAPTER
4шт.
28
32-59
HOSE CLAMP,#4, 0.25/0.62 Type M Worm
4шт.
29
5-165
HOSE
2шт.
30
5-168
TEE, oil return
1шт.
31
32-92
HOSE
2шт.
32
31-31
TEE,3/8"-18 Female
PIPE TEE, 3/8"
1шт.
33
31-213
NIPPLE, LUBE
CLOSE NIPPLE, 3/8" pipe
1шт.
34
31-238
BUSHING, 1-3/8" pipe
2шт.
35
18-501
FILTER
ASSEMBLY
1шт.
18-502
FILTER CARTRIDGE
REPLACEMENT ELEMENT
1шт.
36
19-117
LOCK WASHER,3/8"
3/8"
6шт.
37
19-107
WASHER
3/8"
6шт.
38
19-17
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAPSCREW, 3/8" x 1" UNC
6шт.
39
31-319
HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF
ADAPTER
1шт.
40
5-154
BRACKET
2шт.
41
19-78
SPECIAL NUT,3/8"-16, G5
3/8" UNC
4шт.
Выбрано товаров: 43
