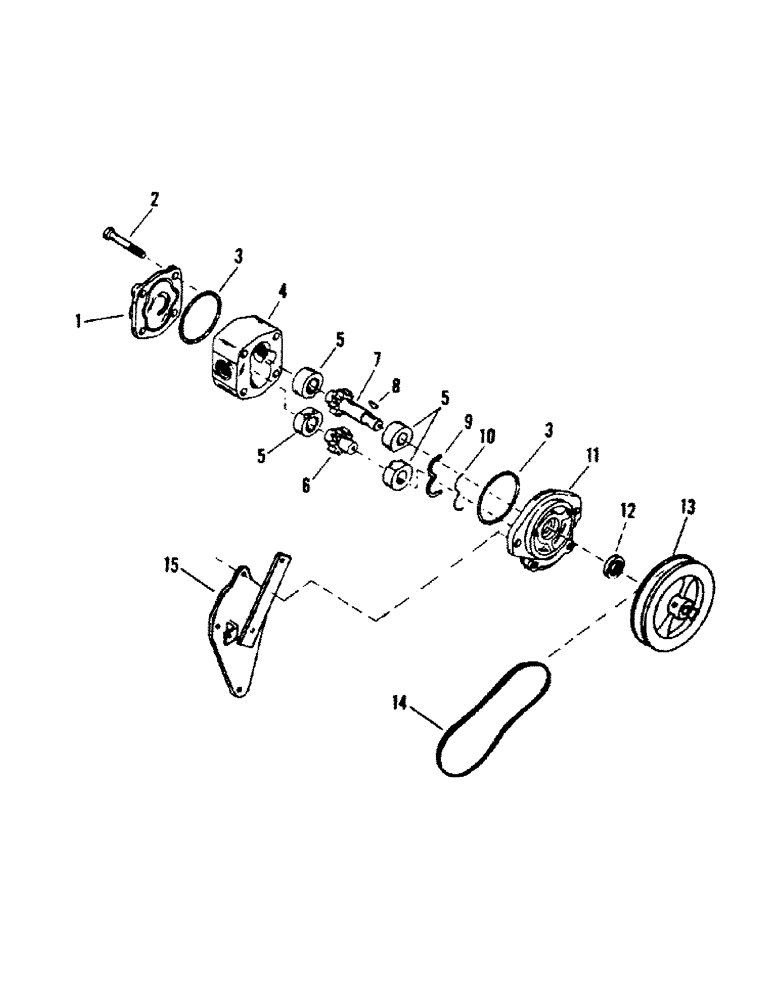

Запчасти Case IH STEIGER (04-18) - TRANSMISSION COOLER PUMP (04) - Drive Train

18-110

PUMP

transmission oil cooler, consists of ref. nos. 1-12

1шт.

1

18-97

COVER, rear

1шт.

2

18-98

SCREW, cap

4шт.

3

18-99

GASKET

2шт.

4

18-185

BODY, pump

1шт.

5

18-186

BEARING

4шт.

6

18-194

GEAR

1шт.

7

18-187

GEAR

1шт.

8

18-188

KEY

1шт.

9

18-189

SEAL, gasket

1шт.

10

18-190

SPACER, rubber

1шт.

11

18-192

COVER, front

1шт.

12

18-193

SEAL, shaft

1шт.

13

6-28

PULLEY, 6"

1шт.

14

6-25

V-BELT 0.53" W x 50.00" L (Use w/5" pulley) 0.53" W x 50.00" L

1шт.

6-26

BELT (use w/5" pulley)

1шт.

15

5-153

COOLER PUMP MOUNT

1шт.
