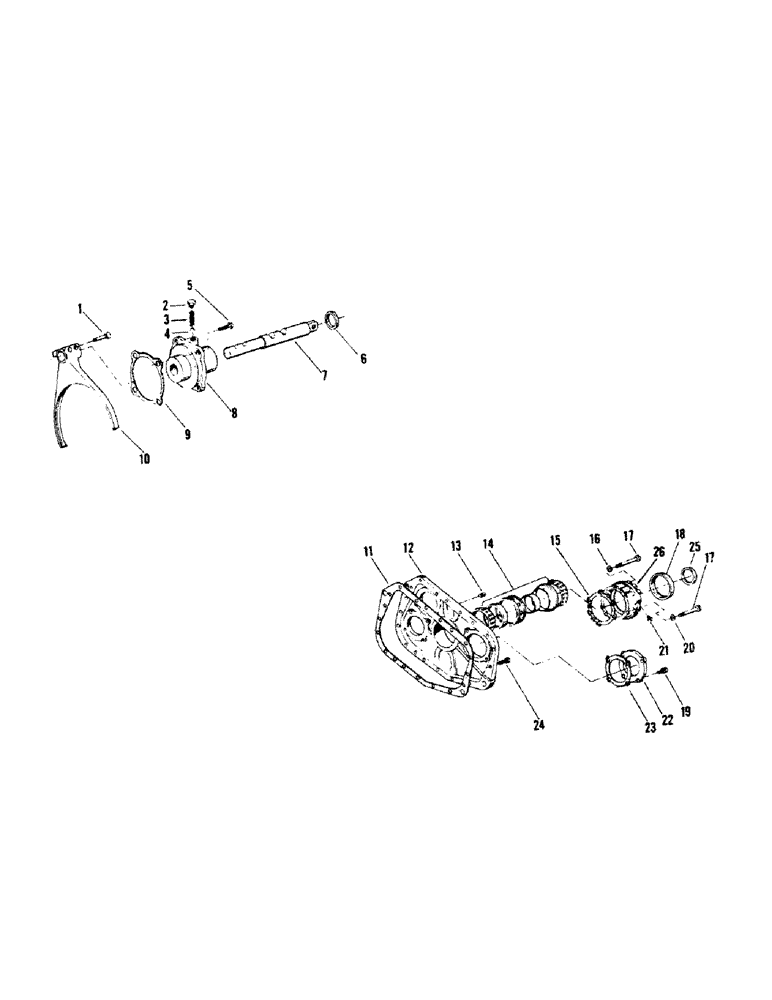

Запчасти Case IH STEIGER (04-16) - RANGE SHIFT & REAR COVER ASSEMBLIES - FULLER (04) - Drive Train

1

12-1360

CAPSCREW, 1/2" NF x 2"

2шт.

2

12-1306

PLUG

2шт.

2a

12-66

PLUG

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

3

12-1307

SPRING

2шт.

3a

12-67

SPRING

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

a

12-68

PLUNGER (between Spring & Ball on early versions not shown)

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

4

12-1008

BALL, 1/2"

2шт.

4a

12-69

BALL

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

5

12-1018

BOLT

CAPSCREW, 3/8" NC x 1-1/4"

4шт.

6

12-1305

SCRAPER

1шт.

6a

18-167

SHAFT

SEAL

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

7

12-1297

BAR

1шт.

7a

12-1352

BAR

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

a

5-126

DETENT SHAFT, Serial Range: (attached-7A)

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

a

12-13

SWIVEL EYE BOLT, Serial Range: (attaches-05-126)

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

8

12-1303

HOUSING

1шт.

8a

5-122

HOUSING

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

9

12-1304

GASKET

1шт.

10

12-1299

FORK

YOKE

1шт.

10a

YOKE (14338 Fuller part #, not stocked at Steiger)

1шт.

Some 1970-71 tractors used a different range shift than illustrated here. It can be easily identified in that the housing, item 8, is more cone-shaped with only 1 set of detent parts, cap, spring, etc. and the detent shaft has a swivel eye bolt at the outer end. These parts are identified by the suffix "A" below the comparable part. In cases where extensive repair is needed, it is recommended that the complete later style be ordered as it does perform much better.

1шт.

11

12-1116

GASKET

1шт.

12

12-1300

COVER

HOUSING

1шт.

13

12-1315

SLEEVE

PLUG, pipe, 1/4"

1шт.

14

12-1296

BEARING

1шт.

15

12-1308

GASKET

1шт.

16

12-1311

X

WASHER, lock

5шт.

17

12-1310

X

CAPSCREW, 3/8" NC x 2-3/4" and

5шт.

12-1377

CAPSCREW, Eslok, 3/8" NC x 2-3/4"

5шт.

18

12-1312

OIL SEAL

1шт.

19

12-1109

CAPSCREW, 3/8" NC x 1"

1шт.

20

12-1385

WASHER, brass

1шт.

21

12-1384

PLUG

1шт.

22

12-1354

COVER

2шт.

23

12-1243

GASKET

2шт.

24

12-1376

CAPSCREW, 3/8" NC x 1-3/4"

15шт.

12-1302

X

WASHER, lock and

4шт.

12-1301

CAPSCREW, 3/8" NC x 2" and

4шт.

25

12-1351

SPACER

speedometer replacement

1шт.

26

12-1309

RETAINER & SEAL ASSY. (incl. #18)

1шт.
