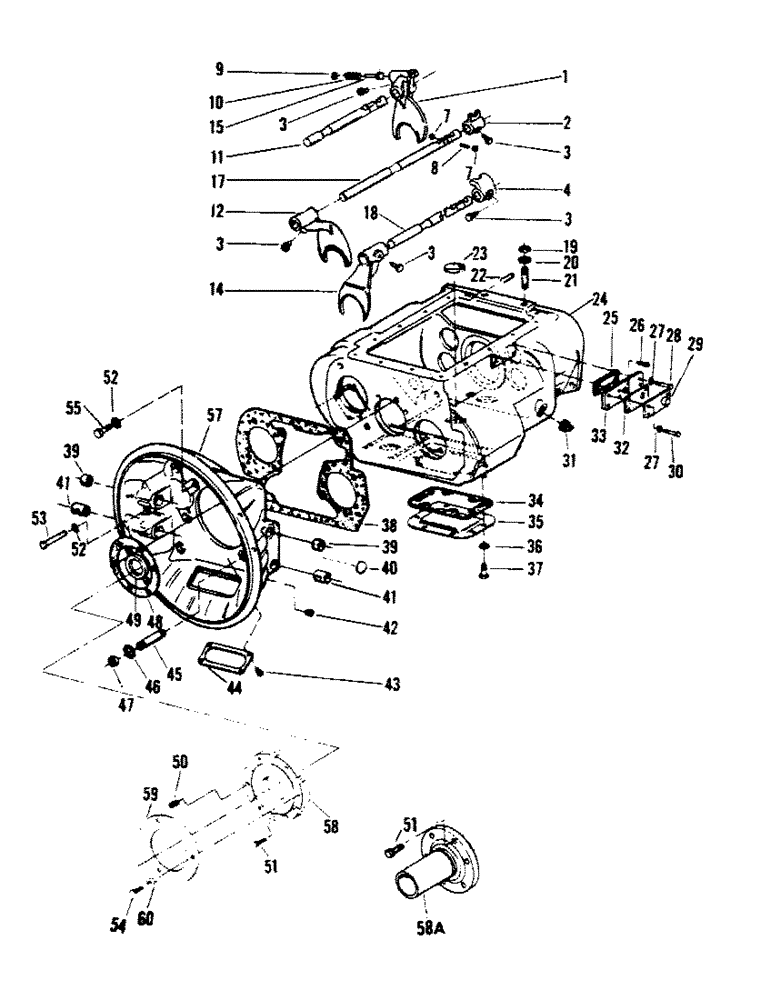

Запчасти Case IH STEIGER (04-12) - MAIN HOUSING - FULLER TRANSMISSION (04) - Drive Train

1

12-1212

FORK

YOKE, reverse

1шт.

2

12-1208

BLOCK

2nd speed

1шт.

3

12-1210

SCREW

lock

5шт.

4

12-1213

BLOCK

direct

1шт.

7

12-1009

BALL, 3/4"

2шт.

8

12-1010

PIN

1шт.

9

12-1205

PLUG

1шт.

10

12-1206

SPRING

1шт.

11

12-1202

BAR

reverse

1шт.

12

12-1209

FORK

YOKE, 2nd speed

1шт.

14

12-1211

FORK

YOKE, direct

1шт.

15

12-1207

PLUNGER

1шт.

17

12-1200

BAR

2nd speed

1шт.

18

12-1201

BAR

direct

1шт.

19

19-96

NUT,5/8"-18, G5

5/8" NF

2шт.

20

19-120

LOCK WASHER,5/8"

5/8"

2шт.

21

12-1274

STUD

2шт.

22

12-1114

PIN, dowel

2шт.

23

12-1284

DISC, magnetic

3шт.

24

12-1281

BOX

CASE

1шт.

25

12-1362

GASKET

1шт.

26

12-1364

CAPSCREW, 1/4" NC x 5/8"

2шт.

27

19-115

LOCK WASHER,1/4"

1/4"

6шт.

28

19-541

BOLT,1/4" - 20 x 7/8", Gr 5

CAPSCREW, 1/4" NC x 7/8"

2шт.

29

12-1367

LARGE PLATE

COVER

1шт.

30

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4" NC x 5/8"

1шт.

31

12-1283

X

PLUG, 1-1/4" pipe

1шт.

32

12-1366

GASKET

1шт.

33

12-1363

PLATE

1шт.

34

12-1029

GASKET

1шт.

35

12-1278

COVER

1шт.

36

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

37

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

CAPSCREW, 7/16" NC x 1"

8шт.

38

12-412

GASKET

1шт.

39

12-1369

BUSHING

1шт.

40

31-90

PLUG

expansion

1шт.

41

12-1368

BUSHING

1шт.

42

12-1077

PLUG

1шт.

43

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

CAPSCREW, 5/16" NC x 1/2"

4шт.

44

12-1265

HOUSING

COVER, no. 1 housing

1шт.

45

12-1266

STUD

6шт.

46

19-111

WASHER,5/8"

plain 6 5/8"

4шт.

47

408

NUT,5/8" - 18, Gr 5

Elastic stop 5/8"-18, G5

6шт.

48

12-413

GASKET

1шт.

49

12-1158

OIL SEAL

w/spicer clutch

1шт.

12-1016

SEAL

w/push release clutch

1шт.

50

12-416

SPRING

3шт.

51

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8" NC x 1-1/4"

6шт.

19-117

LOCK WASHER,3/8"

3/8"

6шт.

52

19-119

LOCK WASHER,1/2"

1/2"

4шт.

53

19-49

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAPSCREW, 1/2" NC x 3-1/2"

2шт.

54

12-417

BOLT

CAPSCREW, 3/8" NC x 1"

4шт.

55

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2" NC x 1-1/2"

2шт.

56

NOT USED

1шт.

57

12-1264

HOUSING

1шт.

58

12-1161

COVER (use w/Spicer Clutch)

1шт.

58a

12-1153

COVER (use w/Push Release Clutch)

1шт.

59

12-415

LARGE PLATE

PLATE

1шт.

60

12-418

SLEEVE

3шт.
