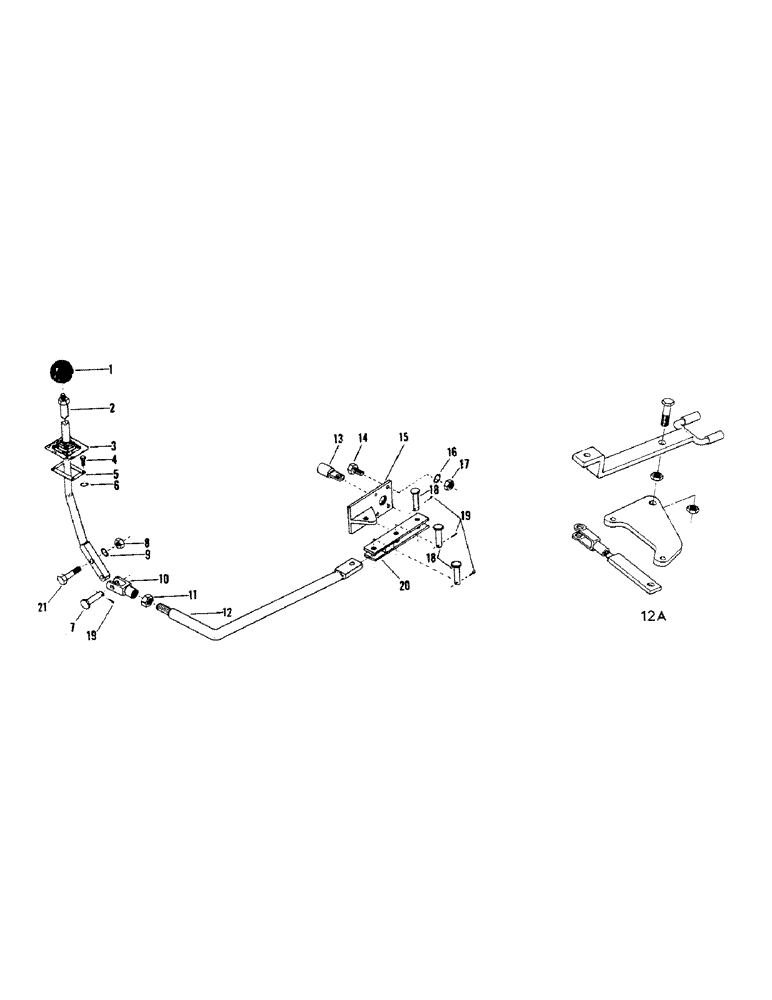

Запчасти Case IH STEIGER (04-09) - TWO-SPEED TRANS. SHIFT LINKAGES - SERIES I (04) - Drive Train

1

19-136

KNOB

1шт.

2

5-43

LEVER, shift

1шт.

3

24-12

BOOT

1шт.

4

19-129

SCREW

4шт.

5

4-217

PLATE

1шт.

6

19-105

WASHER,1/4", SAE

4шт.

7

19-142

CLEVIS PIN,1/2" x 1.36"

PIN

1шт.

8

19-85

LOCK NUT

3/4" NC

1шт.

9

19-121

LOCK WASHER,3/4"

3/4"

1шт.

10

19-137

CLEVIS

YOKE, 1/2"

1шт.

11

19-93

NUT,1/2"-20, G5

1/2" NF

1шт.

12

5-357

LINKAGE ROD, 2-speed

1шт.

12a

94-74-2

LINKAGE ASSY., field installed

1шт.

The 94-74-2 shift assy. shown above was used on many BCI with Spicer trans. as a field fix for item 12 which would sometimes bind and cause hard shifting. Anyone having problems should order this assy., or consider ordering the cable and lever shown on the following page along with items 15, 23-25.

1шт.

13

55-11

ADAPTER, mechanical shift

1шт.

14

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16" NC x 1"

1шт.

15

55-14

MOUNT, shift

1шт.

16

19-116

LOCK WASHER,5/16"

5/16"

4шт.

17

19-77

NUT,5/16"-18, G5

5/16" NC

7шт.

18

19-250

PIN

5/16" x 1-1/4"

3шт.

19

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

20

55-25

LINKAGE, shifter

1шт.
