Запчасти Case IH STEIGER (04-08) - 14" CLUTCH ASSEMBLY - SPICER (04) - Drive Train

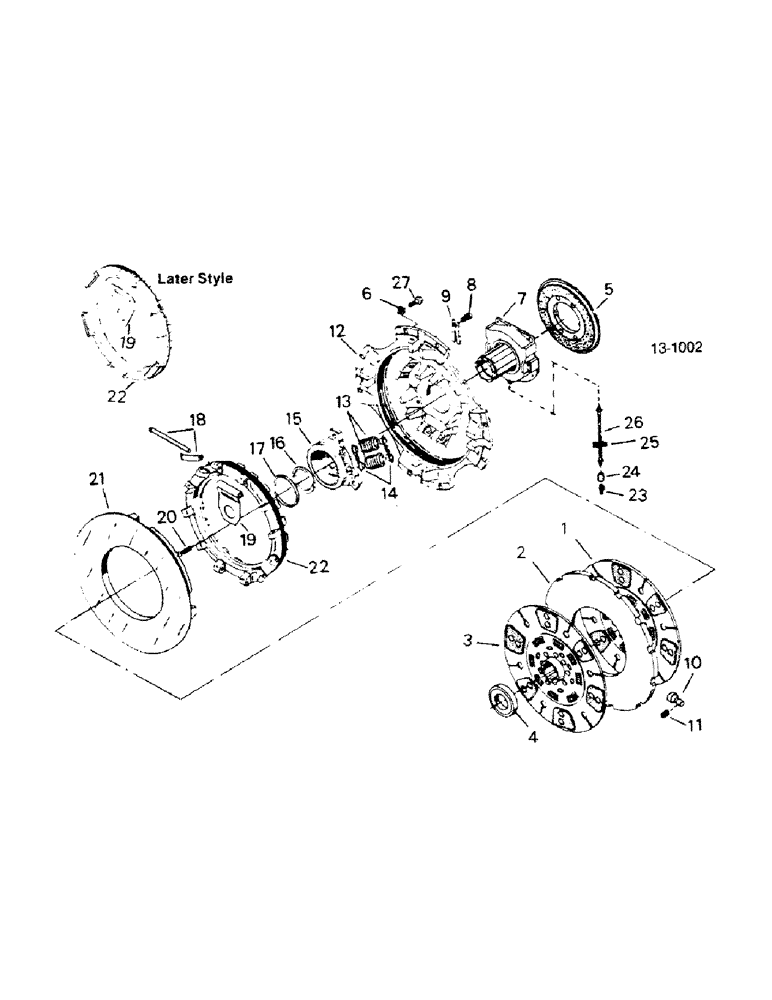

Схема запчастей Case IH STEIGER - (04-08) - 14" CLUTCH ASSEMBLY - SPICER (04) - Drive Train
17
27
19
24
10
5
11
7
3
4
15
8
22
21
12
18
6
23
9
25
16
2
13
20
19
22
26
14

Артикул

Название

Примечание

Количество

1

13-145

DISC, rear (4 button)

1шт.

13-147

DISC

rear (6 button ceramic)

1шт.

13-147T2

CLUTCH DISC

DISC, rear (6 button metallic)

1шт.

2

13-138

PLATE, intermediate (4 button)

1шт.

13-148

CLUTCH DISC

PLATE, intermediate (6 button)

1шт.

3

13-144

DISC, front (4 button)

1шт.

13-146

DISC

front (6 button ceramic)

1шт.

13-146T2

DISC

front (6 button metallic)

1шт.

4

66-39

BALL BEARING,1.1811" ID x 2.8346" OD x 0.7486"

pilot

1шт.

5

13-178

BRAKE

CLUTCH BRAKE

1шт.

6

19-117

LOCK WASHER,3/8"

3/8"

8шт.

13-139

PLATE

PRESSURE PLATE ASSY., consists of Ref. 7 - 22

1шт.

7

13-179

KIT

BEARING & SLEEVE ASSEMBLY

1шт.

8

13-160

BOLT & LOCK WASHER

1шт.

9

13-159

STRIP

LOCK

1шт.

10

13-167

PIN

DRIVE PIN

6шт.

11

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

12шт.

12

13-155

OIL SEAL

RING, flywheel

1шт.

13

13-165

SPRING

pressure

1шт.

14

13-166

PIVOT

pressure spring

6шт.

15

13-164

BOLT

RETAINER, release sleeve

1шт.

16

13-52

OIL SEAL

RING, sleeve

1шт.

17

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

RING, snap

1шт.

18

13-162

PIN (on old style only)

6шт.

13-162 & 13-163 used to be available in kit #13-181 & stock may still exist.

1шт.

13-163

CLIP (on old style only)

3шт.

19

13-161

LEVER

(old style)

6шт.

If old style adj. ring is needed for service, always order new style plus 6 new style levers.

1шт.

1-4629

LEVER

(new style)

6шт.

20

13-15

DISC

SPRING

4шт.

21

13-153

LARGE PLATE

PRESSURE PLATE

1шт.

22

13-158

OIL SEAL

RING, adjusting (old style)

1шт.

If old style adj. ring is needed for service, always order new style plus 6 new style levers.

1шт.

23

31-93

FITTING

ZERK

1шт.

24

31-56

COUPLING

1шт.

25

22-95

GROMMET

1шт.

26

32-104

HOSE

grease

1шт.

27

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8" NC x 1"

8шт.

13-1002

KIT

ANTI-RATTLE SPRING KIT (not shown)

1шт.

Выбрано товаров: 39
