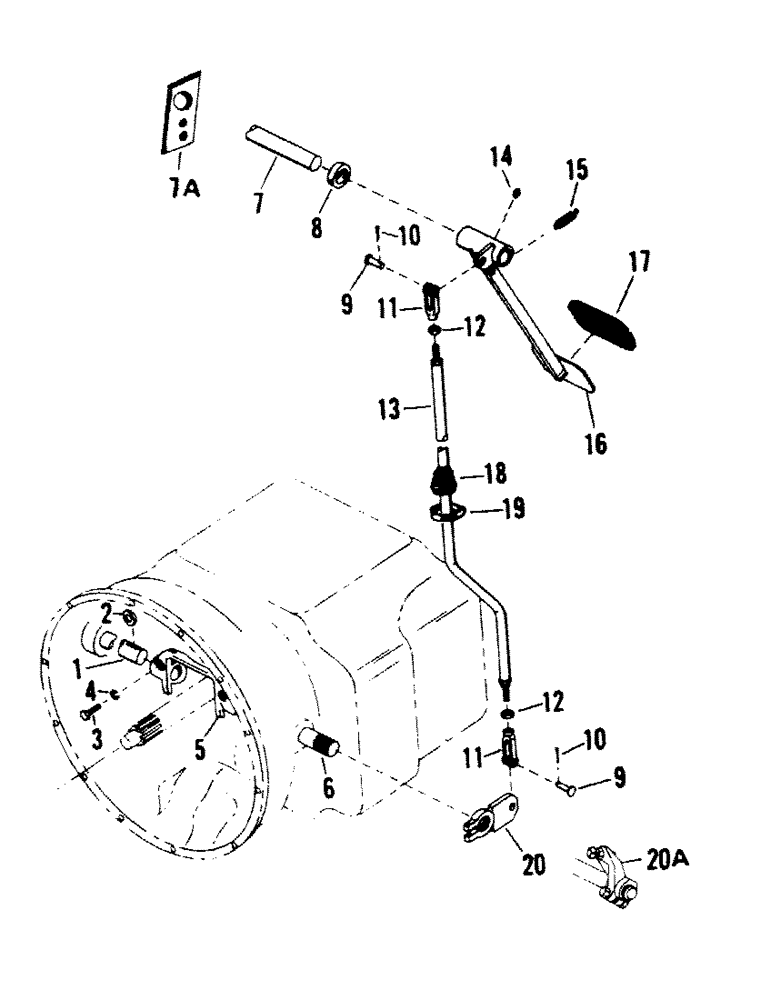

Запчасти Case IH STEIGER (04-07) - CLUTCH CONTROLS (04) - Drive Train

1

13-130

SHAFT

SHORT SHAFT

1шт.

2

13-129

WASHER

2шт.

3

19-348

SCREW

CAPSCREW

2шт.

4

19-118

LOCK WASHER,7/16"

7/16"

2шт.

5

13-79

YOKE

release

1шт.

6

13-131

SHAFT

long, 10"

1шт.

13-204

SHAFT

long, 9"

1шт.

1-2388

SHAFT, long, 11-1/2" (Series I)

1шт.

7

4-105

SHAFT

(Series I)

1шт.

4-326

ROD

SHAFT (Series II)

1шт.

7a

4-107

STOP

MOUNT, shaft (for 04-105)

2шт.

8

19-161

COLLAR

1шт.

9

19-142

CLEVIS PIN,1/2" x 1.36"

PIN, clevis

2шт.

10

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

11

19-137

CLEVIS

2шт.

12

19-93

NUT,1/2"-20, G5

1/2" NF

2шт.

13

5-143

ROD, clutch (early Series I w/push release clutch)

1шт.

5-362

ROD, clutch (Series I w/spicer clutch)

1шт.

4-438

ROD

clutch (Series II, all)

1шт.

14

31-95

FITTING

ZERK

1шт.

15

11-16

SPRING

2шт.

16

4-104

PEDAL, clutch (Series I)

1шт.

54-201

PEDAL

clutch (Series II) (54-142) (B)

1шт.

17

24-13

PROTECTION STRIP

PAD, pedal (use w/04-104 & 54-142)

1шт.

18

33-64

BOOT

rubber (Series II)

1шт.

19

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP (Series II)

1шт.

20

13-185

LEVER

clutch release (Series II)

1шт.

20a

13-132

LEVER

clutch release (Series I) (use w/05-170 release brkt. not shown)

1шт.
