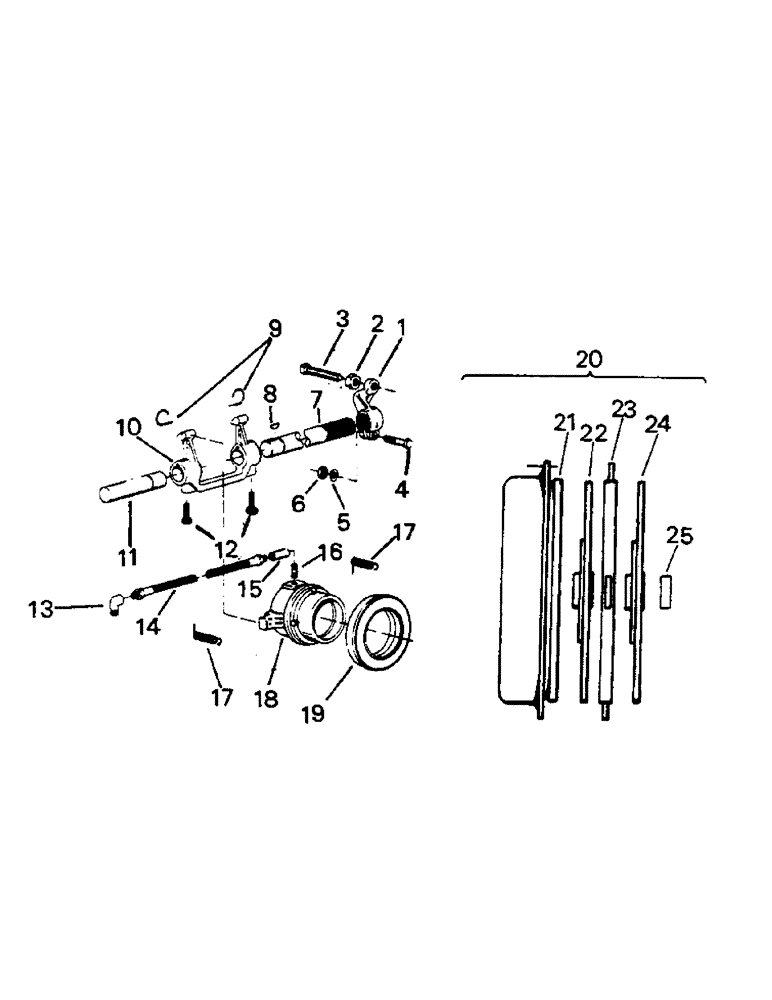

Запчасти Case IH STEIGER (04-06) - PUSH RELEASE CLUTCH & RELEASE PARTS (04) - Drive Train

13-132

LEVER

LEVER, clutch release, consists of ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ARM

1шт.

2

NS

NOT SERVICED

NUT, common hdwe.

1шт.

3

12-1169

SPARE PART SCREW, set, 1/2"

1шт.

4

12-1370

BOLT

CAPSCREW

1шт.

5

19-117

LOCK WASHER,3/8"

3/8"

1шт.

6

19-91

NUT,3/8"-24, G5

NUT, 3/8"

1шт.

7

12-1166

SPARE PART SHAFT, long

1шт.

8

12-1167

SPARE PART KEY

1шт.

9

12-1140

SPARE PART SPRINGS

2шт.

10

12-1136

SPARE PART YOKE

1шт.

11

12-1170

SPARE PART SHAFT, short

1шт.

12

12-1371

SPARE PART CAPSCREW, 3/8" NF x 1"

2шт.

13

31-207

ELBOW

ELBOW

1шт.

14

12-1148

HOSE

HOSE

1шт.

15

31-57

COUPLING

COUPLING, 1/8"

1шт.

16

12-1168

NIPPLE, LUBE

NIPPLE NIPPLE, 1/8" pipe

1шт.

17

12-1145

SPARE PART SPRING

2шт.

18

12-1139

HUB

CARRIER, release bearing

1шт.

19

12-182

BEARING

BEARING, clutch release

1шт.

20

13-136

NO LONGER SERVICED

CLUTCH/Retired CLUTCH ASSY., 13", WC & SWC 8347 and below

1шт.

Serial and breaks as shown in Ref. 20 indicate factory installation only. Many tractors have been field changed to the 14" Spicer clutch as shown on the following Figure, so be certain which is needed before ordering.

1шт.

13-137

SPARE PART CLUTCH ASSY., 14", BC 2049 and below

1шт.

Serial and breaks as shown in Ref. 20 indicate factory installation only. Many tractors have been field changed to the 14" Spicer clutch as shown on the following Figure, so be certain which is needed before ordering.

1шт.

1997780C2R

REMAN-CLUTCH PLATE

Remanufactured 14" Clutch Assembly

1шт.

1997780C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1997782C2R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Kit - 15 in., (pot style), 2 in. hub diameter, 4 paddle (Cougar/Tiger/Panther)

1шт.

1997782C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

21

13-3

CLUTCH PLATE

PLATE, LARGE PLATE, pressure, 13"

1шт.

13-11

SPARE PART PLATE, pressure, 14"

1шт.

22

13-16

DISC

DISC, rear, pressure plate side, 13"

1шт.

13-14

SPARE PART DISC, rear, pressure plate side, 14"

1шт.

23

13-4

LARGE PLATE

PLATE, LARGE PLATE, intermediate, 13"

1шт.

13-12

SPARE PART PLATE, intermediate, 14"

1шт.

24

13-15

DISC

DISC, front (flywheel side) 13"

1шт.

13-13

SPARE PART DISC, front (flywheel side) 14"

1шт.

25

13-10

BEARING, BALL

BEARING, pilot

1шт.
