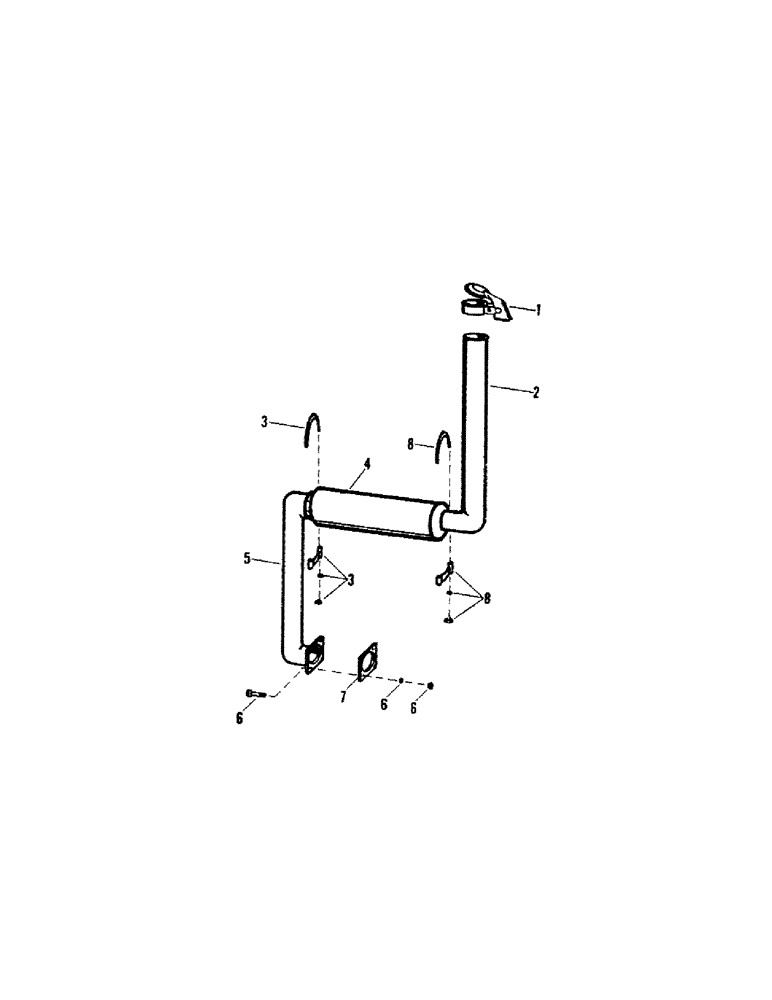

Запчасти Case IH STEIGER (04-04[1]) - WILDCAT, SUPER WILDCAT, BEARCAT I AND II, EXHAUST SYSTEM (04) - Drive Train

1

7-11

CAP, rain, exhaust system

1шт.

2

7-33

PIPE, EXHAUST SYSTEM

PIPE, exhaust, replaces two-piece assembly

1шт.

3

7-26

CLAMP

muffler, exhaust system

2шт.

4

7-12

MUFFLER

exhaust system

2шт.

5

5-230

PIPE

LH, exhaust system

1шт.

Some Series II tractors with 3208 engines have had different exhaust manifolds installed that have a round outlet requiring a V-Clamp, P/N 31-1038, rather the square flange shown here. These require different header pipes, Ref. 5, 01-9376T1, RH and 01-9375T1, LH. These 2 pipes and 2 clamps are also available in kit P/N 35-1164T91

1шт.

5-229

PIPE, RH, exhaust system

1шт.

Some Series II tractors with 3208 engines have had different exhaust manifolds installed that have a round outlet requiring a V-Clamp, P/N 31-1038, rather the square flange shown here. These require different header pipes, Ref. 5, 01-9376T1, RH and 01-9375T1, LH. These 2 pipes and 2 clamps are also available in kit P/N 35-1164T91

1шт.

6

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8" NC x 1-3/4", exhaust system

8шт.

19-117

LOCK WASHER,3/8"

exhaust system 3/8"

8шт.

19-78

SPECIAL NUT,3/8"-16, G5

3/8" NC, exhaust system

8шт.

7

7-21

GASKET

exhaust system

2шт.

8

7-22

CLAMP

exhaust system

2шт.
