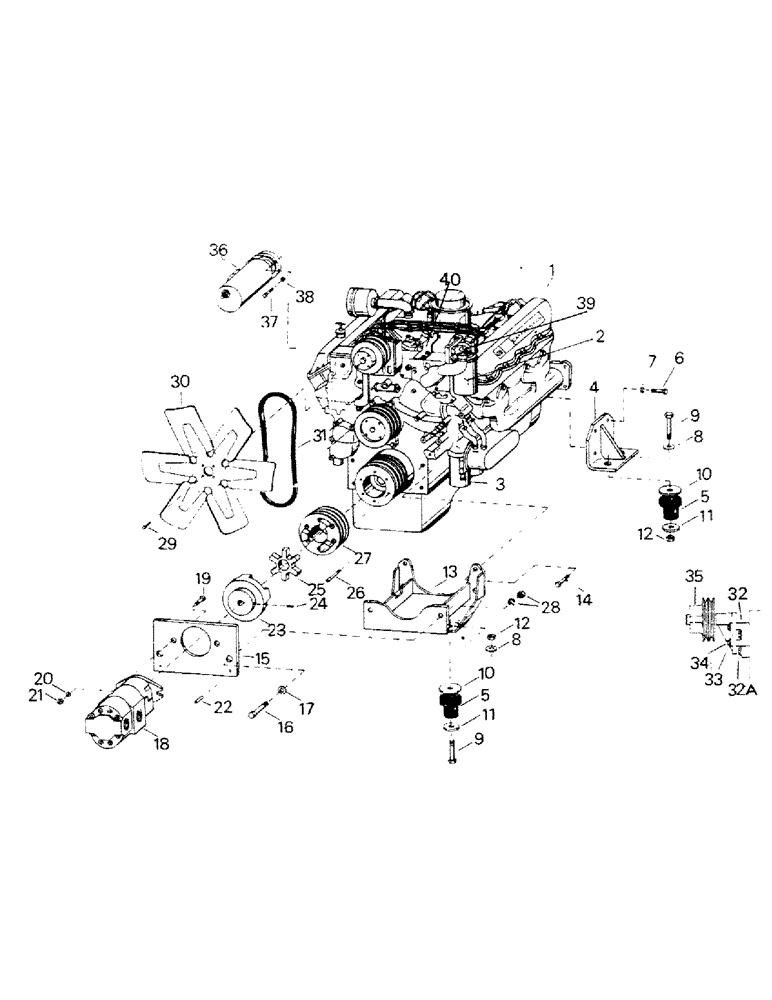

Запчасти Case IH STEIGER (04-01) - ENGINE AND ATTACHING PARTS (04) - Drive Train

1

ENGINE ASSY.

1шт.

2

28-5

FILTER

FUEL FILTER, 3100 engines

1шт.

2

28-25

ELEMENT

FUEL FILTER, 3208 engines

1шт.

3

28-6

FILTER, ENGINE OIL

OIL FILTER

2шт.

4

5-3

MOUNT, motor, use on tractors without rubber mount Series I

2шт.

5-379

MOUNT, motor, 3100 engines, use on tractors with rubber mount, Series II

1шт.

5-413

MOUNT, motor, 3208 engines, use on tractors with rubber mount, Series II

2шт.

5

6-1414

ANCHOR

MOUNT, rubber, use on tractors with rubber mount, Series II

4шт.

6

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8" NC x 1-1/2"

8шт.

7

19-120

LOCK WASHER,5/8"

5/8"

8шт.

8

19-111

WASHER,5/8"

4шт.

9

19-70

BOLT,Hex, 1" - 8 x 3", Gr 5

CAPSCREW, 1" NC x 3", rear, use on tractors without rubber mount, Series I

2шт.

19-278

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

CAPSCREW, 5/8" NC x 3-1/2", use on tractors with rubber mount, Series II

6шт.

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4" NC x 2-1/2", front, use on tractors without rubber mount, Series I

1шт.

10

51-128

WASHER

use on tractors with rubber mount, Series II

6шт.

11

19-408

WASHER

use on tractors with rubber mount, Series II

6шт.

12

231-4117

LOCK NUT,7/16"-14, GB

NUT, 1" NC, rear, used on tractors without rubber mount, Series I

2шт.

19-222

LOCK NUT,5/8" - 11, GB

NUT, 5/8" NC, use on tractors with rubber mount, Series II

6шт.

13a

5-13

ANCHOR

PUMP MT., fits WC and SWC Sn 8070 and below, approx., it has 2 mounting holes on bottom and the holes for mounting to the engine were countersunk

1шт.

13b

5-245

X

PUMP MT., used after 05-013 had 1 mount hole on bottom and countersunk mounting holes, may not be available as it can be replaced by 06-374 but need 4 of 19-048 mounting bolts

1шт.

13c

5-394

ANCHOR

PUMP MT., will fit all 3100 series engines after 05-013 as it will work for both rubber mount and solid mount as it has 3 holes on bottom, engine holes are not countersunk

1шт.

13d

5-393

PUMP MT. fits 3208 engine on Series II or any earlier tractor that is converted to a 3208

1шт.

14

19-241

SCREW,Flat Hd, Csk, 1/2" - 13 x 2 3/4", Gr 8

CAPSCREW, 1/2" NC x 2-3/4" flat hd. (use w/05-013), 05-245 & some early 05-394

4шт.

19-48

BOLT,Hex, 1/2" - 13 x 3", Gr 5

CAPSCREW, 1/2" NC x 3" (use w/05-394 & 05-393)

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE (is part of #13)

1шт.

16

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAPSCREW, 3/4" NC x 2-1/4"

2шт.

17

19-112

WASHER,3/4"

2шт.

18

PUMP, see hyd. section #8

1шт.

19

19-56

BOLT,9/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 9/16"NF x 1-3/4"

2шт.

20

19-710

WASHER

9/16"

2шт.

21

19-95

NUT,9/16"-18, G8

9/16" NF

2шт.

22

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

2шт.

23

5-384

COUPLING

COUPLER, pump

1шт.

24

19-27

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

25

70297C2

SPIDER ASSY.

SPIDER

1шт.

26

19-668

SCREW,12 Pt Flg, 3/8" - 16 x 2 1/2", Gr 8

CAPSCREW, 3/8" NC x 2-1/2", 12 pt hd

6шт.

27

5-14

PULLEY

FRONT PULLEY

1шт.

28

19-85

LOCK NUT

3/4" NC lock

2шт.

19-121

LOCK WASHER,3/4"

3/4"

2шт.

29

19-532

BOLT,Hex, 5/16" - 18 x 1.25", Gr 8

CAPSCREW, 5/16" NC x 1-1/4" gr. 8

4шт.

30

6-1429

FAN

6 blade

1шт.

FAN, 4 blade (cat.#2N2363)

1шт.

31

6-19

SET OF BELTS,0.50" W x 53.00" L

V-Belt, Fan 0.50" W x 53.00" L

1шт.

32

5-4

BLOCK, fan hub, 3160

1шт.

6-1435

BLOCK, fan hub, 3208

1шт.

32a

19-529

CAPSCREW, 7/16" x 1-1/2" NC gr. 8 Hex, 7/8"-9 x 1 1/2", G5

2шт.

19-118

LOCK WASHER,7/16"

7/16"

2шт.

33

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8" NC x 1-1/4" gr. 8

4шт.

34

19-177

LOCKWASHER 1 3/8"-12, G5

4шт.

35

FAN HUB (Cat. #3N2400)

1шт.

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

ADJ. SCREW (on top of 35, not shown)

1шт.

36

22-1147

STARTER MOTOR

STARTER

1шт.

37

19-925

SCREW,12 pt Flg Hd, 5/8"-11 x 1 3/4", G8

CAPSCREW

3шт.

38

19-912

WASHER

3шт.

39

6-1583

ADAPTER ON TOP OF FUEL FILTER, for fuel pressure gauge hookup on 3100 series engine only.

1шт.

40

4-455

BRACKET, throttle cable

1шт.
