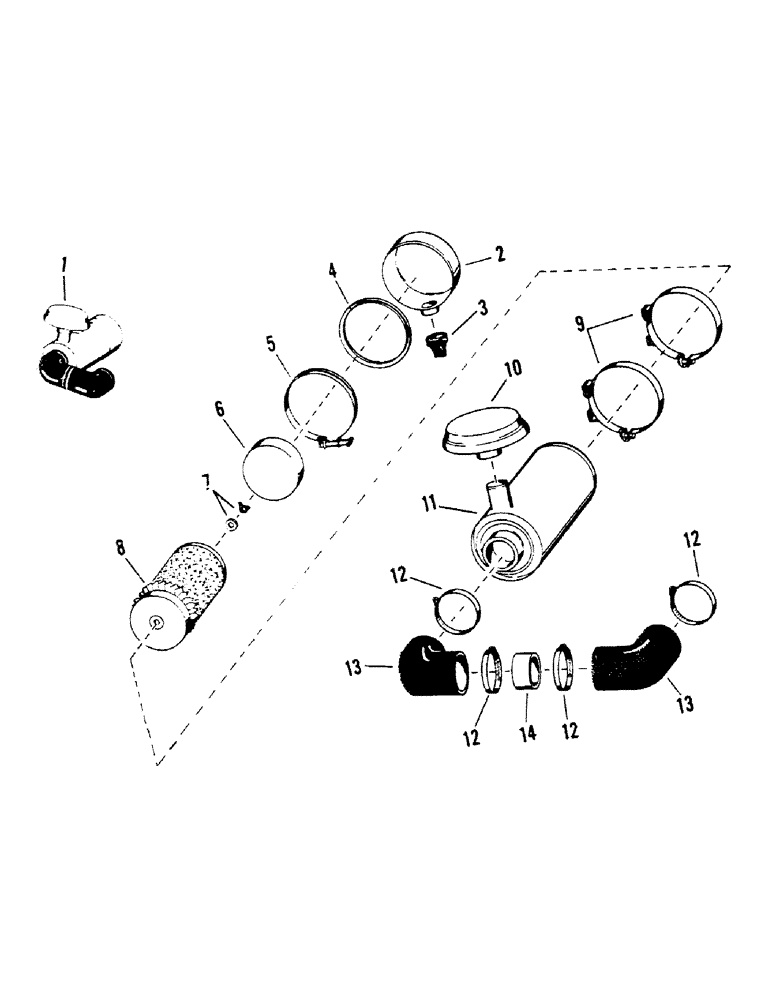

Запчасти Case IH STEIGER (03-09) - CAB AIR CLEANER SERIES I (03) - Climate Control

1

35-20

AIR CLEANER

KIT (includes all Refs.)

1шт.

9-57

AIR CLEANER

ASSEMBLY (Ref. 2-8, 11)

1шт.

2

9-84

CUP

1шт.

3

9-85

VALVE

1шт.

4

9-82

O-RING

SEAL

1шт.

5

9-81

COLLAR CLAMP

CLAMP ASSEMBLY

1шт.

6

9-83

BAFFLE

1шт.

7

9-35

NUT

WING NUT (with gasket)

1шт.

8

9-60

ELEMENT

1шт.

9

9-58

BAND

BRACKET, mounting

2шт.

10

9-59

HOOD

CAP

1шт.

11

9-104

HOUSING, cleaner

1шт.

12

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

hose

4шт.

13

9-4

ELBOW

90deg., 5" rubber

2шт.

14

54-88

TUBE

connecting

1шт.

4-300

FILTER

WELD IN ADAPTER (not shown) (Part of 35-020 kit, needed to fill in opening for panel filter when kit is installed)

1шт.
