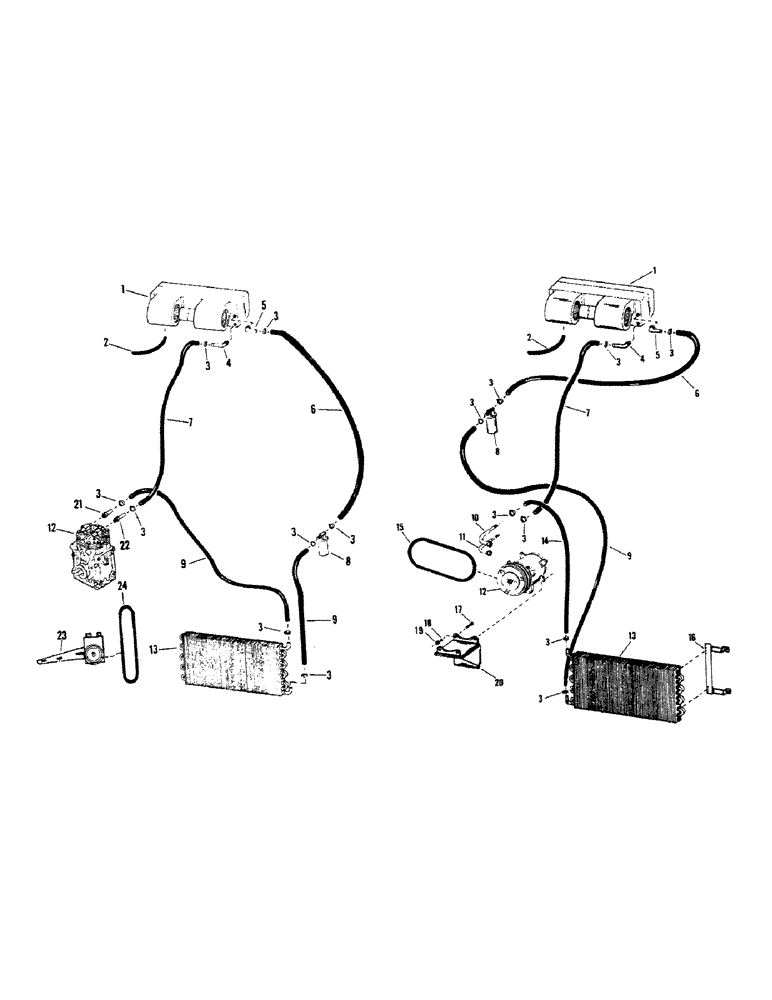

Запчасти Case IH STEIGER (03-01) - AIR CONDITIONING GROUPS - SERIES I (03) - Climate Control

1

25-18

EVAPORATOR

1шт.

2

25-169

HOSE, drain

1шт.

3

32-161

COLLAR CLAMP

CLAMP, hose

8шт.

4

25-47

FITTING

ADAPTER, 90 deg. male

1шт.

5

25-33

ADAPTER, 90 deg. female

1шт.

6

25-165

NUT,5/16"-18, G5, Hvy

HOSE, #10 x 192"

1шт.

7

25-167

HOSE, #6 x 192"

1шт.

8

25-22

TANK

DRIER, receiver

1шт.

9

25-166

NUT,3/8"-16, G5, Hvy

HOSE, #8 x 38"

1шт.

10

25-129

ADAPTER, 90 deg. female

1шт.

11

25-25

FITTING

ADAPTER, 90 deg. female

1шт.

12

COMPRESSORS (see figures 3-3, 3-5 & 3-6)

1шт.

13

25-21

CONDENSER

1шт.

14

25-163

HOSE, #8 x 77"

1шт.

15

6-1428

V-BELT,0.53" W x 46.00" L

Set 0.53" W x 46.00" L

1шт.

16

5-184

BRACKET, condenser

2шт.

17

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8" NC x 1-12"

4шт.

18

19-117

LOCK WASHER,3/8"

3/8"

4шт.

19

19-78

SPECIAL NUT,3/8"-16, G5

3/8" NC

4шт.

20

NAP

MOUNT (Service w/06-1472, shown on following figure)

1шт.

21

25-32

FITTING

ADAPTER, st. female

1шт.

22

25-24

ADAPTER, st. female

1шт.

23

5-29

MOUNT, compressor

1шт.

24

6-24

V-BELT,61.00" L

Set 61.00" L

1шт.
