Запчасти Case IH STEIGER (10-06) - ADJUSTING ARM & LINK ASSEMBLIES - 3-PT. HITCH, ADJ. ARM ASSEMBLIES Options & Miscellaneous

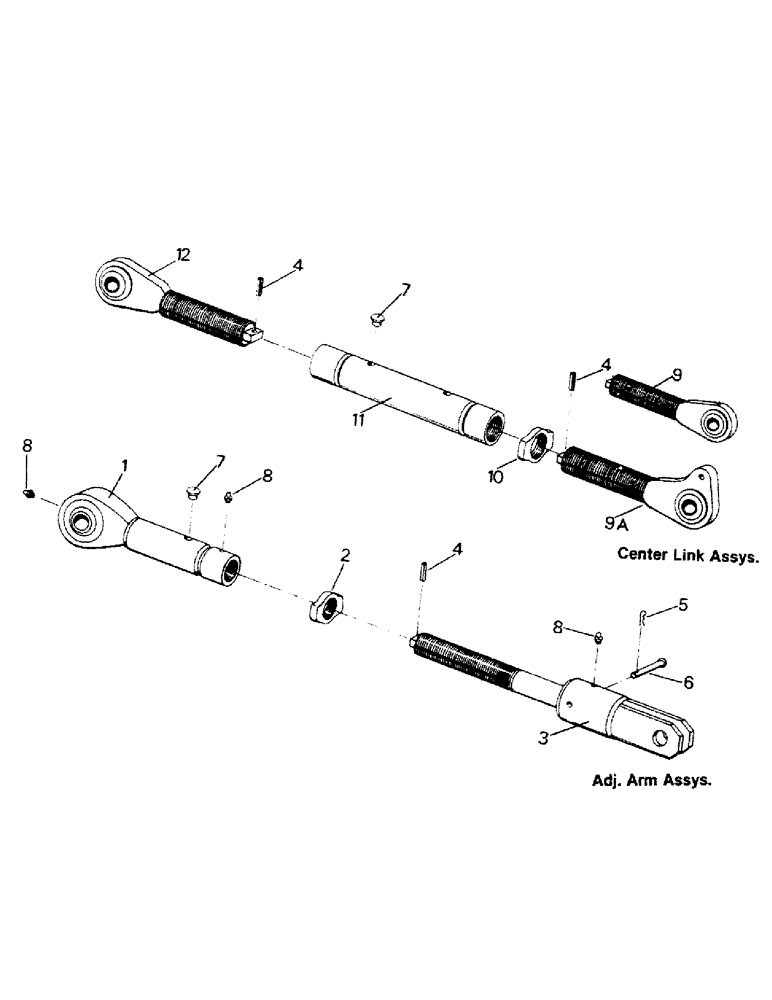

Схема запчастей Case IH STEIGER - (10-06) - ADJUSTING ARM & LINK ASSEMBLIES - 3-PT. HITCH, ADJ. ARM ASSEMBLIES Options & Miscellaneous
9
11
9a
5
8
7
10
2
1
6
3
4
8
4
4
8
7
12

Артикул

Название

Примечание

Количество

40-373T91

ARM ASSY.

ADJ. ARM ASSY. (repl. 40-373 & 40-165) (B), consists of ref. nos. 1-8

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

40-165

ADJ. ARM ASSY. (early Series I only)

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

1

40-372

ARM

upper

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

40-223

ARM, upper

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

2

40-109

LOCK NUT

RH

1шт.

3

40-375T1

ARM ASSY.

ARM, lower

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

40-165

ARM, lower

1шт.

Adjusting arms can be identified by the length of the clevis on Ref. 3. On 40-165 it is 6-3/4" white it is 8-3/4" on 40-373T91. A new HD center link is available, 70-1829T91, that will replace 40-220 or 40-513. It was never used on Series I & II but can be identified by its heavier ends which have a 3" radius from center of the uniball as opposed to 2-1/2" on the standard. The service parts for this link are designated by the letter "B". B: Superseded - Old P/N can be used for all models, but order new P

1шт.

4

19-786

PIN

spring (19-175) (B)

1шт.

5

19-358

PIN

HAIR PIN

1шт.

6

40-322

PIN

FLOAT PIN (40-178) (B)

1шт.

7

18-1292

PLUG

plastic

1шт.

7b

1-9116

CAP,Cap, .366" OD

PLUG, plastic (on hd center link)

1шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

40-220

LOCK NUT

CENTER LINK (w/#9), assembly

1шт.

A heavy duty bearing kit #35-1101 is available & has been used to upgrade the earlier axles to heavier outboard bearings & are shown as 22C & 23C. Be sure to check bearing numbers (shown in parentheses behind 22 & 23) to assure getting the correct ones.

1шт.

a

40-513

LINK

CENTER LINK (w/#9A), assembly

1шт.

b

70-1829T91

UPPER LINK

CENTER LINK (heavy duty), assembly

1шт.

A heavy duty bearing kit #35-1101 is available & has been used to upgrade the earlier axles to heavier outboard bearings & are shown as 22C & 23C. Be sure to check bearing numbers (shown in parentheses behind 22 & 23) to assure getting the correct ones.

1шт.

9

40-112

LINK

LH (service w/40-514), center assembly

1шт.

9a

40-514

LINK

LH, center assembly

1шт.

9b

70-1831T1

SOCKET

LINK, LH (hd), center assembly

1шт.

10

40-108

LOCK NUT

center link assembly

1шт.

10b

2-3651T1

LOCK NUT

(hd), center link assembly

1шт.

11

40-219

LINK

TURNBUCKLE, center assembly

1шт.

11b

70-1823T1

TURNBUCKLE (hd), center link assembly

1шт.

12

40-113

LINK

RH, center assembly

1шт.

12b

70-1830T1

SOCKET

LINK, RH (hd), center assembly

1шт.
