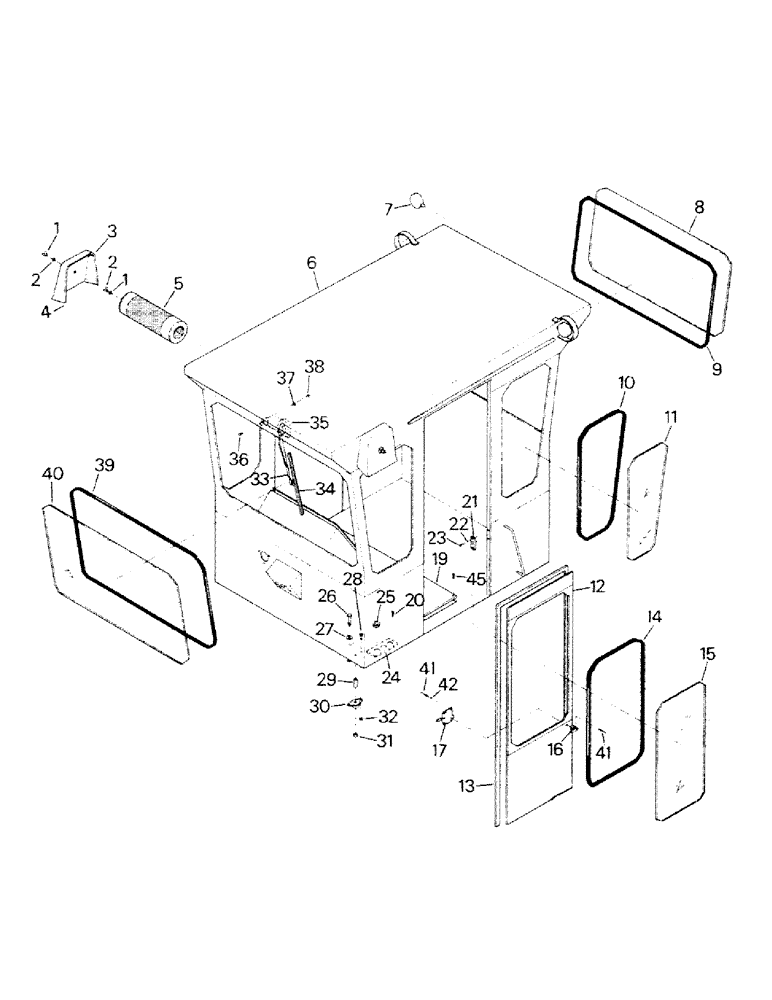

Запчасти Case IH STEIGER (01-02) - CAB ASSEMBLY, LATE SERIES I & ALL SERIES II (10) - CAB

1

19-340

NUT

WING NUT, 1/2 UNC

4шт.

2

19-109

WASHER,1/2"

1/2

4шт.

3

4-479

DUCT

AIR SCOOP

2шт.

4

26-25/8

MOLDING

2шт.

5

64-84

AIR CLEANER

FILTER

2шт.

6

4-393

CAB SHELL

1шт.

7

22-107

LAMP

WARNING LIGHT

2шт.

8

24-129

GLASS

rear

1шт.

9

4-294

MOLDING

MOULDING, rear

1шт.

10

4-295

PROFILE

MOULDING, side

4шт.

11

24-127

GLASS

side

4шт.

12

4-406

DOOR

RIGHT DOOR

1шт.

4-407

DOOR

LEFT DOOR

1шт.

13

4-465

SEALING STRIP

WEATHER STRIPPING

2шт.

14

4-296

MOLDING

MOULDING, door window

2шт.

15

24-128

GLASS

door

2шт.

16

24-6

HANDLE

door

2шт.

17

24-44

LOCK

LATCH, right hand

1шт.

24-45

LATCH

left hand

1шт.

18

19-267

SELF-TAP SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

SCREW

6шт.

19

4-366

FLOOR BOARD

1шт.

20

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, self-tap 1/4 x 3/4

4шт.

21

4-427

STOP

DOOR STOP

2шт.

22

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER, 1/4

4шт.

23

19-200

X

SCREW, self-tap 1/4 x 3/4

4шт.

24

4-391

PLATE, hose

2шт.

25

64-104

GROMMET,1" ID x 1 3/8" Groove Dia

1"

6шт.

26

19-325

BOLT,Hex, 3/4" - 10 x 4", Gr 8

CAPSCREW, 3/4 x 4 UNC

4шт.

27

19-326

WASHER

3/4

4шт.

28

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW

8шт.

29

4-265

SPACER

isolator

4шт.

30

64-215

INSULATOR

ISOLATOR

4шт.

31

19-5364

NUT

3/4 UNC

4шт.

32

19-82

LOCK NUT

1/2 UNC

8шт.

33

64-91

ARM

WIPER ARM

1шт.

34

64-92

HALF BLADE

WIPER BLADE

1шт.

35

24-22

MOTOR

WIPER MOTOR

1шт.

36

19-307

SCREW,Hex, #10 - 32 x 1/2", Gr 2

#10 x 1/2 UNF

1шт.

37

19-297

LOCK WASHER,#10

#10

1шт.

38

19-308

NUT,#10 - 32

#10 UNF

1шт.

39

4-297

PROFILE

MOULDING, front

1шт.

40

24-130

GLASS

front

1шт.

41

19-127

RIVET

12шт.

42

19-412

BURR, riveting

12шт.
